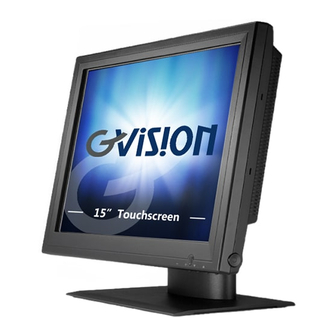

GVision P15BX-A Specifications

1 5 " T F T L C D M o n i t o r
POS Application
W h e r e V e r s a t i l i t y
Configuration
LCD Display
Pixel Pitch
Max. Resolution
Contrast Ratio
Brightness
Response Time ( Tr+ Tf )
Display Color
Effective Display Area
Viewing Angle (CR 5)
Backlight
Lamp Life (hr)
Stand Base
Input Signals
Signal connector Analog
Digital
Scan Frequency
Audio Systems
USB HUB
Touch Panel
Key Control
Operating Condition Temperature
Humidity
Altitude
Storage Condition Temperature
Humidity
Power Adaptor
Power Consumption
Dimensions(WxHxD)
Carton Dimensions (WxHxD)
Weight (Net)
Certification
* Specifications are subject to change without notice.
90
o
-5
o
30
Support Angle Adjustment -5
GViSiON USA, INC. phone: 949-586-3338 / fax: 949-586-3398 / www.gvision-usa.com GViSiON USA, INC. phone: 949-586-3338 / fax: 949-586-3398 / www.gvision-usa.com
M e e t s
P15BX series
15" TFT active matrix panel
0.297(H) x 0.297 (V) mm
XGA 1024 x 768
500:1 (typical)
2
250 Cd/m (typical)
16 ms (typical)
16.2M
304.1(H) x 228.1(V)
o o
150 (H) x 125 (V)
CCFL x 2
30,000 (minimum)
o
Tilt down: -5 , Tilt up: +90
Analogue VGA
D-Sub 15 pin (VGA)
DVI-D
60/70/72/75 Hz
1W/per channel driver
A type x 2, B type x 1 (optional)
RS232
or USB A type (optional)
Power on/off with LED, Menu,
Select, Adjustment (+, - )
o o o o
5 C-35 C (41 F-95 F)
20%-80% (no condensation)
To 10,000 feet
o o o o
-20 C-60 C ( -4 F-140 F )
10%-90% ( no condensation )
Univesal power adaptor
input AC 100~240V, 50~60Hz:
Output DC12V /4A
48W
351 x 314.5 x 140 mm
458 x 440 x 216 mm
4.5kg
UL, FCC, CE

Mechanical drawing

Unit : mm
o
0 0
~+90
F l e x i b i l i t y
Features
* Fashionable housing design with slim bezel
* High contrast color TFT LCD open frame display support
resolution up to XGA 1024x768. Compatible with IBM
VGA, VESA standards
* Support DDC1/2B for Plug & Play compatibility
* Advanced OSD control for picture quality adjustment
* Stable aluminum stand base supports angle
adjustment -5
o
* Built-in power adaptor and cable management Stand
Base Design
* VESA mounting

Optional Accessories

* GTouch sensor
* Customized touch solutions acceptable
* Anti-Glare tempered glass
* USB HUB with 2 downstream ports and 1 upstream port
Order Information
* P15PX-AA VGA only
* P15PX-AB VGA+DVI
I/O Ports
Front Side
P15BX
0 ~ +90 0
Back Side
series
