Hoshizaki HRFE-77B-CHD Instruction Manual

COMMERCIAL REFRIGERATOR/FREEZER
HRFE-77B-CHD
INSTRUCTION MANUAL
● This manual is an integral and essential part of the product and should be kept and preserved by
the user.
● Please read carefully the guidelines and warnings contained herein and in the standard model's
instruction and installation manuals as they are intended to provide the installer/user with
essential information for the proper installation and the continued safe use and maintenance of
the product.
● Please preserve this manual for any further consultation that may be necessary.
● This manual only provides information that is different from HRE and HFE types.

1. ACCESSORIES

Instruction Manual
Installation Manual
Shelf
Shelf Clip
Shelf Holder
Drain Hose Assy

2. CABINET TEMPERATURE SETTING

Pressing the temperature control button (downward) will not speed up refrigeration, but will only
lower the temperature setting.
The temperature range given below is only the adjustable range. The actual cabinet temperature
depends on the ambient temperature and other conditions.
The cabinet temperature is factory-adjusted to 3°C for the refrigerator and -18°C for the freezer. If
necessary, readjust the temperature as follows:
1) Open the front panel.
2) Press the set point button for the refrigerator or
freezer to display the current set point temperature.
3) Press and hold the set point button, and push the
temperature control button until the temperature
display window shows the desired temperature.
The cabinet temperature is adjustable between
-6°C and 12°C for the refrigerator and between
-25°C and -7°C for the freezer.
4) The displayed cabinet temperature is adjusted to be
almost equal to the temperature at the center of the
cabinet without foods. But it can be different from
the actual temperature depending on arrangement
of stored foods, frequency of door opening or
measuring points.
2 pcs
1 pc
4 pcs
8 pcs
8 pcs
2 pcs

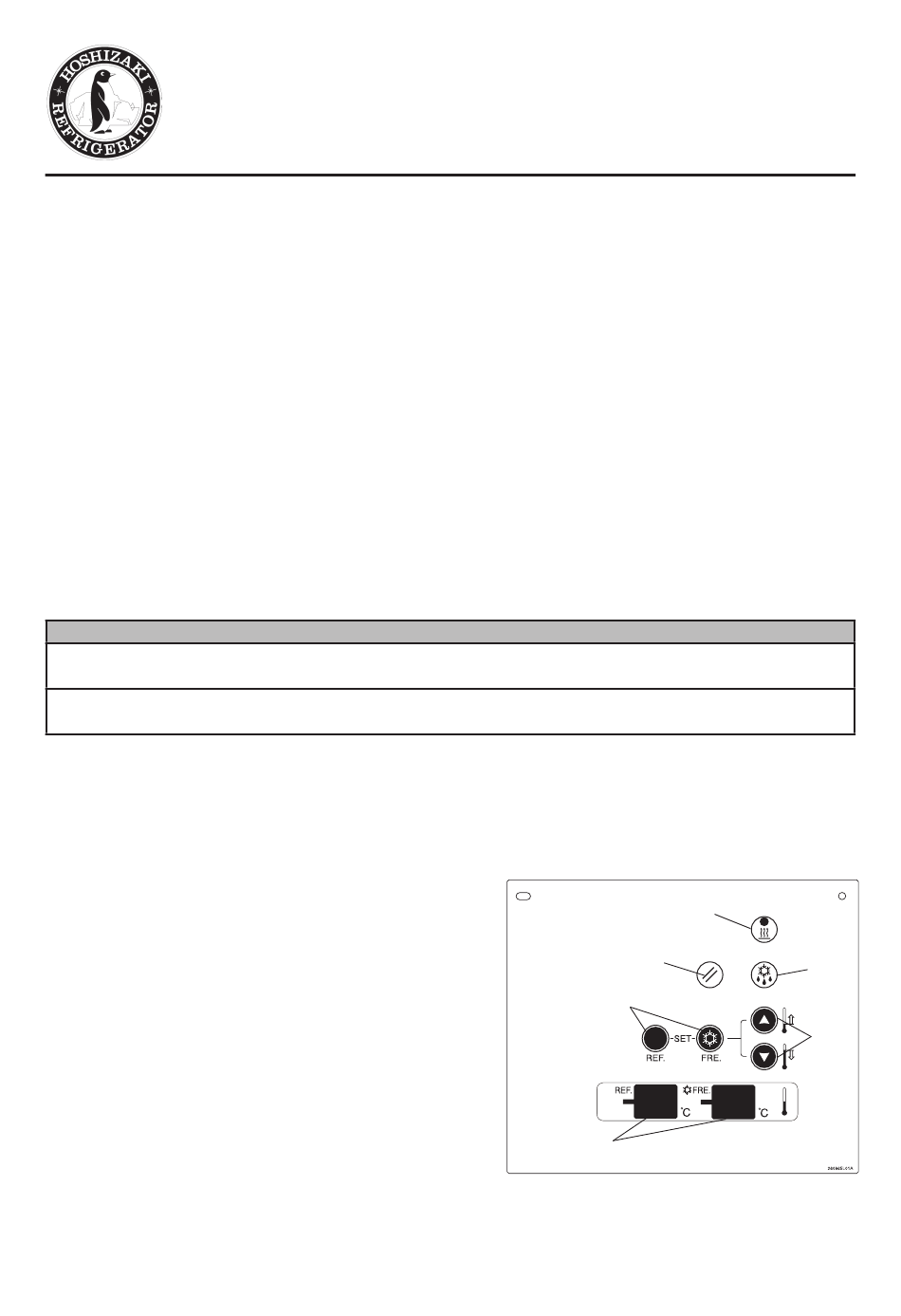

IMPORTANT
Frame Heater
Button
Reset Button
Set Point Button
Temperature
Display Window
L1R271301 (120111)
Manual Defrost
Button
Temperature
Control Button
