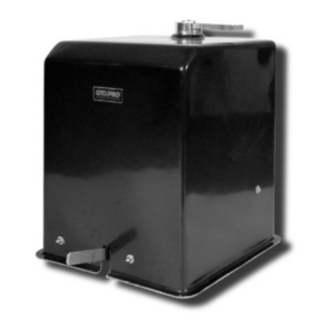

INSTALLATION INSTRUCTIONS FOR
GTO/PRO SW-5000 and GTO/PRO SW-6000
• READ ALL INSTRUCTIONS COMPLETELY before attempting
installation and use; failure to do so may result in serious injury or death!
• This unit must only be installed by an experienced technician!
• DANGER: HIGH VOLTAGE! Contact with gate operator circuitry
can cause serious injury or death! Operator power must be
disconnected before servicing!
• This gate operator produces a high level of force. Stay clear of the unit
while it is operating and exercise caution at all times.
This product meets and exceeds the requirements of UL 325, the standard which regulates gate operator safety,
as established and made effective March 1, 2000, by Underwriters Laboratories Inc.
Telephone (800) 543-GATE or (850) 575-0176 • Fax (850) 575-8912 • www.gtoinc.com
AC Powered Swing Gate Operators
WARNING!
DO NOT Install This Operator Without Safety Edges!
3121 Hartsfield Road • Tallahassee, Florida 32303
© 2000 GTO, Inc.
US
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for GTO SW-5000
Summary of Contents for GTO SW-5000
- Page 1 INSTALLATION INSTRUCTIONS FOR GTO/PRO SW-5000 and GTO/PRO SW-6000 AC Powered Swing Gate Operators • READ ALL INSTRUCTIONS COMPLETELY before attempting installation and use; failure to do so may result in serious injury or death! • This unit must only be installed by an experienced technician! •...
- Page 2 The GTO/PRO SW-5000 and SW-6000 automatic swing gate operators are intended for use with vehicular gates. The operators can be used in Class I, II, III, and IV applications. VEHICULAR GATE OPERATOR CLASS CATEGORIES Residential Vehicular Gate Operator-Class I: A vehicular gate operator (or system) intended for use in a home of one-to-four single family dwelling, or a garage or parking area associated therewith.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Gate Operator Class Categories ...Inside Cover Metric Conversion Chart ...Inside Cover Safety Instructions for the GTO/PRO-SW-5000 and GTO/PRO SW-6000 Swing Gate Operators ... 1 GTO Foot Pedal Release ... 1 Important Safety Instructions for the System Designer ... 2 Important Safety Instructions for the Installer ... -
Page 4: Safety Instructions For The Gto/Pro-Sw-5000 And Gto/Pro Sw-6000 Swing Gate Operators
Because GTO automatic gate operators are only part of a total gate operating system, it is the responsibility of the designer, installer, and purchaser to ensure the total system is safe for its intended use. Bypassing safety devices or neglecting to use safety devices with the gate operator is NOT acceptable. -
Page 5: Important Safety Instructions For The System Designer
Review the operation of the system to become familiar with its safety features. Understand how to disengage and re-engage the operator foot pedal release (see GTO Foot Pedal Release on page 1). This gate operator is intended for vehicular gates ONLY. A separate entrance or gate must be installed for pedestrian use (see page 6). - Page 6 III. After Installation Review ALL safety instructions with the consumer/end user and explain the basic operation and safety systems of the entire gate operator system, including operation of the foot pedal release. Inform the consumer/end user that servicing of the operator must only be done by an experienced technician. Attach the warning signs (included) to each side of the gate to alert public of automatic gate operation.
-
Page 7: Important Safety Instructions Specific To Secondary Means Of Protection Against Entrapment
GTO gate operators utilize Type A, an inherent entrapment sensing system, as the primary type of entrapment protection. The GTO/PRO SW-5000 and GTO/PRO SW-6000 operators have provisions for the connection of Type B1, B2, or D protection to be used as the secondary type of entrapment protection. -
Page 8: Important Safety Instructions For The Consumer/End User
To operate this equipment safely, YOU must receive detailed instructions on the operation of the foot pedal release (see GTO Foot Pedal Release on page 1). If you feel you have not received full and proper instructions, contact your installer. -
Page 9: Required Safety Precautions For Gates
For this reason, safety devices such as safety edges MUST be installed. Furthermore, a walk-through gate must be installed if pedestrian traffic is expected near the gate. We recommend the GTO Bulldog Pedestrian Gate Lock (available as an accessory) for controlled access. -
Page 10: Warning Labels
Warning Labels These warning labels should be found at the locations specified below. If any of them are missing, immediately contact your installer for replacements. WARNING Moving Gate Can Cause Injury Or Death 1. KEEP CLEAR! Gate may move at any time. 2. -
Page 11: Technical Specifications
•Oil temperature range: –22 °F to 806 °F (–30 °C to 430 °C). Power •GTO/PRO SW-5000: 115 Vac, 60 Hz, 5 A; GTO/PRO SW-6000: 115 Vac, 60 Hz, 9.8 A. •Requires copper conductors. •Must be installed by an electrician in accordance to NEC (National Electric Code) and local codes. -
Page 12: Parts Identification
PARTS IDENTIFICATION GTO/PRO SW-5000 and GTO/PRO SW-6000 AC Powered Swing Gate Operators ® AUTOMATIC GATE OPERATORS WARNING Moving Gate Can Cause Injury Or Death Conforms to UL 325 STANDARDS Manual Operatio n of Gate or close the gate, To manually open... - Page 13 Parts Identification GTO/PRO SW-5000 and GTO/PRO SW-6000 AC Powered Swing Gate Operators Control Box ON / OFF Switch 115 Vac dual GFCI outlet Foot Pedal Release Housing Standoffs Stop Bracket ...continued Exploded View Spline Release Fork Operator Frame Knuckle Cover...
-
Page 14: Installing The Gate Operator
INSTALLING THE GATE OPERATOR THIS UNIT MUST ONLY BE INSTALLED BY AN EXPERIENCED TECHNICIAN. Preparation of the Gate Before installing the GTO/PRO swing gate operator, make sure: • the gate is properly installed. • the gate is plumb, level, and moves freely. -
Page 15: Using The Mounting Template
Using the Mounting Template The mounting template (see insert) is designed to simplify mounting the operator. It provides the installer with the proper locations for running power and accessory wiring conduits. The template is also marked with the correct distance between the operator mounting holes and shows the installer how to position the operator for the correct clearance between the housing and the gate. -
Page 16: Mounting The Operator
Square Column Housing Pivot point of operator Opened Gate Round Column Housing Pivot point of operator Opened Gate Mounting the Operator Lift the operator and align its mounting holes over the operator into position and fasten it to the mounting anchors with (4) Reattach the upper spline to the output shaft of the gear reducer. -
Page 17: Connecting The Gate Arm Assembly
Connecting the Gate Arm Assembly 1. Fit the end of the reducer arm on the end of the upper spline (see illustration at right). Align the bolt holes of the parts and join them with (1) ” bolt. 2. Fit the ends of the reducer arm, stop bracket and gate together (see... -
Page 18: Adjusting The Limit Switches
ADJUSTING THE LIMIT SWITCHES The limit switches determine how far the gate travels to open and close. The closer the limit nut is to the limit switch, the less distance the gate will travel to open or close. Adjust the limit switches by moving the limit nuts. MAKE SURE THE OPERATOR POWER IS OFF BEFORE ATTEMPTING TO ADJUST THE LIMIT SWITCHES. -
Page 19: Gate Operator Control Board
GATE OPERATOR CONTROL BOARD CLS. SENS. OPN. SENS. INERTIA CLOSE TIMER GTO Inc., Tallahassee, FL copyright 1999 Diagnostic LEDs PWR OK TIMER ON OBSTRUCT MAX TIME SENSOR ERR. LIM SW ERR. OPEN MTR. INTERN.ERR. 1/2 amp slow blow fuse REV FWD... -
Page 20: Control Board Settings
CONTROL BOARD SETTINGS THESE SETTINGS SHOULD BE ADJUSTED ONLY BY AN EXPERIENCED INSTALLER OR TECHNICIAN! RST/LEARN: 1) Use to set transmitter code in control board memory. 2) Press this button to clear the diagnostic and error LEDs. DIP switches (To change these settings, you must turn power OFF; move the switch;... - Page 21 DUAL GATE INTERFACE RX TX: allows the addition of a second gate operator for dual gate systems (see Installing a Dual System on pages 22-23). GTO RCVR: Terminal block reserved for a GTO receiver ONLY. Other receivers may be connected to the 24 VDC terminal block (see CAUTION at 24VDC below).
-
Page 22: Setting Your Personal Transmitter Code
SETTING A PERSONAL TRANSMITTER CODE All GTO transmitters are set to a standard code at the factory and are ready to operate the GTO/PRO SW-5000 & GTO/PRO SW-6000 series operators. For safety and security, however, we strongly recommend that the factory setting be replaced with a personal code. -
Page 23: Installing Safety Covers On The Operator
Furthermore, the installer must take reasonable precautions when installing a gate operator to prevent this type of injury (UL 325; 51.8.4 [a], [3]). GTO requires safety covers to be installed over the “pinch points” of the gate operator. In particular, the upper and lower splines, the knuckle joint of the gate arm assembly, and the operator itself must be covered. -
Page 24: Compatible Safety Devices
Although GTO strongly recommends the use of safety devices, we do not endorse any specific brand names. Below is a list of some products compatable with GTO operators systems, some of which require their own power supply. Check with the individual manufacturer for specific power needs. -
Page 25: Installing A Dual Gate Operator System
Setting Dual Gate Sequence SW-5000 and SW-6000 operators come from the factory with the Sequence 1 and 2 DIP switches set to OFF, for single gate operation. DIP Switches must be changes to accommodate dual gate operation. The chart below shows the various combinations to suite your specific application. - Page 26 Master Control Board (MAST) – DUAL GATE INTER- – FACE RCVR. Set DIP Switches for Swing Gates ST / LEARN SWNG/SLD MAST/SLV GATE R/L SEQUENC 1 SEQUENCE 2 TMR. OFF/ON EDGE 6 EDGE 5 The DUAL GATE INTERFACE RX TX terminal requires 22 AWG direct burial wire manufactured by Belden Inc.
-
Page 28: Maintenance
Check the obstruction settings (in both open and close modes). Check for wear on all moving parts, and tighten bolts as necessary. Check the gear box for any sign of oil leakage. If the gearbox is leaking, call the GTO Service Department for assistance. DO NOT ADD OIL! Check hinges on the gate and lubricate if needed. -
Page 29: Trouble Shooting Guide
Install fresh batteries in the transmitter. If problem persists, the receiver may be damaged. Call the GTO Service Department. C. Disconnect the accessories from the control board and jumper the CYCLE terminal. If the unit operates;... -
Page 30: Warranty And Repair Service
NOTE: Verification of the warranty period requires copies of receipts or other proof of purchase. Please retain these records. After the warranty period, GTO or one of its authorized service centers will make any necessary repairs for a nominal fee. Call GTO at (850) 575-0176 for more information. -
Page 31: Installation Check List
___ Customer was instructed about proper use of transmitter and (or) other entry controls. ___ Customer was asked to fill out customer support card and mail it to GTO, Inc. ___ Customer was asked to retain all receipts (receipts provide proof of warranty).
