Installation Manual
for installing the GTO/PRO SW-3200 with the
GTO/PRO SW-3000 in a dual application
FOR PROFESSIONAL INSTALLATION ONLY!
This equipment is similar to other gate or door equipment and meets or exceeds
Underwriters Laboratory Standard 325 (UL 325). However, gate equipment has
hazards associated with its use and therefore by installing this product the installer
and user accept full responsibility for following and noting the installation and
safety instructions. Failure to follow installation and safety instructions can result
in hazards developing due to improper assembly. You agree to properly install this
product and that if you fail to do so GTO, Inc. shall in no event be liable for direct,
indirect, incidental, special or consequential damages or loss of profits whether
based in contract tort or any other legal theory during the course of the warranty
or at any time thereafter. The installer and/or user agree to assume responsibility
for all liability and use of this product releasing GTO, Inc. from any and all
liability. If you are not in agreement with this disclaimer or do not feel capable
of properly following all installation and safety instructions you may return this
product for full replacement value.
READ ALL INSTRUCTIONS CAREFULLY AND COMPLETELY before
attempting to install and use this automatic gate operator. This gate operator
produces a high level of force. Stay clear of the unit while it is operating and
exercise caution at all times.
All automatic gate operators are intended for use on vehicular gates only.
This product meets and exceeds the requirements of UL 325, the standard which regulates gate operator safety, as
established and made effective March 1, 2000, by Underwriters Laboratories Inc.
Telephone GTO Sales: 1-800-543-GATE (4283) or (850) 575-0176 • Fax (850) 580-8816
or GTO Technical Service: 1-800-543-1236 or (850) 575-4144 • Fax (850) 575-8950
DC-SERIES
WARNING!
3121 Hartsfield Road • Tallahassee, Florida, USA 32303
www.gtopro.com
®
DC-SERIES
®
2002 GTO, Inc.
©

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GTO/PRO SW-3200 and is the answer not in the manual?

Questions and answers

Related Manuals for GTO GTO/PRO SW-3200

Summary of Contents for GTO GTO/PRO SW-3200

  • Page 1 You agree to properly install this product and that if you fail to do so GTO, Inc. shall in no event be liable for direct, indirect, incidental, special or consequential damages or loss of profits whether based in contract tort or any other legal theory during the course of the warranty or at any time thereafter.

  • Page 2: Conversion Chart

    The GTO/PRO® 3000/3200 Gate Operators are intended for use with vehicular swing gates. The operators can be used in Class I, Class II, Class III and Class IV applications. VEHICULAR GATE OPERATOR CLASS CATEGORIES Residential Vehicular Gate Operator-Class I: A vehicular gate operator (or system) intended for use in a home of one-to-four single family dwelling, or a garage or parking area associated therewith.

  • Page 3: Table Of Contents

    Table of Contents Gate Operator Class Categories------------------------------------------------------------inside cover Units and Standards Conversion Chart ---------------------------------------------------inside cover PLEASE READ THIS FIRST! -------------------------------------------------- page iii Important Safety Instructions -------------------------------------------------- page 1 Disconnecting the Operator -----------------------------------------------------------page 1 Important Safety Instructions for the Consumer------------------------------------page 2 Secondary Means of Protection Against Entrapment ------------------------------page 5 Required Safety Precautions for Gates-----------------------------------------------page 6 Warning Signs and Labels -------------------------------------------------------------page 7...

  • Page 4: Please Read This First

    Thank you for purchasing the GTO/PRO® 3000/3200 gate operator system. When correctly installed and properly used, your GTO/PRO® 3000/3200 Operators will give you many years of reliable service. Please read the following information to ensure you have the correct system for your particular needs. This manual will enable you to properly install your GTO/PRO®...

  • Page 5: Important Safety Instructions

    Because GTO automatic gate operators are only part of the total gate operating system, it is the responsibility of the consumer to ensure that the total system is safe for its intended use.

  • Page 6: Important Safety Instructions For The Consumer

    IMPORTANT SAFETY INSTRUCTIONS For The Consumer WARNING: To reduce the risk of injury or death: READ AND FOLLOW ALL INSTRUCTIONS. Failure to meet the requirements set forth in the instruction manual could cause severe injury and/or death, for which the manufacturer cannot be held responsible. When designing a system that will be entered from a highway or main thoroughfare, make sure the system is placed far enough from the road to prevent traffic congestion.
  • Page 7 IMPORTANT SAFETY INSTRUCTIONS Entrapment Zones for a proper Pull-To-Open installation: Zone 1 – leading edge of the gate and the fence post. Zone 2 – between the gate and the gate post. Zone 3 – the path of the gate. Zone 4 –...
  • Page 8 If any of these signs or warning decals become damaged, illegible or missing, replace them immediately. Contact GTO for free replacements. The gate is automatic and could move at any time, posing a serious risk of entrapment. No one should be in contact with the gate when it is moving or stationary.

  • Page 9: Secondary Means Of Protection Against Entrapment

    The GTO/PRO® 3000/3200 utilizes Type A, an inherent (i.e., built-in) entrapment sensing system as the primary type of entrapment protection. Also, the GTO/PRO® 3000/3200 has provisions for the connection of Type B2 protection to be used as the secondary type of entrapment protection, if desired.

  • Page 10: Required Safety Precautions For Gates

    Entrapment Protection GTO’s inherent obstruction settings, even when properly adjusted, may not be sensitive enough to prevent bodily injury in some circumstances. For this reason, safety devices such as safety edge sensors (or photoelectric sensors), which stop and reverse gate direction upon sensing an obstruction, are suggested for enhanced protection against entrapment.

  • Page 11: Warning Signs And Labels

    IMPORTANT SAFETY INSTRUCTIONS These warning labels should be found at the locations specified below. If any of them are missing, immediately contact GTO for replacements. DC SW-3000 SERIES Conforms to UL 325 STANDARDS Maximum Gate: 500 lb. (226.7 kg); 16 ft. (4.8 m) Voltage: 12 Vdc;...

  • Page 12: Parts List

    SW-3000 Parts List WARNING Receiver (1) GTO Transmitter(1) Moving Gate Can Cause Injury Or Death KEEP CLEAR! Gate may move at any time. Do not allow children to operate gate or play in gate area. This gate is for vehicles only. Pedestrians must use a separate entrance.

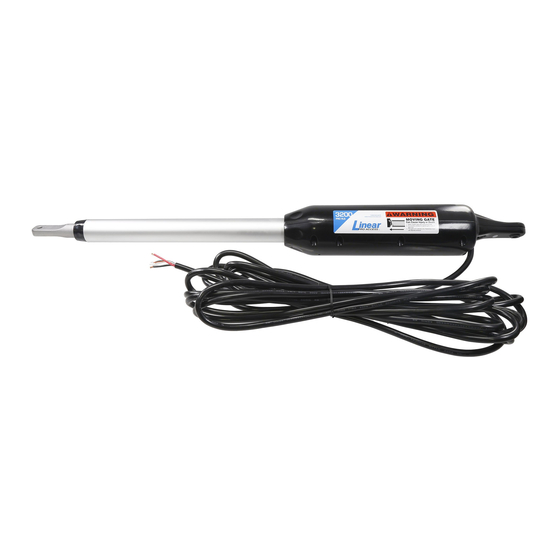

  • Page 13 SW-3200 Parts List WARNING Moving Gate Can Cause Injury Or Death Gate Operator (1) KEEP CLEAR! Gate may move at any time. w/ 40' Power Cable Do not allow children to operate gate or play in gate area. This gate is for vehicles only. Pedestrians must use a separate entrance.

  • Page 14: Installation

    See page 22, Powering the System and the Accessory Catalog for wire and solar charging panels. • If the gate is more than 1000' away from an AC power source you will need to use at least one GTO Solar Panel to trickle charge the battery. See the Accessory Catalog.

  • Page 15: Technical Specifications

    • The system is powered by a 12 Vdc, 7.0 Ah, sealed, rechargeable acid battery. • Battery charge is maintained by a 120 Vac, 18 Vac output transformer rectified to 14.5 Vdc (40 VA) through the GTO control board. Blade-style control board fuse is rated for 25 A.

  • Page 16: Installation Overview

    Installation Overview Pull-to-Open Gates (Gate Opens into the Property) The diagram shown below is an example of a pull-to-open installation on a chain link fence and dual gates. Mounting the operators on a masonry column requires special procedures; see Column Installation Information on page 39 if you intend to mount the operators on columns.

  • Page 17: Installation Of The Mounting Hardware

    Installation of Mounting Hardware The position of the post bracket determines the leverage and efficiency of the operator. The post bracket position also sets the clearance between the operator and gate in the open and closed positions (minimum 2 inches). The curved design of the post bracket works well for installations on round and square fence posts.

  • Page 18: Determining The Mounting Position

    Determining the Mounting Position of the Post Bracket Assembly and the Gate Bracket Step 3 NOTE: The following steps are 3/8" x 2" Bolt Insert the " x 2" bolt through intended for pull-to-open gate the center hole of the post installations.
  • Page 19 IMPORTANT: While determining the mounting point for the post pivot bracket assembly, be sure that the position allows for minimum 2 inches of clearance between the gate and the operator in both the open and closed positions, as shown in the diagrams below.
  • Page 20 Installing the Post Bracket Assembly and Gate Step 7 Mark reference points for bolt holes on the fence post through middle of bracket slots. Marking reference points in this manner allows room for adjustment when mounting the post bracket assembly and gate bracket. After marking your reference points, remove the operator and brackets from the fence and gate.

  • Page 21: Mounting The First Operator

    Mounting the First Operator Step 11 Attach the operator to the securely bolted post bracket assembly and gate bracket using clevis pins, bushings, and hairpin clips, or optional Pin Locks (see Accessory Catalog). Verify that the operator is level and adjust the post bracket assembly if necessary.

  • Page 22: Installation Of The Closed Position Stops

    The optional ground stop post is used to provide a secure point for the SLAVE gate to close against. If you will be using the GTO/PRO Horizontal Gate Lock accessory with your gate operator system, the closed position ground stop is REQUIRED, as shown in Steps 2 and 3 on the next page.
  • Page 23 Step 2 Install a low profile ground stop (not provided) beneath the Closed Position Stop Plate mounted Illustration C on the gate leaf that CLOSES FIRST SLAVE gate stop plate. The ground stop needs to be positioned near the end of the gate as shown in Illustration A and may be made of metal SIDE VIEW or concrete and should be firmly secured in the ground (we...

  • Page 24: Mounting The Control Box

    Operator Power Cable Single Battery NOTE: Installed Horizontally The battery that came with your GTO/PRO® 3000 , with terminals on the right. MUST be placed horizontally battery with the terminals on the RIGHT. If an optional second battery is needed, both batteries must be placed vertically with terminals at the bottom.

  • Page 25: Connecting The Operator Power Cables

    Connecting Operator Power Cables MASTER Operator Step 4 Insert the stripped power cable wires into the appropriate terminals on the MASTER OPERATOR terminal block. The green wire should be inserted into the GRN terminal, the blue wire into BLU, the orange wire into ORG, black wire into BLK, and the red wire into the RED terminal.

  • Page 26: Powering The System

    (available at local electrical supply stores) must be used. • All low voltage wire used with the GTO/PRO® 300/3200 Gate Operator must be 16 gauge dual ® conductor, multi-stranded, direct burial wire (see page 23 and the Accessory Catalog). Do not run more than 1000 feet of wire.

  • Page 27: Connecting The Transformer

    IMPORTANT INFORMATION ABOUT LOW VOLTAGE WIRE The only wire acceptable for use with GTO products is 16 gauge multi-stranded, low voltage, PVC sheathed wire. This particular gauge enables the transformer to provide an adequate charge through the control board to the battery at distances up to 1000 ft.
  • Page 28 Step 6 Strip " of insulation from the ends of the low voltage wire. Attach these stripped ends to the transformer terminals. A dab of household petroleum jelly on each terminal will help prevent corrosion. Make sure the exposed wires do not touch each other! Transformer Step 7 Plug the transformer into the electrical outlet.

  • Page 29: Control Board Settings

    CONTROL BOARD SETTINGS DIP Switches Main DIP Switch Settings (MODES) DIP Switch #1 - Soft Start/Stop The Soft Start/Stop feature slowly starts the gate as it begins to open and slows the 1 2 3 4 5 6 7 gate as it comes to the closed position. This saves wear and tear on the gate and gate operator system.

  • Page 30: Dual Mode Dip Switches

    MODES and #3 ON simultaneously / SLAVE gate starts to close 8 2 3 4 seconds before MASTER gate. REQUIRED SETTING for use with GTO/PRO Horizontal Gate Lock accessory. 1 2 3 4 1 2 3 4 DUAL DUAL #4 OFF to set or CLEAR...

  • Page 31: Setting Closed Position Limits

    Setting the Closed Position Limits TURN CONTROL BOX ON Your GTO/PRO® 3000/3200 has two Limit Settings 1) OPEN Limit setting: (Gate in the OPEN POSITION / FACTORY SET NOT ADJUSTABLE) The open limit setting is the fully open position. 2) CLOSED Limit setting: (Gate in the CLOSED POSITION) To achieve optimum closed position, you are required...

  • Page 32: Setting Your Personal Transmitter Code

    "SET LIMIT" button for 10 seconds. This will clear the memory for the closed limit Setting Your Personal Transmitter Code All GTO transmitters are set to a standard code at the factory and are ready to operate your GTO/PRO® 3200 Gate Operator .

  • Page 33: Obstruction Sensitivity

    • Standard receiver cable length is 10 feet (receivers with a longer cable are available as special order items; call the GTO Sales Department). NEVER splice receiver cable! • Run the cable through PVC conduit to protect it from damage.

  • Page 34: Connecting Additional Safety Devices

    PLEASE NOTE: Contact sensors are not included with the GTO/PRO® 3000/3200. The GTO/PRO® 3000/3200 is equipped with built-in obstruction sensitivity. The operator is designed to stop and reverse the gate within 2 seconds when it comes in contact with an obstruction. However, obstruction sensitivity, although function- ing properly, may not be sensitive enough to prevent bodily injury in some circumstances.
  • Page 35 If not installing a non-contact sensor skip to next section. PLEASE NOTE: Non-contact sensors are not included with the GTO/PRO® 3000/3200 . The GTO/PRO® 3000/3200 can also accept "Safety" input from normally open "dry-contact" output devices such as photo beams connected to the SAFETY input terminal.

  • Page 36: Connecting Accessories

    Connecting Accessories If not connecting accessories skip to next section. The GTO/PRO® 3000/3200 can accept NORMALLY OPEN CONTACT accessories, such as; Push Button Entry De- vices and Key Pads. Refer to the sensor manufacturer’s instructions for information about installing these devices on a vehicular gate.

  • Page 37: Push To Open Installation

    Push to Open Installation Determining The Mounting Position of The Post Bracket Assembly Swinging gates shall not open into public access areas! 3/8" x 2" Bolt A "Push-to-Open" gate opens out from the property. A Push-to-Open Bracket is required for this type of installation (see Post Bracket Accessory Catalog).

  • Page 38: Setting Open Position Limits

    Pull-to-open operation (factory setting). Setting the Open Position Limit In a PUSH-TO-OPEN Installation Your GTO/PRO® 3200 has two Limit Settings 1) CLOSED Limit setting: (Gates in the CLOSED POSITION / FACTORY SET NOT ADJUSTABLE) The closed limit setting in the closed position.
  • Page 39 Step 3 • IF the MASTER gate was the first gate to reach the opened position: set the number 4 DIP switch of the DUAL MODES switches on the control board to the OFF position. Then press and hold the SET LIMIT button for five seconds. •...

  • Page 40: Maintenance & Troubleshooting Guide

    If your gate operator does not function properly after it is installed, use this guide before calling the GTO Service Department. • On all gates weighing 250 lb. or more, routinely grease the ball bearing hinges at least 4 times a year; more frequently if the gates are near a coastal area.
  • Page 41 12 V Battery ________________________________12.0 to 13.5 Vdc 7.0 Ah Charging circuit _____________________________12.0 to 14.8 Vdc measure voltage with battery connected The GTO, Inc. Technical Service Department is open Monday – Friday 8:00 – 5:00 (Eastern Time) A.M.

  • Page 42: Repair Service

    1. First use the procedures found in the Maintenance & Troubleshooting Guide (see page 35). 2. If you are unable to solve the problem, call the GTO Service Department at (800) 543-1236, or (850) 575-4144. Refer to the serial number (located on the control box cover) and date of purchase when calling for assistance.

  • Page 43: Column Installation Information

    Column Installation Information F THIS OPERATOR WILL BE USED WITH GATES THAT ARE MOUNTED ON MASONRY, BRICK, OR ROCK (etc.) COLUMNS: The simplest solution is to install the operator in a push-to-open configuration (requires Push-To-Open Bracket, see Accessory Catalog). The minimum clearance is easier to achieve and clearance is no longer a problem, since the operator will be pushing the gate away from the column instead of pulling it toward the column.

  • Page 44: Accessory Catalog

    ACCESSORIES Solar Panel (FM123), (FM122) The Solar Panel is a 10 watt solar powered battery charger for use with the all GTO/PRO DC gate operator systems. Particularly suited for remote installations, each Solar Panel comes with tubular steel support, mounting clips, wire connectors, and 8 ft. of low voltage wire (see Low Voltage Wire for additional wire).
  • Page 45 1-800-543-GATE! The contents of all material available on this installation manual are copyrighted by GTO, Inc. (“GTO”), unless otherwise indicated. All rights are reserved by GTO, and content may not be reproduced, downloaded, disseminated, published, or transferred in any form or by any means, except with the prior, written permission of GTO. Any reprinting of GTO publications is by permission only. Copyright infringement is a violation of federal law.
