Inspur NF5280M6 Installation Manual page 4

Rail 3
Rail-Kit Contents
Rear Bracket
Outer Rail
Back-Sliding Rail

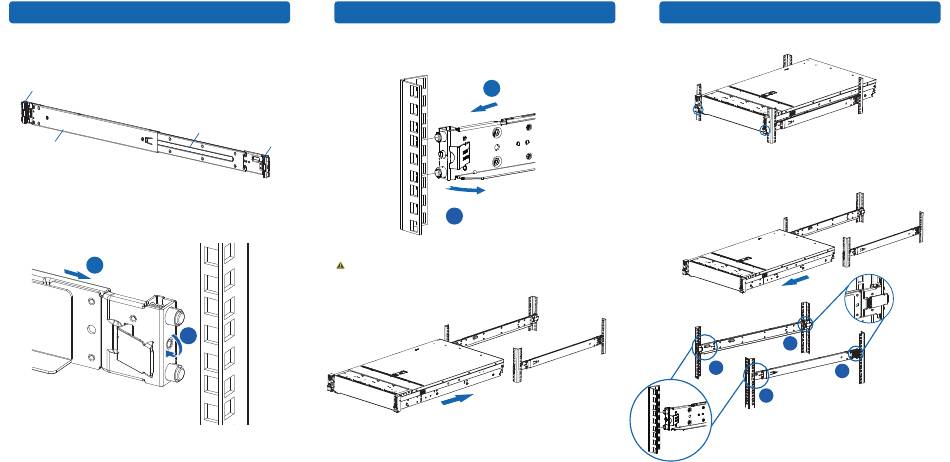

Installing the Rails
1
Align the pins on the rear bracket to the desired position of the back of the
rack. Press the locking latch as indicated by arrow ①, and then insert the
pins as indicated by arrow ② until the pins are fully engaged.
2
1
Locking
latch
2
Align the pins on the front bracket to the front of the rack. Press the locking
latch as indicated by arrow ①, and then insert the pins as indicated by
arrow ② until the pins are fully engaged.
Front Bracket
Locking
latch
3
Repeat Step 1 and Step 2 for the other rail.
NOTE: The front end and the rear end of the rail, and the two rails MUST be
installed at the same height.
4
Align the server with the rails, and slide the chassis all the way into the rack.
2
1
Rack-Mounted Server Installation Guide
5
Open both handles on the front of the server, and then loosen the two
thumb screws.
Removing the Rails
1
Open both handles on the front of the server, and then tighten the two
thumb screws.
2
Slide the server out, and then remove
the server from the rack.
3
Disengage the pins from the rack.
2
1
4
3
V1.0
