Enabling an Intelligent Planet
FAQ: How to connect SNMP-1000-E2B1E in ACP-4360 -B/5360/7360?
This FAQ will help you to connect the SNMP-1000-E2B1E in ACP-4360-B/5360/7360.

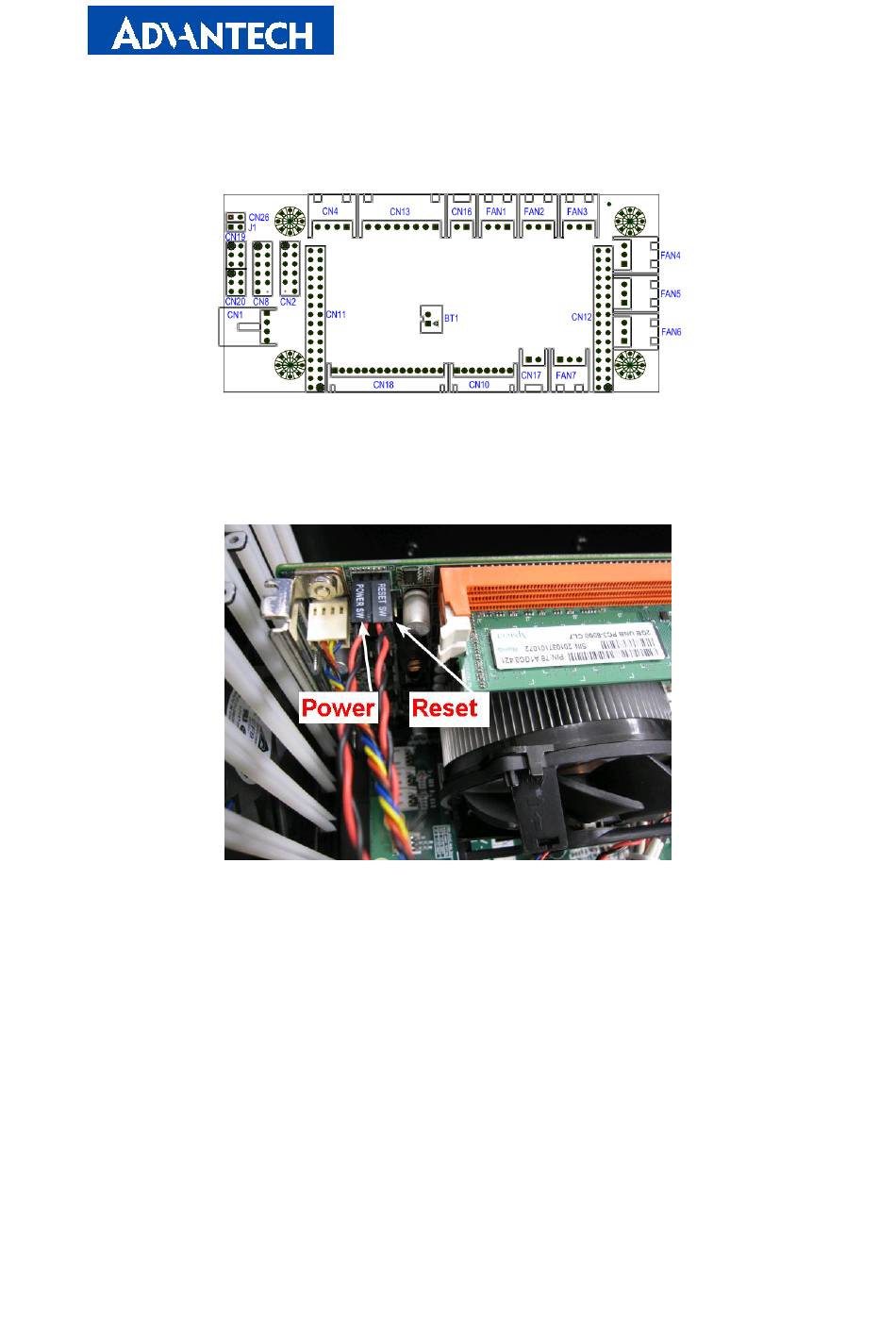

Figure 1. Connectors on SNMP-1000-E2B1E
Step 1. Connect the Power Button Cable and Reset Button Cable to CPU board, as shown in Figure 2.
Figure 2.
Page 1 /4

Advertisement

loading
Need help?

Need help?

Do you have a question about the SNMP-1000-E2B1E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Advantech SNMP-1000-E2B1E

  • Page 1 Enabling an Intelligent Planet FAQ: How to connect SNMP-1000-E2B1E in ACP-4360 -B/5360/7360? This FAQ will help you to connect the SNMP-1000-E2B1E in ACP-4360-B/5360/7360. Figure 1. Connectors on SNMP-1000-E2B1E Step 1. Connect the Power Button Cable and Reset Button Cable to CPU board, as shown in Figure 2.
  • Page 2 The SNMP-1000-E2B1E can detect the fan quantities automatically, so when you use SNMP-1000-E2B1E and connect fans to it, please must set the fan number to ‘0’ on the SAS/SATA HDD backplane (refer to following table). Otherwise it will cause abnormal alarm.
  • Page 3 Enabling an Intelligent Planet Step 3. Connect the rest cables, as shown in Figure 4.  Power connector to CN1  10/100Base T-LAN to CN2  External HDD LED connector from CPU board to CN26 Figure 4. Step 4. Screw the carrier board in ACP-4360-B/5360/7360, as shown in figure 5. Figure 5.
  • Page 4 Enabling an Intelligent Planet Step 5. Connect the Kernel Module on Carrier board, as shown in figure 6 Figure 6. Page 4 /4...
