KROHNE OPTIWAVE 7300 C Handbook

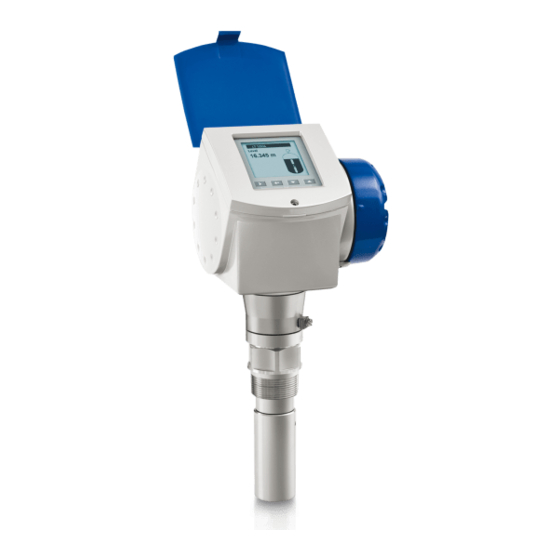

Non-contact radar (fmcw) level meter for liquids
Hide thumbs Also See for OPTIWAVE 7300 C:
Table of Contents

Advertisement

Quick Links

Download this manual
OPTIWAVE 7300 C
OPTIWAVE 7300 C
OPTIWAVE 7300 C
OPTIWAVE 7300 C
Non-contact Radar (FMCW) Level Meter for liquids
for distance, level, volume and mass measurement of liquids
© KROHNE 04/2010 - 4000172403 - HB OPTIWAVE 7300 R05 en
Handbook
Handbook
Handbook
Handbook

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OPTIWAVE 7300 C and is the answer not in the manual?

Questions and answers

Related Manuals for KROHNE OPTIWAVE 7300 C

Summary of Contents for KROHNE OPTIWAVE 7300 C

  • Page 1 OPTIWAVE 7300 C OPTIWAVE 7300 C OPTIWAVE 7300 C Handbook Handbook Handbook Handbook Non-contact Radar (FMCW) Level Meter for liquids for distance, level, volume and mass measurement of liquids © KROHNE 04/2010 - 4000172403 - HB OPTIWAVE 7300 R05 en...
  • Page 2 All rights reserved. It is prohibited to reproduce this documentation, or any part thereof, without the prior written authorisation of KROHNE Messtechnik GmbH. Subject to change without notice. Copyright 2010 by KROHNE Messtechnik GmbH - Ludwig-Krohne-Str. 5 - 47058 Duisburg (Germany) www.krohne.com 04/2010 - 4000172403 - HB OPTIWAVE 7300 R05 en...

  • Page 3: Table Of Contents

    CONTENTS OPTIWAVE 7300 C 1 Safety instructions 1.1 Intended use ........................6 1.2 Certification ........................6 1.3 Electromagnetic compatibility ..................6 1.4 Radio approvals ........................ 7 1.4.1 European Union (EU)....................... 7 1.4.2 U.S.A. and Canada........................8 1.5 Safety instructions from the manufacturer ..............8 1.5.1 Copyright and data protection ....................
  • Page 4 CONTENTS OPTIWAVE 7300 C 4.2 Electrical installation: outputs 1 and 2 ................38 4.2.1 Non-Ex........................... 39 4.2.2 Ex i ............................39 4.2.3 Ex d ............................39 4.2.4 PROFIBUS PA........................40 4.2.5 FOUNDATION Fieldbus ......................40 4.3 Protection category ......................40 4.4 Networks ........................
  • Page 5 CONTENTS OPTIWAVE 7300 C 7 Service 7.1 Periodic maintenance..................... 86 7.2 How to clean the top surface of the device ..............86 7.3 How to clean horn antennas under process conditions ..........87 7.4 How to replace device components ................87 7.4.1 Service warranty ........................

  • Page 6: Safety Instructions

    SAFETY INSTRUCTIONS OPTIWAVE 7300 C 1.1 Intended use This radar level transmitter measures distance, level, mass, volume and reflectivity of liquids, pastes and slurries. It can be installed on tanks, reactors and open channels. 1.2 Certification DANGER! For devices used in hazardous areas, additional safety notes apply; please refer to the Ex documentation.

  • Page 7: Radio Approvals

    SAFETY INSTRUCTIONS OPTIWAVE 7300 C 1.4 Radio approvals 1.4.1 European Union (EU) LEGAL NOTICE! This level transmitter is intended for installation in closed metallic tanks. It meets the requirements of the R & TTE (Radio Equipment and Telecommunications Terminal Equipment) Directive 1999/05/EC for use in the member countries of the EU.

  • Page 8: And Canada

    SAFETY INSTRUCTIONS OPTIWAVE 7300 C 1.4.2 U.S.A. and Canada LEGAL NOTICE! This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2.

  • Page 9: Disclaimer

    SAFETY INSTRUCTIONS OPTIWAVE 7300 C 1.5.2 Disclaimer The manufacturer will not be liable for any damage of any kind by using its product, including, but not limited to direct, indirect, incidental, punitive and consequential damages. This disclaimer does not apply in case the manufacturer has acted on purpose or with gross negligence.

  • Page 10: Product Liability And Warranty

    SAFETY INSTRUCTIONS OPTIWAVE 7300 C 1.5.3 Product liability and warranty The operator shall bear responsibility for the suitability of the device for the specific purpose. The manufacturer accepts no liability for the consequences of misuse by the operator. Improper installation and operation of the devices (systems) will cause the warranty to be void. The respective "Standard Terms and Conditions"...

  • Page 11: Warnings And Symbols Used

    SAFETY INSTRUCTIONS OPTIWAVE 7300 C 1.5.5 Warnings and symbols used Safety warnings are indicated by the following symbols. DANGER! This information refers to the immediate danger when working with electricity. DANGER! This warning refers to the immediate danger of burns caused by heat or hot surfaces.

  • Page 12: Device Description

    DEVICE DESCRIPTION OPTIWAVE 7300 C 2.1 Scope of delivery INFORMATION! Check the packing list to check if you received completely all that you ordered. Scope of delivery - horn antenna Figure 2-1: Scope of delivery - horn antenna 1 Signal converter and antenna in compact version...
  • Page 13 DEVICE DESCRIPTION OPTIWAVE 7300 C Scope of delivery - Drop antenna Figure 2-2: Scope of delivery - Drop antenna 1 Signal converter and antenna in compact version 2 Antenna extensions (option) and o-ring for each antenna extension 3 Quick Start...

  • Page 14: Device Description

    DEVICE DESCRIPTION OPTIWAVE 7300 C 2.2 Device description This device is a 24 GHz FMCW-radar level transmitter. It is a non-contact technology and is 2- wire loop-powered. It is designed to measure the distance, level, mass, volume and reflectivity of liquids, pastes and slurries.

  • Page 15: Visual Check

    DEVICE DESCRIPTION OPTIWAVE 7300 C 2.3 Visual Check WARNING! If the display screen glass is broken, do not touch. INFORMATION! Inspect the cartons carefully for damage or signs of rough handling. Report damage to the carrier and to the local office of the manufacturer.

  • Page 16: Nameplates

    DEVICE DESCRIPTION OPTIWAVE 7300 C 2.4 Nameplates INFORMATION! Look at the device nameplate to ensure that the device is delivered according to your order. Check for the correct supply voltage printed on the nameplate. 2.4.1 Non-Ex nameplate Figure 2-6: Non-Ex nameplate 1 Indicator arrow to cable entry / cable entry size.

  • Page 17: Installation

    INSTALLATION OPTIWAVE 7300 C 3.1 Notes on installation INFORMATION! Inspect the cartons carefully for damage or signs of rough handling. Report damage to the carrier and to the local office of the manufacturer. INFORMATION! Check the packing list to check if you received completely all that you ordered.

  • Page 18: Transport

    INSTALLATION OPTIWAVE 7300 C 3.3 Transport Figure 3-2: How to lift the device 1 Remove the converter before you lift the device with a hoist. WARNING! Lift the device carefully to prevent damage to the antenna. 3.4 Pre-installation requirements INFORMATION! Obey the precautions that follow to make sure that the device is correctly installed.

  • Page 19: How To Prepare The Tank Before You Install The Device

    INSTALLATION OPTIWAVE 7300 C 3.5 How to prepare the tank before you install the device CAUTION! To avoid measuring errors and device malfunction, obey these precautions. 3.5.1 Pressure and temperature ranges Figure 3-3: Pressure and temperature ranges 1 Flange temperature ®...

  • Page 20: Theoretical Data For Nozzle Position

    INSTALLATION OPTIWAVE 7300 C 3.5.2 Theoretical data for nozzle position CAUTION! Follow these recommendations to make sure that the device measures correctly. Figure 3-4: Recommended nozzle position for liquids, pastes and slurries 1 Nozzles for DN40 or DN50 Horn antennas, or DN50 Hygienic antenna...

  • Page 21: Theoretical Data For Hygienic Applications

    INSTALLATION OPTIWAVE 7300 C Figure 3-5: Product inlets 1 The device is in the correct position. 2 The device is too near to the product inlet. Figure 3-6: More than 1 FMCW radar level meter can be operated in a tank More than 1 FMCW radar level meter can be operated in a tank.

  • Page 22: Installation Recommendations For Liquids

    INSTALLATION OPTIWAVE 7300 C 3.6 Installation recommendations for liquids 3.6.1 General requirements INFORMATION! We recommend that you configure the device when the tank is empty. Figure 3-8: General Installation recommendations 1 Do not tilt the device more than 2° How to use the...
  • Page 23 INSTALLATION OPTIWAVE 7300 C Figure 3-9: Installation recommendations for standpipes (stilling wells and bypass chambers) 1 Stilling well 2 Bypass chamber 3 Air circulation hole 4 Level of the liquid CAUTION! Installation requirements The standpipe must be electrically conductive. •...
  • Page 24 INSTALLATION OPTIWAVE 7300 C Stilling wells - general notes Installation in tanks containing one liquid and foam • Drill a pressure equalization hole in the stilling well above the maximum level. • Deburr the hole. Installation in tanks containing one liquid or more without foam •...
  • Page 25 INSTALLATION OPTIWAVE 7300 C Figure 3-11: Horizontal cylindrical tanks 1 The device is installed without a stilling well. There are multiple reflections. Refer to the CAUTION! that follows. 2 The device is installed in a stilling well and measures correctly.

  • Page 26: How To Install The Device On The Tank

    INSTALLATION OPTIWAVE 7300 C Installation next to tanks containing more than one liquid • The top process connection of the bypass chamber must be above the maximum level of liquid. • The bottom process connection of the bypass chamber must be below the lowest measured level of liquid.
  • Page 27 INSTALLATION OPTIWAVE 7300 C Requirements for flange connections Figure 3-13: Flange connection If the process connection is larger than the antenna: • Make sure the flange on the nozzle is level. • Make sure that you use the applicable gasket for the flange dimensions and the process.

  • Page 28: How To Install A Device With A Threaded Connection

    INSTALLATION OPTIWAVE 7300 C WARNING! If you attach the antenna in a closed space, make sure that there is a good airflow in the area. Make sure that a person not in the tank can always hear you. If the process connection is smaller than the antenna: •...
  • Page 29 INSTALLATION OPTIWAVE 7300 C Figure 3-16: How to attach the device if the antenna is smaller than the process connection Equipment needed: • 3 mm Allen wrench (not supplied) WARNING! If you attach the antenna in a closed space, make sure that there is a good airflow in the area.

  • Page 30: How To Install A Device With A Hygienic Connection

    INSTALLATION OPTIWAVE 7300 C If the process connection of the device is smaller than the process connection on the tank: • Make sure the tank connection is level. • Use a plate with a slot or a different applicable procedure to adapt the device to the tank.
  • Page 31 INSTALLATION OPTIWAVE 7300 C ® Tri-Clamp Equipment needed: • Device • Gasket (not supplied) • Band clamp (not supplied) ® Figure 3-18: Tri-Clamp connection 1 Tank socket 2 Band clamp ® How to attach a device with a Tri-Clamp connection •...
  • Page 32 INSTALLATION OPTIWAVE 7300 C Figure 3-19: DIN 11851 connection 1 Tank socket 2 Nut for DIN 11851 connection How to attach a device with a DIN 11851 connection • Make sure the tank connection is level. • Make sure that you use the applicable gasket for the connection dimensions and the process.

  • Page 33: How To Attach Antenna Extensions

    INSTALLATION OPTIWAVE 7300 C How to attach a device with a SMS connection • Make sure the tank connection is level. • Make sure that you use the applicable gasket for the connection dimensions and the process. • Align the gasket correctly.
  • Page 34 INSTALLATION OPTIWAVE 7300 C Drop antenna - antenna extensions Figure 3-22: Drop antenna - how to attach antenna extensions INFORMATION! Drop antenna: Drop antenna: Antenna extensions can only be attached below flanges without the PP/PTFE Drop antenna: Drop antenna: flange plate option...

  • Page 35: How To Turn Or Remove The Signal Converter

    INSTALLATION OPTIWAVE 7300 C 3.7.5 How to turn or remove the signal converter INFORMATION! The converter turns 360 ° Figure 3-23: How to turn or remove the signal converter Tool: 5 mm Allen wrench How to turn the signal converter •...

  • Page 36: How To Attach The Weather Protection To The Device

    INSTALLATION OPTIWAVE 7300 C 3.7.6 How to attach the weather protection to the device Equipment needed: • Device. • Weather protection (option). • 10 mm wrench (not supplied). The overall dimensions of the weather protection are on page 110. Figure 3-24: Installation of the weather protection •...

  • Page 37: How To Open The Weather Protection

    INSTALLATION OPTIWAVE 7300 C 3.7.7 How to open the weather protection Equipment needed: • Weather protection attached to the device. • Large slotted tip screwdriver (not supplied). Figure 3-25: How to open the weather protection 1 Weather protection in its closed position 2 Weather protection in its open position.

  • Page 38: Electrical Connections

    ELECTRICAL CONNECTIONS OPTIWAVE 7300 C 4.1 Safety instructions DANGER! All work on the electrical connections may only be carried out with the power disconnected. Take note of the voltage data on the nameplate! DANGER! Observe the national regulations for electrical installations! DANGER! For devices used in hazardous areas, additional safety notes apply;...

  • Page 39: Non-Ex

    ELECTRICAL CONNECTIONS OPTIWAVE 7300 C INFORMATION! ® Output 1 energizes the device and is used for HART communication. If the device has the second current output option, use a separate power supply to energize output 2. Procedure: • Remove the housing terminal compartment cover 1.

  • Page 40: Profibus Pa

    ELECTRICAL CONNECTIONS OPTIWAVE 7300 C 4.2.4 PROFIBUS PA For electrical data for PROFIBUS PA networks, refer to the PROFIBUS PA supplement. You can find this documentation on the CD-ROM delivered with the device or it can be downloaded free of charge from the website (Downloadcenter).

  • Page 41: Networks

    ELECTRICAL CONNECTIONS OPTIWAVE 7300 C 4.4 Networks 4.4.1 General information ® ® The device uses the HART communication protocol. This protocol agrees with the HART Communication Foundation standard. The device can be connected point-to-point. It can also operate in a multi-drop network of up to 15 devices.

  • Page 42: Multi-Drop Networks

    ELECTRICAL CONNECTIONS OPTIWAVE 7300 C 4.4.3 Multi-drop networks Figure 4-5: Multi-drop network (non-Ex) 1 Address of the device (n+1 for multidrop networks) 2 Address of the device (1 for multidrop networks) ® 3 4 mA + HART ® 4 Resistor for HART...

  • Page 43: Fieldbus Networks

    ELECTRICAL CONNECTIONS OPTIWAVE 7300 C 4.4.4 Fieldbus networks Figure 4-6: FOUNDATION Fieldbus™ network (non-Ex) 1 Field device 2 Junction box 3 H1 network 4 H1/HSE converter 5 High Speed Ethernet (HSE) 6 Workstation INFORMATION! It is necessary to have a separate power supply to energize devices with the FOUNDATION ™...
  • Page 44 ELECTRICAL CONNECTIONS OPTIWAVE 7300 C Figure 4-7: PROFIBUS PA/DP network (non-Ex) 1 Field device 2 Bus termination 3 PROFIBUS PA bus segment 4 Segment coupler (PA/DP link) 5 PROFIBUS DP bus line 6 Control system (PLC / Class 1 master device)

  • Page 45: Start-Up

    START-UP OPTIWAVE 7300 C 5.1 Start-up checklist Check these points before you energize the device: • Are all the wetted components (antenna, flange and gaskets) resistant to the product in the tank? • Does the information on the signal converter nameplate agree with the operating data? •...

  • Page 46: Digital Display Screen

    START-UP OPTIWAVE 7300 C 5.3 Digital display screen 5.3.1 Local display screen layout Figure 5-1: Local display screen layout 1 Error icon 2 Tag number or menu name 3 Selected menu item (grey text cannot be selected) : scroll up/scroll down 5 Keypad buttons (refer to the table below) 5.3.2 Keypad buttons...

  • Page 47: How To Start The Device

    START-UP OPTIWAVE 7300 C 5.3.4 How to start the device • Connect the converter to the power supply. • Energize the converter. After 30 seconds the screen will display "booting up", "starting up" and then the default screen will appear.

  • Page 48: Remote Communication With The Ams™ Device Manager

    START-UP OPTIWAVE 7300 C Figure 5-2: Screen from the PACTware™ user interface 1 DTM menu 2 Basic measurement information: level, current output and device status 3 Information for device identification 4 Configuration summary 5.5 Remote communication with the AMS™ Device Manager The AMS™...

  • Page 49: Operation

    OPERATION OPTIWAVE 7300 C 6.1 User modes There are 3 modes of operation: • Operator. • Supervisor. • Service. 6.2 Operator mode The operator can choose what information to display. This section shows you: • What each button does in operator mode.
  • Page 50 OPERATION OPTIWAVE 7300 C Screens in operator mode Text and image Go to % current output Go to Text screen Go to screen screen Level > Level > Level > (Text image) Distance > Distance > Distance > (Text image) Volume >...

  • Page 51: Supervisor Mode

    OPERATION OPTIWAVE 7300 C 6.3 Supervisor mode 6.3.1 General notes Configure your device in Supervisor Supervisor mode. You can: Supervisor Supervisor • Use the Quick Setup Quick Setup Quick Setup menus to configure your device quickly. For more data about quick setup...

  • Page 52: Menu Overview

    OPERATION OPTIWAVE 7300 C 6.3.3 Menu overview A Quick Setup Setup Mode Quick Link 1 (default: Error Records) Quick Link 2 (default: Measurement Quality) Quick Link 3 (default: Language) Quick Link 4 (default: Length Unit) Quick Link 5 (default: Display Mode)

  • Page 53: Keypad Functions

    OPERATION OPTIWAVE 7300 C 6.3.4 Keypad functions Menu navigation Figure 6-1: Menu navigation 1 Menu selection bar 2 Header bar 3 Menu list 4 Menu item that is not available (in grey text) This is what you see when you are in the list of menus in supervisor mode. The functions of the...
  • Page 54 OPERATION OPTIWAVE 7300 C Lists of parameters in menu items Figure 6-2: Lists of parameters in menu items 1 Parameter selection bar 2 Menu name 3 Parameter used at this time This is what you see when you choose a menu item that has a list of parameters. The functions of...
  • Page 55 OPERATION OPTIWAVE 7300 C Values in menu items Figure 6-3: Values in menu items 1 Maximum value 2 Minimum value 3 Cursor on the digit to be changed 4 Menu name 5 Illustration of menu item 6 Error message This is what you see when you choose a menu item that has a value. The functions of the buttons...

  • Page 56: Function Description

    OPERATION OPTIWAVE 7300 C If you press the buttons for 1 second, you can use these hotkey functions: Hotkey functions in supervisor mode Button Description Function Right Create a quick link Enter Down Screen displays information in English Esc (Escape)
  • Page 57 OPERATION OPTIWAVE 7300 C Menu No. Step Function Function description Selection list Default Application Type The conditions in which Process, Storage, Process or the device is used. If the Agitator, Process+ surface of the product is Process+Stillwell, Stillwell flat, select "Storage". If...
  • Page 58 OPERATION OPTIWAVE 7300 C Menu No. Step Function Function description Selection list Default Is your tank If the tank is partially Partially Filled, Partially partially filled or filled, the device must Empty Filled empty? include the tank contents when it filters the signal.
  • Page 59 OPERATION OPTIWAVE 7300 C Menu No. Step Function Function description Selection list Default Please select Select "Mass". Mass Volume / Mass Do you want to use Yes, No the density of the product? Product Density The Wizard adds this min-max: step if you select "Yes"...
  • Page 60 OPERATION OPTIWAVE 7300 C Menu No. Step Function Function description Selection list Default Current changes Save, Cancel Save must be saved or cancelled before proceeding A.1.5 Outputs Follow this procedure to describe the output characteristics. Output 1: Output Select an output...
  • Page 61 OPERATION OPTIWAVE 7300 C Menu No. Step Function Function description Selection list Default OP2 Error This sets the behaviour 3.6 mA, 22 mA, Hold 22 mA Handling of current output 2 if an (4...20 mA range error occurs. Hold only)
  • Page 62 OPERATION OPTIWAVE 7300 C B. Test Menu Function Function description Selection list Default Test Test This checks the device outputs and performs common device tests. B.1.1 Show Output 1 This displays analogue output 1 Read only value [mA]. B.1.2 Set Output 1 This sets analogue output 1 to a 3.6, 4, 6, 8, 10, 12, 14, 16, 18, 20...
  • Page 63 OPERATION OPTIWAVE 7300 C Menu Function Function description Selection list Default B.2.7 Custom. Non-standard length unit for Read only Length Unit the conversion table. This is defined by the supervisor. Go to Supervisor > Advanced Setup > Supervisor > Advanced Setup >...
  • Page 64 OPERATION OPTIWAVE 7300 C Menu Function Function description Selection list Default C.1.5 Stillwell The inner diameter of the min-max: 100 mm / Diameter stillwell. This is available if 8…200 mm / 0.31…7.88¨ 3.94¨ you set "...+Stillwell" in item C.1.3 Application Type.
  • Page 65 OPERATION OPTIWAVE 7300 C Menu Function Function description Selection list Default C.1.13 Measuring The device uses the dielectric Direct Measuring, TBF Direct Mode constant (ε ) of the tank Partial, TBF Full, Option 1, Measuring Option 2, Option 3 contents to monitor level.
  • Page 66 OPERATION OPTIWAVE 7300 C Menu Function Function description Selection list Default C.1.20 Product A value greater than 0 that is 0…20000 kg/m3 0 kg/m3 Density used with a volume conversion table to start the mass calculation. This menu item is not available if you have selected a mass unit.
  • Page 67 OPERATION OPTIWAVE 7300 C Menu Function Function description Selection list Default C.4.1 Output Select an output function to Level, Distance, Volume Level Function scale the current values. This (Mass), Ullage Volume is not displayed in the (Ullage Mass), Reflection operator mode.
  • Page 68 OPERATION OPTIWAVE 7300 C Menu Function Function description Selection list Default C.5.1.5 Volume Unit The volume unit displayed in m3, L, US gal, GB gal, ft3, operator mode. C.5.1.6 Mass Unit The mass unit displayed in Tons, Kg, US Tons, GB operator mode.

  • Page 69: Further Information On Device Configuration

    OPERATION OPTIWAVE 7300 C Data dependencies for the 20 mA settings of outputs 1 and 2 Output function Minimum value Maximum value Default Level >4 mA Setting for Level Tank Height + TBO + RO Tank height + TBO - Volume >4 mA Setting for Volume...

  • Page 70: Protection Of The Device Settings

    OPERATION OPTIWAVE 7300 C How to create a Quick Link • Go to Supervisor > Advanced Setup Supervisor > Advanced Setup Supervisor > Advanced Setup. Supervisor > Advanced Setup • Select a menu item with the buttons. • Press the > > > > button for 1 second.

  • Page 71: Network Configuration

    OPERATION OPTIWAVE 7300 C 6.4.3 Network configuration INFORMATION! For more data, refer to Networks on page 41 ® ® The device uses HART communication to send information to HART -compatible equipment. It can operate in either point-to-point or multidrop mode. The device will communicate in ®...

  • Page 72: Linearisation

    OPERATION OPTIWAVE 7300 C 6.4.4 Linearisation You can use the linearisation table given in function to make sure that readings are consistently accurate. • Go to Supervisor > Advanced Setup > Installation Setup > Linearisation Table Supervisor > Advanced Setup > Installation Setup > Linearisation Table.

  • Page 73: Level Measurement

    OPERATION OPTIWAVE 7300 C Figure 6-5: Distance measurement 1 Tank Height (C.1.2) 2 Reference Offset (C.1.10) 3 Blocking Distance (C.1.9) 4 4 mA Setting (C.3.2 or C.4.2) 5 20 mA Setting (C.3.3 or C.4.3) 6 Maximum effective measuring range 7 Non-measurement zone...

  • Page 74: How To Configure The Device To Measure Volume Or Mass

    OPERATION OPTIWAVE 7300 C Figure 6-6: Level measurement 1 Tank Bottom Offset (C.1.11) 2 Tank Height (C.1.2) 3 Blocking Distance (C.1.9) 4 Maximum effective measuring range 5 20 mA Setting (C.3.3 or C.4.3) 6 4 mA Setting (C.3.2 or C.4.2)
  • Page 75 OPERATION OPTIWAVE 7300 C INFORMATION! You can also create customized length and conversion units (free units) in the Conversion Conversion Conversion setup Conversion procedure. INFORMATION! When you create a table, get more conversion data for parts of the tank where there are: Surfaces with curves.

  • Page 76: How To Use The Empty Spectrum Function To Filter Parasite Signals

    OPERATION OPTIWAVE 7300 C 6.4.8 How to use the empty spectrum function to filter parasite signals If the device measures level in a tank that contains obstructions (agitator, supports, heating pipes etc.), these objects can cause radar signal interference. You can use the empty spectrum function in the device's Quick Setup menu to filter radar signal interference.

  • Page 77: How To Measure Correctly In Tanks With Curved Or Conical Bottoms

    OPERATION OPTIWAVE 7300 C If you select Yes Yes, the device will use the empty spectrum scan results to filter out radar signal interference. INFORMATION! For more data on empty spectrum scans, refer to Function description on page 56 - table A.

  • Page 78: Service Mode

    OPERATION OPTIWAVE 7300 C Figure 6-9: Signal screen and the tank bottom reflection 1 Tank bottom offset (menu item C.1.11) 2 Tank height (menu item C.1.2) 3 Signal amplitude (in dB) 4 True position of the tank bottom 5 Offset position of the tank bottom...

  • Page 79: Errors

    OPERATION OPTIWAVE 7300 C 6.6 Errors 6.6.1 General information Indication of errors When the device senses an error condition, it displays an error symbol in the top left corner of the display screen. Figure 6-10: Indication of errors 1 Error/ warning symbol Enter the supervisor mode to either: •...
  • Page 80 OPERATION OPTIWAVE 7300 C How to check the measurement quality • Enter supervisor mode. • Go to Test > Information > Measurement Quality Test > Information > Measurement Quality Test > Information > Measurement Quality. Test > Information > Measurement Quality This shows the status of device errors at this time.
  • Page 81 OPERATION OPTIWAVE 7300 C How to find the error records • Enter supervisor mode. • Go to Test > Information > Error Records Test > Information > Error Records Test > Information > Error Records. Test > Information > Error Records •...

  • Page 82: Error Handling

    OPERATION OPTIWAVE 7300 C How to get more data about the error (Error Records function) • Select an error log and press ^ ^ ^ ^ to read the help text. Typical data is given in the illustration that follows.
  • Page 83 OPERATION OPTIWAVE 7300 C Description of errors and corrective actions Error Message Error Description Corrective action code Current output Current output saturated at The output is at its maximum Fill the tank or remove some maximum value output value (20 or 20.5 mA)
  • Page 84 OPERATION OPTIWAVE 7300 C Error Message Error Description Corrective action code Measurement is lost in the The tank is possibly empty. If you fill the tank, the device tank bottom The device will display the will measure again. tank bottom measurement.
  • Page 85 OPERATION OPTIWAVE 7300 C Error Message Error Description Corrective action code Plausible peak is not The signal peak is not found Check the device, tank and available within the measuring window the process. Reconfigure the that filters the signals device and record a new received by the antenna.

  • Page 86: Service

    SERVICE OPTIWAVE 7300 C 7.1 Periodic maintenance No maintenance is necessary. 7.2 How to clean the top surface of the device WARNING! Do not let more than 5 mm / 0.2 of dust collect on the top surface of the device. This is a possible ¨...

  • Page 87: How To Clean Horn Antennas Under Process Conditions

    SERVICE OPTIWAVE 7300 C 7.3 How to clean horn antennas under process conditions If it is possible that there will be build-up, a purging option is available for horn antennas. WARNING! Purge the antenna with a dry gas or liquid that is applicable to the process.

  • Page 88: Replacement Of The Display Cover

    SERVICE OPTIWAVE 7300 C 7.4.2 Replacement of the display cover Figure 7-1: Removal of the device display cover www.krohne.com 04/2010 - 4000172403 - HB OPTIWAVE 7300 R05 en...
  • Page 89 SERVICE OPTIWAVE 7300 C Equipment needed (not supplied): • Slotted tip screwdriver. • 3 mm Allen wrench (for steps 2 and 4). WARNING! Disconnect the power supply How to remove the display 1 Remove the 2 pins on the blue sun cover with a slotted tip screwdriver. Remove the sun cover.

  • Page 90: Replacement Of The Complete Electonic Module

    SERVICE OPTIWAVE 7300 C 7.4.3 Replacement of the complete electonic module Figure 7-2: Removal of the complete electronic module www.krohne.com 04/2010 - 4000172403 - HB OPTIWAVE 7300 R05 en...
  • Page 91 SERVICE OPTIWAVE 7300 C Equipment needed (not supplied): • 3 mm Allen wrench (for steps 1 and 4). How to remove the back end and microwave unit 1 Loosen the screw on the display. Open the display. 2 Disconnect the power supply connector from the electronics block.

  • Page 92: Replacement Of The Terminal Module

    SERVICE OPTIWAVE 7300 C 7.4.4 Replacement of the terminal module Figure 7-3: Removal of the terminal module www.krohne.com 04/2010 - 4000172403 - HB OPTIWAVE 7300 R05 en...
  • Page 93 SERVICE OPTIWAVE 7300 C Equipment needed (not supplied): • 2.5 mm Allen wrench for Aluminium (painted) housings; 3 mm Allen wrench for Stainless Steel housings (for step 1). • Small slotted tip screwdriver (for step 3). • TORX T10 wrench (for step 5).

  • Page 94: Spare Parts Availability

    SERVICE OPTIWAVE 7300 C 7.5 Spare parts availability The manufacturer adheres to the basic principle that functionally adequate spare parts for each device or each important accessory part will be kept available for a period of 3 years after delivery of the last production run for the device.
  • Page 95 SERVICE OPTIWAVE 7300 C Part numbers for spare parts Item Description Quantity Part reference number Complete electronic module XF7040000000040000 Screws for the combined back end and HF modules F3177360000 HMI cover and cable (aluminium housing) XF7040000000050100 HMI cover and cable (stainless steel housing)

  • Page 96: List Of Accessories

    SERVICE OPTIWAVE 7300 C 7.5.2 List of accessories Figure 7-5: Accessories www.krohne.com 04/2010 - 4000172403 - HB OPTIWAVE 7300 R05 en...

  • Page 97: Availability Of Services

    SERVICE OPTIWAVE 7300 C Part numbers for accessories Item Description Quantity Part reference number Plastic sun cover XF704000000000000A Pins for the plastic sun cover F3179990000 Stainless steel weather protection XF7040000000000001 Blind cover (with a gasket and screws) XF704000000000000B Gasket for the blind cover...

  • Page 98: Returning The Device To The Manufacturer

    SERVICE OPTIWAVE 7300 C 7.7 Returning the device to the manufacturer 7.7.1 General information This device has been carefully manufactured and tested. If installed and operated in accordance with these operating instructions, it will rarely present any problems. CAUTION! Should you nevertheless need to return a device for inspection or repair, please pay strict...

  • Page 99: Form (For Copying) To Accompany A Returned Device

    SERVICE OPTIWAVE 7300 C 7.7.2 Form (for copying) to accompany a returned device Company: Address: Department: Name: Tel. no.: Fax no.: Manufacturer's order no. or serial no.: The device has been operated with the following medium: This medium is: water-hazardous...

  • Page 100: Technical Data

    TECHNICAL DATA OPTIWAVE 7300 C 8.1 Measuring principle A radar signal is emitted via an antenna, reflected on the product surface and received after a time t. The radar principle used is FMCW (Frequency Modulated Continuous Wave). The FMCW-radar transmits a high frequency signal whose frequency increases linearly during the measurement phase (called the frequency sweep).

  • Page 101: Technical Data

    TECHNICAL DATA OPTIWAVE 7300 C 8.2 Technical data INFORMATION! The following data is provided for general applications. If you require data that is more • relevant to your specific application, please contact us or your local representative. Additional information (certificates, special tools, software,...) and complete product •...
  • Page 102 TECHNICAL DATA OPTIWAVE 7300 C Measuring accuracy Resolution 1 mm / 0.04¨ Repeatability ±1 mm / ±0.04¨ Accuracy ±3 mm / ±0.12¨, when distance < 10 m / 33 ft; ±0.03% of measured distance, when distance > 10 m / 33 ft Reference conditions acc.
  • Page 103 TECHNICAL DATA OPTIWAVE 7300 C Other conditions Other conditions Other conditions Other conditions ≥1.5 Dielectric constant (ε Vibration resistance IEC 60068-2-6 and EN 50178 (10...57 Hz: 0.075 mm / 57...150 Hz:1g) Protection category IP 66/67 equivalent to NEMA type 4X (housing) and type 6P (antenna)
  • Page 104 TECHNICAL DATA OPTIWAVE 7300 C Process connections Thread G 1½; 1½ NPT Flange version Flange version Flange version Flange version DN40…150 in PN16, PN40, PN63 or PN100; others on request ASME 1½¨…8¨ in 150 lb, 1½¨...6¨ in 300 lb, 1½¨...4¨ in 600 lb or 900 lb; others on request 40…100A in 10K;...
  • Page 105 TECHNICAL DATA OPTIWAVE 7300 C Error current FDE Typically 0 mA (FDE =Fault Disconnection Electronic) Address range 0...125. Default address: 126. FOUNDATION Fieldbus FOUNDATION Fieldbus FOUNDATION Fieldbus FOUNDATION Fieldbus Type 4-wire (+ local HART) level transmitter; K-band FMCW radar Function blocks 1 ×...
  • Page 106 TECHNICAL DATA OPTIWAVE 7300 C CSA - Dual Seal-approved CEC Section 18 (Zone ratings) CEC Section 18 (Zone ratings) CEC Section 18 (Zone ratings) CEC Section 18 (Zone ratings) (approval for Drop antenna, Cl. I, Zone 1, Ex d, IIC (Probe: Zone 0) T6...T3;...

  • Page 107: Antenna Selection

    TECHNICAL DATA OPTIWAVE 7300 C 8.3 Antenna selection The graphs below show which antenna to select for the application based on: • D, the measuring range, • ε , is the dielectric constant of the product being measured Figure 8-2: Selection of antenna for liquid applications (graph of distance in m against ε...

  • Page 108: Guidelines For Maximum Operating Pressure

    TECHNICAL DATA OPTIWAVE 7300 C 8.4 Guidelines for maximum operating pressure WARNING! Make sure that the devices are used within their operating limits. Figure 8-4: Pressure / temperature de-rating (EN 1092-1), flange and threaded connection, in °C and barg 1500...
  • Page 109 TECHNICAL DATA OPTIWAVE 7300 C Figure 8-6: Pressure / temperature de-rating (ASME B16.5), flange and threaded connections, in °C and barg 1500 1400 1300 1200 1100 1000 100 120 300 320 380 400 Figure 8-7: Pressure / temperature de-rating (ASME B16.5), flange and threaded connections, in °F and psig 1 p [barg] 2 T [°C]...

  • Page 110: Dimensions And Weights

    TECHNICAL DATA OPTIWAVE 7300 C 8.5 Dimensions and weights Housing Figure 8-8: Housing dimensions 1 Housing front view 2 Housing side view Dimensions and weights in mm and kg Dimensions [mm] Weights [kg] Housing 158.5 1 If fitted with standard cable glands...
  • Page 111 TECHNICAL DATA OPTIWAVE 7300 C Weather protection Figure 8-9: Dimensions of the weather protection option 1 Weather protection, back view 2 Weather protection, left side view Dimensions and weights in mm and kg Dimensions [mm] Weights [kg] Weather 231.5 protection...
  • Page 112 TECHNICAL DATA OPTIWAVE 7300 C DN40/1.5¨ horn antenna versions Figure 8-10: DN40 or 1.5¨ horn antenna versions 1 DN40/1.5¨ horn antenna with G 1½ or 1½ NPT thread connection 2 DN40/1.5¨ horn antenna with flange connection Dimensions and weights in mm and kg...
  • Page 113 TECHNICAL DATA OPTIWAVE 7300 C DN50/2¨ horn antenna versions Figure 8-11: DN50/2¨ horn antenna versions 1 DN50/2¨ horn antenna with G 1½ or 1½ NPT thread connection 2 DN50/2¨ horn antenna with flange connection Dimensions and weights in mm and kg...
  • Page 114 TECHNICAL DATA OPTIWAVE 7300 C DN80/3¨ horn antenna versions Figure 8-12: DN80/3¨ horn antenna versions 1 DN80/3¨ horn antenna with G 1½ or 1½ NPT thread connection 2 DN80/3¨ horn antenna with flange connection Dimensions and weights in mm and kg...
  • Page 115 TECHNICAL DATA OPTIWAVE 7300 C DN100/4¨ horn antenna versions Figure 8-13: DN100/4¨ horn antenna versions 1 DN100/4¨ horn antenna with G 1½ or 1½ NPT thread connection 2 DN100/4¨ horn antenna with flange connection Dimensions and weights in mm and kg...
  • Page 116 TECHNICAL DATA OPTIWAVE 7300 C DN80/3¨ Drop antenna versions Figure 8-14: DN80/3¨ Drop antenna versions 1 DN80/3¨ Drop antenna with G 1½ or 1½ NPT thread connection 2 DN80/3¨ Drop antenna with flange connection 3 DN80/3¨ Drop antenna, with PP or PTFE flange plate protection option...
  • Page 117 TECHNICAL DATA OPTIWAVE 7300 C DN50/2¨ Hygienic antenna versions Figure 8-15: DN50/2¨ Hygienic antenna versions 1 DN50/2¨ Hygienic antenna with DIN 11851 connection ® 2 DN50/2¨ Hygienic antenna with Tri-Clamp connection ® 3 DN50/2¨ Hygienic antenna with Neumo BioControl connection 4 DN50/2¨...

  • Page 118: Appendix

    9.1 Order form You can help us to assist you as quickly as possible by giving us a few items of information. Then just fax them to us. Your personal KROHNE consultant will contact you within 24 hours. 9.1.1 Device data...

  • Page 119: Rating Data

    APPENDIX OPTIWAVE 7300 C 9.1.2 Rating data Product name: Operating pressure: Rated pressure: Process connection temperature: Ambient temperature: Operating density: Measurand (level, volume,...): Tank height: Comments (indoors, exposed to weather, ...): 9.1.3 Contact data Company: Contact person: Telephone number: Fax number: E-mail: 9.2 Glossary...
  • Page 120 APPENDIX OPTIWAVE 7300 C Hazardous area Hazardous area Hazardous area Hazardous area An area with a potentially explosive atmosphere. Trained personnel can install and use a device in this area. The device must be ordered with the appropriate options. The device requires approvals (ATEX, IEC Ex, FM, CSA, NEPSI etc.) related to site specifications.
  • Page 121 APPENDIX OPTIWAVE 7300 C Tank Bottom Following (TBF) mode is an alternative measurement mode. It allows the device to measure tank contents with low dielectric constants. TBF mode uses the reflection of the tank bottom to indirectly measure the level of the tank contents.
  • Page 122 APPENDIX OPTIWAVE 7300 C Figure 9-2: Measurement definitions: level 1 Level 2 Volume or mass www.krohne.com 04/2010 - 4000172403 - HB OPTIWAVE 7300 R05 en...
