Trim kits.

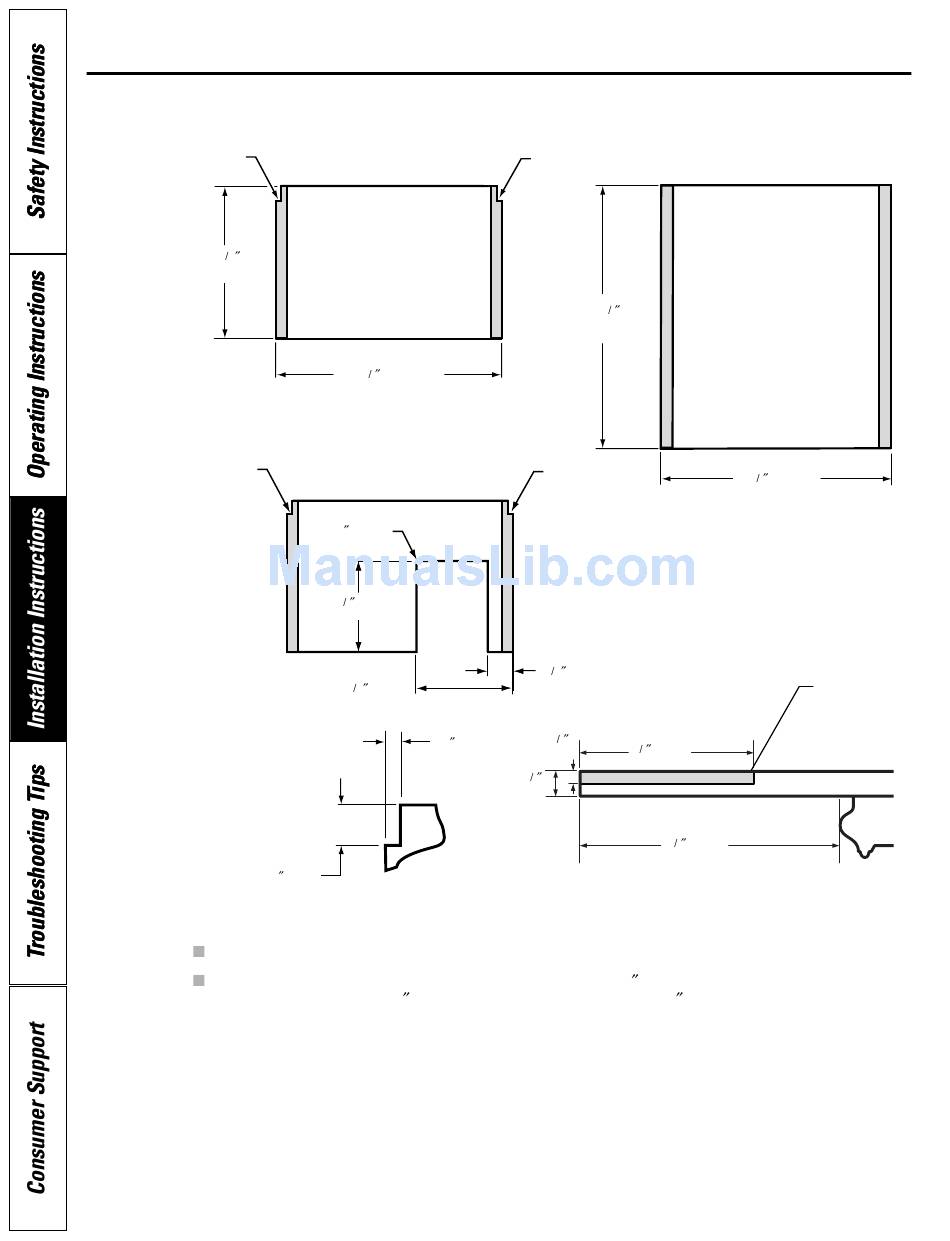

Dimensions for Custom Wood Panels
Cut-Out
24 1 16
(61.1 cm)
Cut-Out
5/16 (8 mm)
The areas at the top of the freezer panels need to be cut out of the panels.
The shaded areas indicate areas that must be routed out by 1/8 (3 mm) on the backside
(handle side only) of the 1/4 (6 mm) panel. For panels less than 1/8 (3 mm) thick, these
areas can be cut out of the filler panels.
14
Freezer Panel
Without Dispenser
35 3 4 (90.8 cm)
Freezer Panel
With Dispenser
FRONT
3/8 (10 mm)
14 7 8 (37.8 cm)
15 7 16 (39.2 cm)
1/8 (3 mm)
Freezer Panel
Corner Cut-Out
Cut-Out
42 1 4
(107.3 cm)
Cut-Out
3 15 16 (10.1 cm)
Top View–Handle Side
1 8
(3 mm)
1 3 4 (4.4 cm)
1 4
(6 mm)
2 5 8 (6.5 cm)
Fingertip Clearance
Refrigerator Panel
35 3 4 (90.8 cm)
Area to be routed
on back handle
side to allow for
mounting screws
Back of Panel
Front of
Panel
