GE Profile PTI22MBM Dimension Manual

TM
PTI22MBM - GE Profile

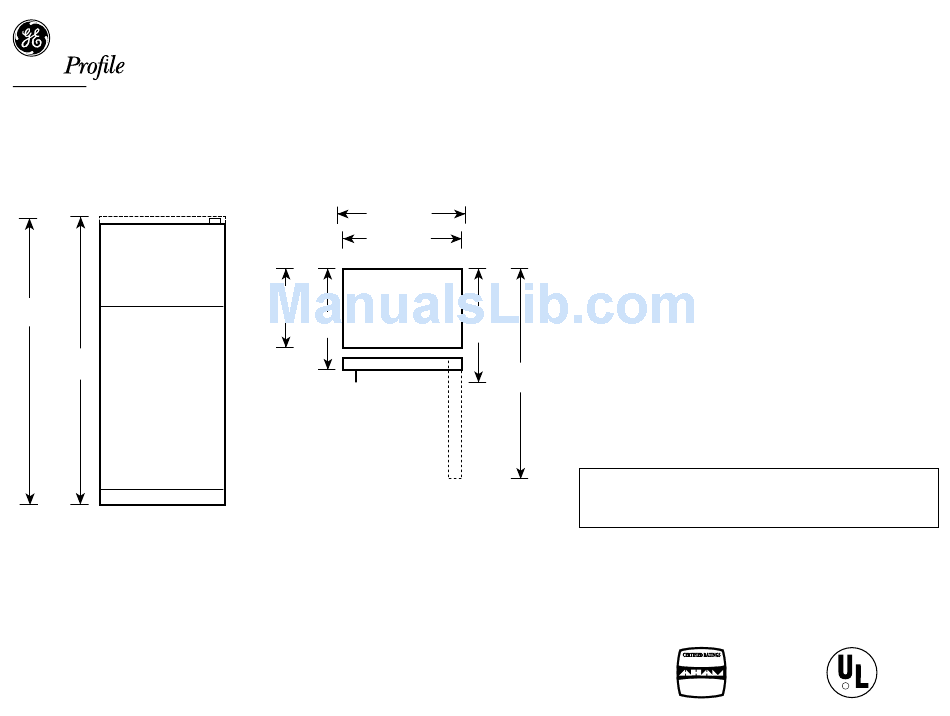

Case Dimensions (in inches/cm.)
68-3/4
69-7/8
Front View
Specification Created 12/00
™ 21.9 Cu. Ft. CustomStyle
23-3/4
26-3/4
Top View
™ Top-Freezer Refrigerator
36-5/8
35-3/4
28-3/8
61
Clearances
Handle Side Clearance
–At least 2" (51 mm) on the handle side for fingertip clearances.
Top and Bottom Clearance
–At least 3/16" (4.75 mm) at the top and bottom edges to allow for
trim flange.
Hinge Side Clearance
• A 3/4" (19 mm) thick door panel may strike thje adjacent countertops
when the door is fully opened. Therefore, the hinge side clearance to
raised panel will vary according to installation situation.
–Allow 1-3/4" (44 mm) clearance when installation does not include
side panels.
–The installation of 3/4" (19 mm) thick side panels requires less
clearance because the space between the door and adjacent
countertop is wider.
• To avoid door contact to countertop consider:
–Miter the corner of the adjacent countertops 45°, or
–pull the refrigerator forward enough to avoid contact.
IMPORTANT: Before finalizing specifications for your GE Profile Performance
CustomStyle ™ Refrigerator, Please NOTE:
• A minimum of 36" is required for refrigerator installation
• Be sure to allow for 1/2" or 3/4" side panels in addition to the 36" minimum
