Mounting
1. Disconnect the power supply.
2. Fix the relay on a rail in the control box.
3. Connect the power wires to terminals 1-3, any polarity for AC
voltage and for DC voltage: connect „+" to terminal 3, „–" to
terminal 1.
4. Momentary switches connected in parallel connect to terminal
6 and the wire, to which terminal 3 is connected.
5. Powered receiver connect in series to terminals 11-12.

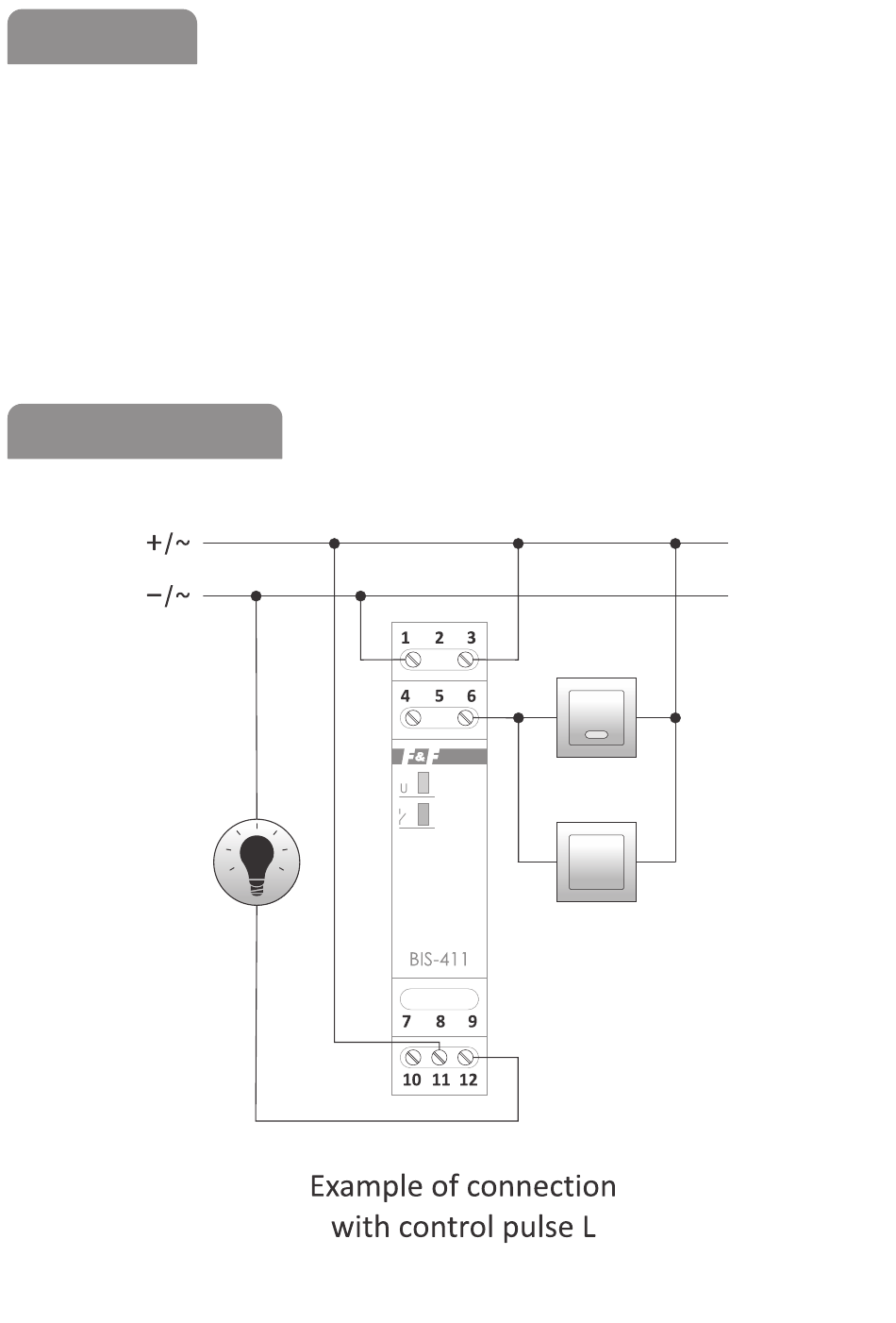

Wiring diagram
- 2 -
