Vidicode V-Tap VoIP 1 Quick Manual

Quick Guide for the V-Tap VoIP 1 & 2

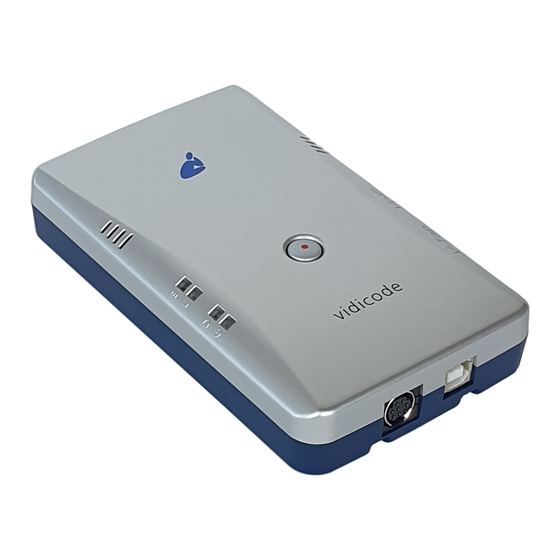

The V-Tap VoIP is a device that captures VoIP telephony from a network and

stores this data onto an SD card and/or sends this data to a server, which can be

an Apresa recorder or the V-Archive software running on a PC.

The V-Tap VoIP unit itself must hold as many channel licenses as the number of

VoIP telephones that needs to be recorded

NOTE1: The SD card must be formatted with the FAT32 file system. Cards above 32 GB (up to 2 TB)

are not tested and must be formatted as FAT32 first, before inserting them into the V-Tap.

NOTE2: Only ports PHONE2 and PHONE3 are suitable to connect a Power over Ethernet (PoE) loop.

The V-Tap itself does not generate PoE.

• V-Tap VoIP unit

• USB adapter

• USB cable

• LAN cable

• SD card

• CD with manual and V-Archive software for the PC

• 1 year Support & Update license (S&U)

• This Quick Guide

v1.12

BOX CONTENT

1/4

Table of Contents

Do you have a question about the V-Tap VoIP 1 and is the answer not in the manual?

Page 1 Quick Guide for the V-Tap VoIP 1 & 2 The V-Tap VoIP is a device that captures VoIP telephony from a network and stores this data onto an SD card and/or sends this data to a server, which can be an Apresa recorder or the V-Archive software running on a PC.
Page 2 Quick Guide for the V-Tap VoIP 1 & 2 HARDWARE INSTALLATION • By default, the V-Tap VoIP functions as a normal 4-port switch. • Connect the local network to any port on the V-Tap. • Connect one or more VoIP phones to any other port on the V-Tap.
Page 3 Quick Guide for the V-Tap VoIP 1 & 2 PC REQUIREMENTS FOR THE V-ARCHIVE SOFTWARE Windows Vista/7/8/10 , Intel Pentium >2GHz , 4GByte RAM , >100 MB free disk space. V-ARCHIVE SOFTWARE INSTALLATION 1. Connect the V-Tap VoIP to a free USB port on your PC.
Page 4 Quick Guide for the V-Tap VoIP 1 & 2 CHECKLIST FOR TUNNEL CONNECTION A connection between V-Tap and PC software (or Apresa) is needed to get the recorded data automatically into a user accessible database. The following checklist can be used to setup this Tunnel connection: 1) Install the Hardware and be sure that the phone’s VoIP data passes the V-Tap VoIP.
