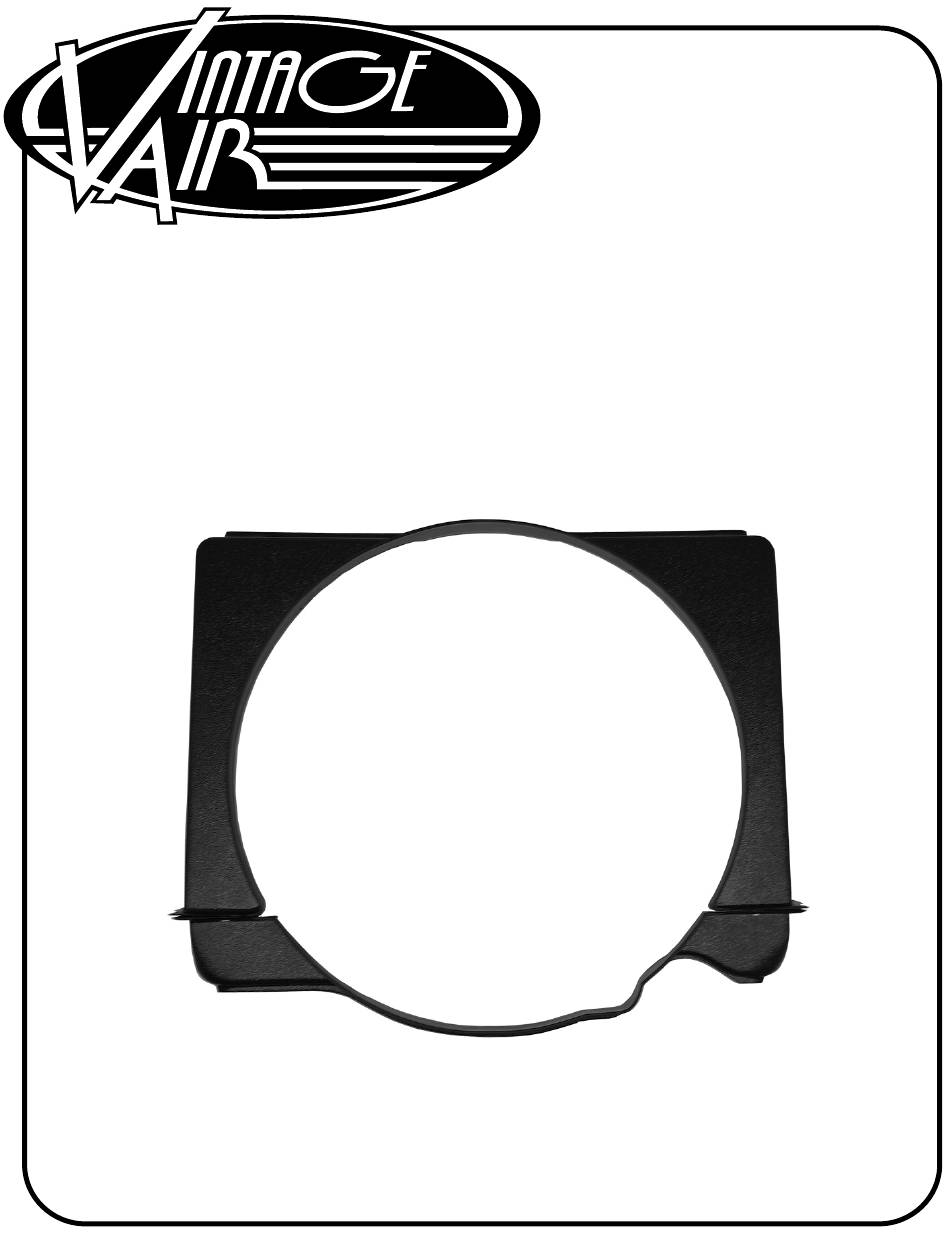

- Page 1 ISO 9001:2015 Registered Company 1955-57 Chevrolet V8 18” Fan Shroud (37155-VCF) 18865 Goll St. San Antonio, TX 78266 Phone: 800-862-6658 Sales: sales@vintageair.com Tech Support: tech@vintageair.com www.vintageair.com 907155 REV B 09/27/21, PG 1 OF 7...
- Page 2 Table of Contents www.vintageair.com Cover..........................Table of Contents......................... Packing List/Parts Disclaimer....................Core Support Measurements....................Important Information, Engine Compartment Disassembly............Fan Shroud Installation......................Packing List......................... 907155 REV B 09/27/21, PG 2 OF 7...
- Page 3 Shroud, Fan, Bottom ** Before beginning installation, open all packages and check contents of shipment. Please report any shortages directly to Vintage Air within 15 days. After 15 days, Vintage Air will not be responsible for missing or damaged items.
- Page 4 Fan Shroud Measurements www.vintageair.com 24 ½” 4 ¾” 20” 21” 3 ¾” 907155 REV B 09/27/21, PG 4 OF 7...
- Page 5 Important Information • The Vintage Air fan shroud is designed for an 18” heavy duty fan (#32918-VUF). • With power steering, it may be necessary to space the fan forward 3/8”. A spacer kit (#32155-VCF) is available from Vintage Air.
- Page 6 Fan Shroud Installation www.vintageair.com Insert the bottom half of the fan shroud (See Figure 1, below). Install the top half of the fan shroud to the radiator using (4) OEM radiator support bolts (See Figure 2, below). If applicable, check for clearance at the power steering pump drive pulley. Trim for clearance if necessary. Secure the bottom half of the fan shroud with (4) 10-32 x 1/2”...
- Page 8 Packing List: Fan Shroud Kit (37155-VCF) www.vintageair.com Part No. Description Qty. 18250-VUB Screw, 10-32 x 1/2”, Pan Head 18123-VUB Washer, 3/16” x 1/2”, SAE Flat 32802-VCF Shroud, Fan, Top 328030 Shroud, Fan, Bottom Checked By: Packed By: Date: NOTE: Images may not depict actual parts and quantities. Refer to packing list for actual parts and quantities.
