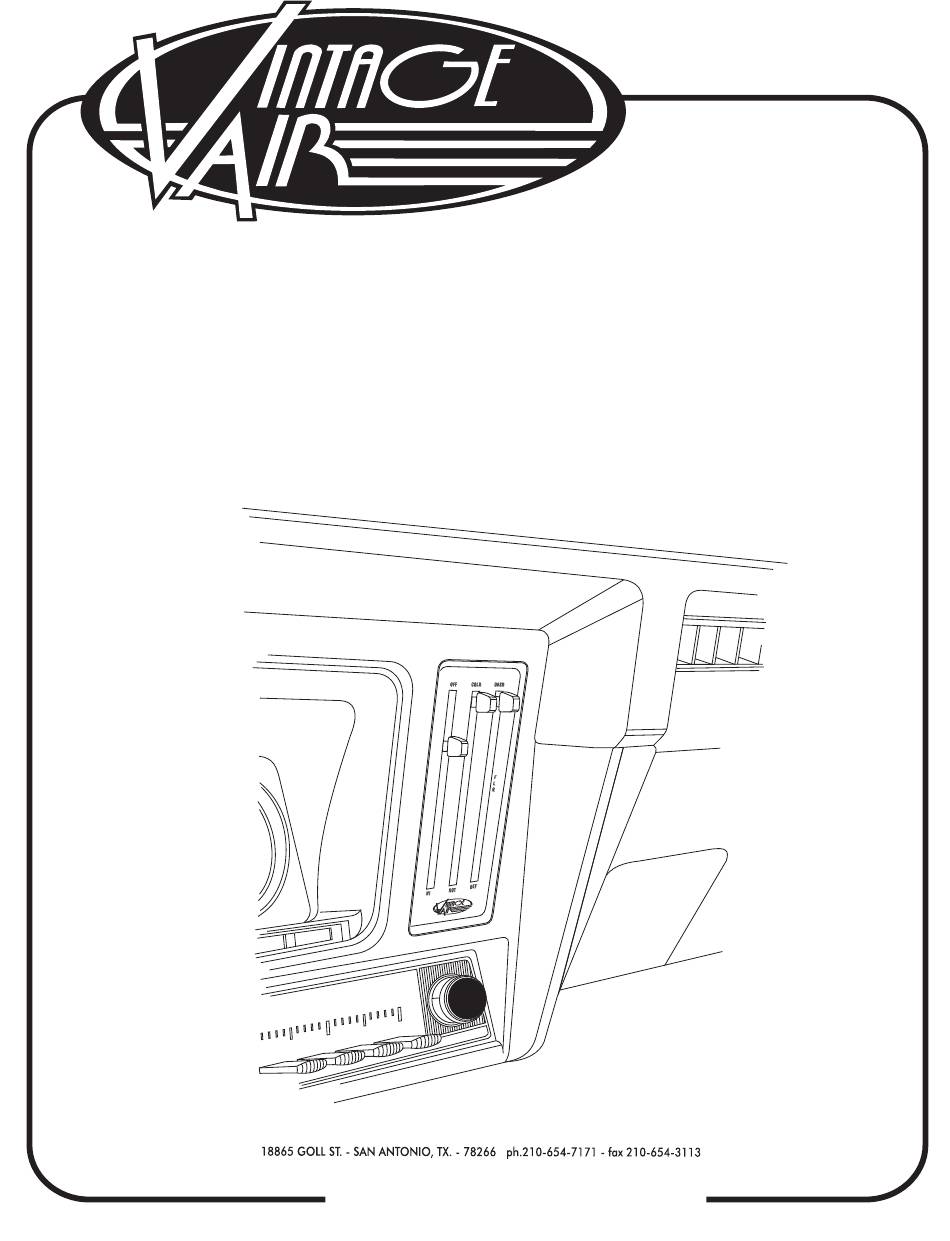

- Page 1 ISO 9001: 2008 Registered Company 1969-72 NOVA WITHOUT AC CONTROL PANEL CONVERSION KIT 474171 904270 REV D 4/14/15, 1969-72 NOVA w/o AC CONTROL PANEL KIT PG 1 OF 16...
-
Page 2: Table Of Contents
Table of Contents PAGES COVER TABLE OF CONTENTS PACKING LIST/ PARTS DISCLAIMER REMOVING OEM CONTROL PANEL CABLE CONVERTER ASSEMBLY MODIFICATION FIGURES 1 & 2 CABLE CONVERTER ASM MOUNTING CLAMP INSTALLATION PLACARD INSTALLATION FIGURES 3 & 4 CABLE CONVERTER ASM INSTALLATION (DASH/FLR/DEF CABLE CONVERTER ASM) FIGURE 5 CONTROL HARNESS FIGURES 5a &... - Page 3 CONTROL KIT CONTROL KIT PACKING LIST 474171 PART No. DESCRIPTION 484069-PCR 69 CAMARO w/o AC PLACARD w/ BLACK BACKING SHEET 112002-SUA CABLE CONVERTER ASM 232002-VUA GEN IV UNIVERSAL CONTROL HARNESS 65976-VUE 3/16” PUSH-ON RING 491010-VUR CABLE CONVERTER CLAMP 21301-VUP 4” TIE WRAP...
-
Page 4: Removing Oem Control Panel
CONTROL PANEL CONVERSION INSTRUCTIONS FOR 1969-72 NOVA w/o AC REMOVING OEM CONTROL PANEL REMOVE THE (3) OEM MOUNTING SCREWS FROM INSTRUMENT PANEL OF DASH SEE FIGURE 1 BELOW DISCONNECT CABLES AND WIRES FROM BACK OF CONTROL PANEL. NOTE: MAKE SURE THE GLOVE BOX AND GLOVE BOX DOOR HAVE BEEN REMOVED. - Page 5 CABLE CONVERTER ASSEMBLY MOUNTING CLAMP INSTALLATION INSTALL CABLE CONVERTER ASM MOUNTING CLAMPS, SEE FIGURE 3 BELOW CABLE CONVERTER FIGURE 3 CABLE CONVERTER ASM MOUNTING CLAMP OFF/HI DASH/FLR/DEF COLD/HOT CABLE CONVERTER CABLE CONVERTER CABLE CONVERTER ASSEMBLY ASSEMBLY ASSEMBLY ORIENT CABLE CONVERTER ASSEMBLIES AS SHOWN AND INSTALL MOUNTING CLAMPS AS SHOWN. (NOTE: ORIENT CLAMPS IN RELATION TO THE (3) HOUSING SNAPS ON CABLE CONVERTER ASSEMBLY) PLACARD INSTALLATION REMOVE LEVER KNOBS...
-
Page 6: Cable Converter Assembly Installation (Off/Hi Cable Converter Asm)
CABLE CONVERTER ASSEMBLY INSTALLATION DASH/FLR/DEF CABLE CONVERTER ASSEMBLY INSTALL CABLE CONVERTER ASM ON THE DASH/FLR/DEF LEVER. SEE FIGURE 5 BELOW. INSTALL CABLE CONVERTER LEVER PUSH ROD ONTO OEM CABLE MOUNTING STUD ON LEVER. SEE FIGURE 5 BELOW. SECURE THE CABLE CONVERTER ASM TO THE CONTROL PANEL USING THE OEM SCREW IN THE OEM CABLE CLAMP MOUNTING LOCATION. -
Page 7: Control Harness
CONTROL HARNESS LOCATE THE CONTROL PANEL WIRE HARNESS AND PLUG THE CORRESPONDING WIRES INTO THE CORRECT CABLE CONVERTER ASSEMBLY AS SHOWN IN FIGURE 5a BELOW. WHT/YEL DASH/FLR/DEF SLIDE WHT/YEL POT ASSEMBLY FIGURE 5a ONCE WIRES ARE CORRECTLY PLUGGED INTO CABLE CONVERTER ASSEMBLY, SECURE WIRES TO THE CABLE CONVERTER ASSEMBLY USING TIE WRAPS (SUPPLIED). -
Page 8: Control Harness
CABLE CONVERTER ASSEMBLY INSTALLATION OFF/HI CABLE CONVERTER ASSEMBLY INSTALL CABLE CONVERTER ASM ON THE OFF/HI LEVER. SEE FIGURE 6 BELOW. INSTALL CABLE CONVERTER LEVER PUSH ROD ONTO OEM CABLE MOUNTING STUD ON LEVER. SEE FIGURE 6 BELOW. SECURE THE CABLE CONVERTER ASM TO THE CONTROL PANEL USING THE OEM SCREW IN THE OEM CABLE CLAMP MOUNTING LOCATION. -
Page 9: Control Harness Cont
CONTROL HARNESS CONT. ONCE WIRES ARE CORRECTLY PLUGGED INTO CABLE CONVERTER ASSEMBLY, SECURE WIRES TO THE CABLE CONVERTER ASSEMBLY USING TIE WRAPS (SUPPLIED). SEE FIGURE 6b BELOW. THE TIE WRAP MUST BE LOCATED BETWEEN THE END OF THE WIRE JACKET AND THE STEP IN THE CABLE CONVERTER HOUSING FORCING A BEND IN EACH WIRE AS THEY PASS OVER THE STEP IN CABLE CONVERTER HOUSING. - Page 10 CONTROL HARNESS LOCATE THE CONTROL PANEL WIRE HARNESS AND PLUG THE CORRESPONDING WIRES INTO THE CORRECT CABLE CONVERTER ASSEMBLY AS SHOWN IN FIGURE 7a BELOW. WHT/RED WHT/RED COLD/ HOT CABLE CONVERTER ASSEMBLY FIGURE 7a ONCE WIRES ARE CORRECTLY PLUGGED INTO CABLE CONVERTER ASSEMBLY, SECURE WIRES TO THE CABLE CONVERTER ASSEMBLY USING TIE WRAPS (SUPPLIED).
-
Page 11: Final Steps
CONTROL HARNESS CONT. USING THE SUPPLIED TIE-WRAPS, TIE THE WIRES TO THE CONTROL PANEL AS SHOWN IN FIGURE 8 BELOW. CONFIRM THAT WIRES ARE SECURED AND DO NOT INTERFERE WITH LEVER OPERATION OR CABLE CONVERTER ASSEMBLIES. UNUSED RED, WHT/BLUE, NOTE: TIE THE UNUSED WIRE TO THE CONTROL PANEL APPROXIMATELY AS SHOWN, ENSURE WHT WIRE THAT THE WIRE DOES NOT INTERFERE WITH... -
Page 12: Control Panel Calibration Procedure
Control Panel Calibration Procedure On Vintage Air Gen IV systems using factory controls, it is necessary to calibrate the system to your specific control panel. This procedure ensures that the stroke of your control panel levers or knobs is translated into precise control of the fan speed, temperature blend and mode door position. -
Page 13: Control Panel Calibration Procedure Cont
Control Panel Calibration Procedure (Cont.) 1. Turn on the ignition switch (Do not start the engine). COLD DASH 2. Move the control levers/knobs to the position shown. 3. Connect the white jumper wire to the gray program wire. Wait for the blower speed to change (Approximately 5 seconds). -
Page 14: Wiring Diagram
Wiring Diagram 232007-VUR AC ANNUNCIATOR BACKLIGHT POS BACKLIGHT NEG 5V-SW WHT/RED TEMP WIPER WHT/YEL MODE WIPER WHT/GRN FAN WIPER PRE-WIRED VIEWED FROM WIRE SIDE GEN IV ECU 232002-VUA GEN IV WIRING DIAGRAM (IF USED) REV D, 5/6/2014 TEMP MODE PROGRAM * DASH LAMP (IF USED) *** WIDE OPEN... -
Page 15: Operation Of Controls
OPERATION OF CONTROLS NOTE: CONTROLS MUST BE CALIBRATED FOR PROPER OPERATION-REFER TO CONTROL PANEL INSTRUCTIONS. THE TEMPERATURE LEVER TOGGLES BETWEEN A/C AND HEAT MODES. FOR A/C MODE SLIDE THE TEMPERATURE LEVER ALL THE WAY UP , FOR HEAT MODE SLIDE THE LEVER DOWN TO DISENGAGE THE COMPRESSOR, THEN MOVE THE LEVER TO SELECT DESIRED TEMPRATURE. - Page 16 CONTROL KIT CONTROL KIT PACKING LIST 474171 PART No. DESCRIPTION 484069-PCR 69 CAMARO w/o AC PLACARD w/ BLACK BACKING SHEET 112002-SUA CABLE CONVERTER ASM 232002-VUA GEN IV UNIVERSAL CONTROL HARNESS 65976-VUE 3/16” PUSH-ON RING 491010-VUR CABLE CONVERTER CLAMP 21301-VUP 4” TIE WRAP...
