- Page 1 ISO 9001:2015 Registered Company 1967-68 Chevrolet Camaro/ Pontiac Firebird without Factory Air OEM Louver Kit (49306-VCL) 18865 Goll St. San Antonio, TX 78266 Phone: 800-862-6658 Sales: sales@vintageair.com Tech Support: tech@vintageair.com www.vintageair.com 908306 REV D 08/02/18, PG 1 OF 6...
- Page 2 Table of Contents www.vintageair.com Cover..........................Table of Contents......................... Packing List......................... Driver & Passenger Side Dash Modifications (1967 Models Only)..........Driver Side OEM Louver Installation, Passenger Side OEM Louver Installation....... Packing List......................... 908306 REV D 08/02/18, PG 2 OF 6...
- Page 3 Template, Passenger Side Louver ** Before beginning installation, open all packages and check contents of shipment. Please report any shortages directly to Vintage Air within 15 days. After 15 days, Vintage Air will not be responsible for missing or damaged items.
- Page 4 Driver & Passenger Side Dash Modifications (1967 Models Only) www.vintageair.com NOTE: To accommodate the driver and passenger side louvers, it will be necessary to modify the dash by cutting (2) holes using the templates provided with this kit. Scribe the dash around the outer part of the template holes as shown in Photos 1 &...
- Page 5 Driver Side OEM Louver Installation www.vintageair.com Install the driver side OEM louver assembly into the dash as shown in Figure 1, below. Bracket Figure 1 Driver Side OEM Louver Assembly 493063 Passenger Side OEM Louver Installation Install the passenger side OEM louver assembly into the dash as shown in Figure 2, below. Bracket Figure 2 Passenger Side...

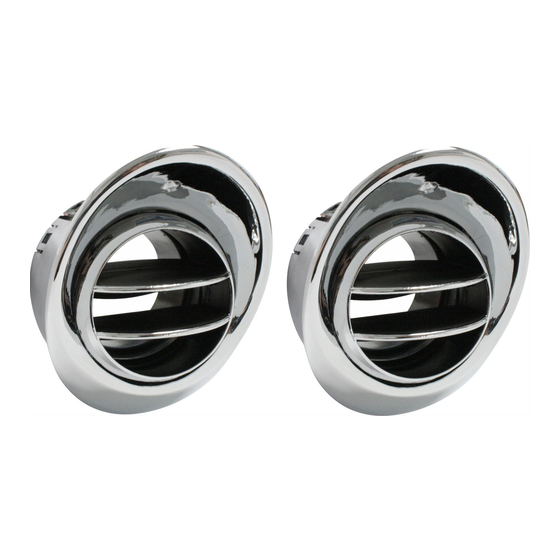

- Page 6 Packing List: OEM Louver Kit (49306-VCL) www.vintageair.com Qty. Part No. Description 493063 OEM Louver Assembly, Driver Side 493064 OEM Louver Assembly, Passenger Side 64070-VCB OEM Louver Bracket 640701 Template, Driver Side Louver 640700 Template, Passenger Side Louver Checked By: Packed By: Date: NOTE: Images may not depict actual parts and quantities.
