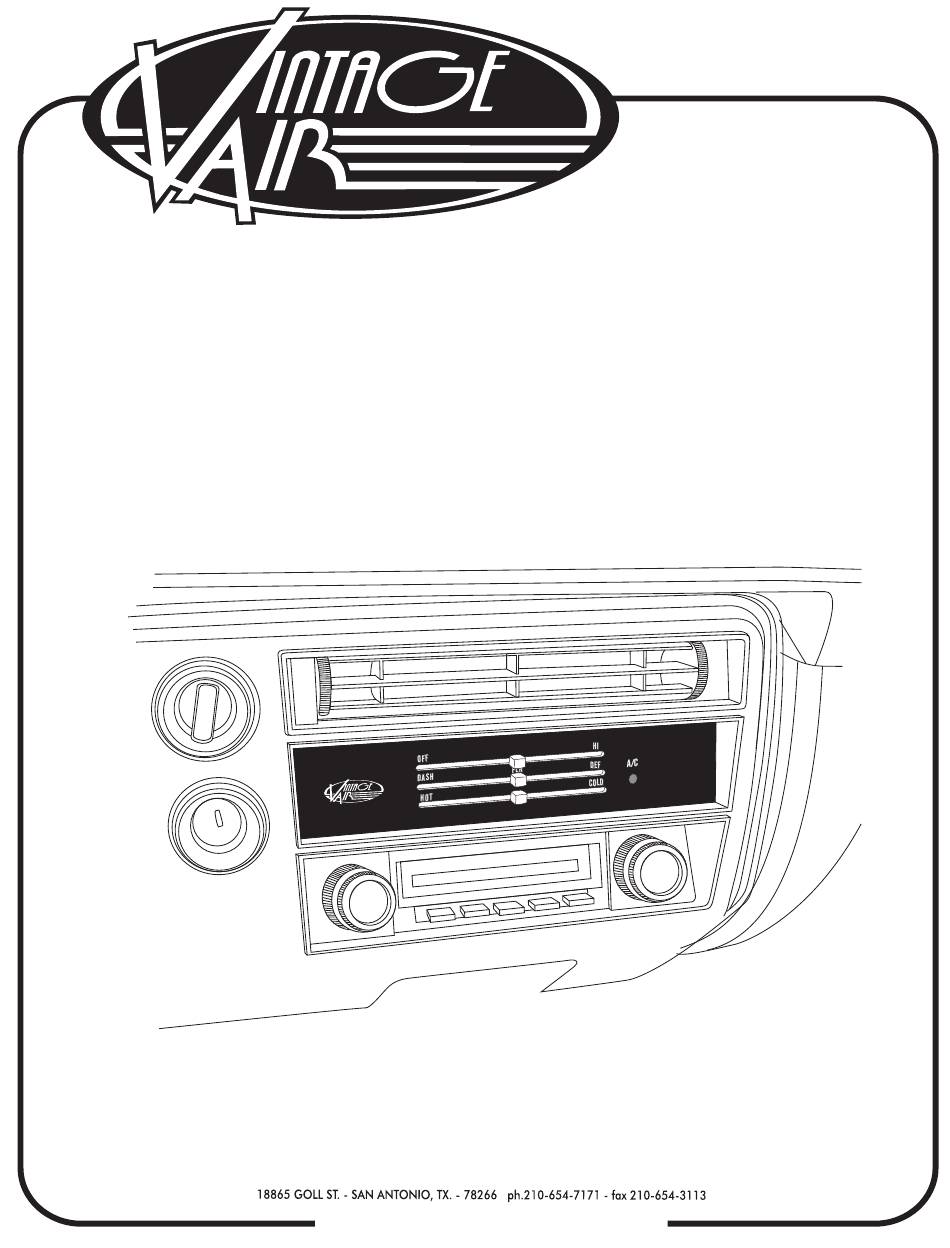

- Page 1 ISO 9001:2008 Registered Company 1968-69 CHEVELLE CONTROL PANEL CONVERSION KIT 473068 903068 REV B 9/18/14 , 1968-69 CHEVELLE CNTRL PNL INSTR PG 1 OF 8...
- Page 2 1968-69 CHEVELLE CNTRL PNL Table of Contents PAGES COVER TABLE OF CONTENTS PACKING LIST/ PARTS DISCLAIMER REMOVING OEM CONTROL PANEL CONTROL PANEL & CONTROL HARNESS INSTALLATION WIRING DIAGRAM OPERATION OF CONTROLS CONTROL PANEL KIT PACKING LIST 903068 REV B 9/18/14 , 1968-69 CHEVELLE CNTRL PNL INSTR PG 2 OF 8...
- Page 3 GEN IV UNIVERSAL CONTROL HARNESS (TYPE C) ** BEFORE BEGINNING INSTALLATION OPEN ALL PACKAGES AND CHECK CONTENTS OF SHIPMENT. PLEASE REPORT ANY SHORTAGES DIRECTLY TO VINTAGE AIR WITHIN 15 DAYS. AFTER 15 DAYS, VINTAGE AIR WILL NOT BE RESPONSIBLE FOR MISSING OR DAMAGED ITEMS.
- Page 4 1968-69 CHEVELLE CONTROL PANEL CONVERSION KIT INSTRUCTIONS REMOVING OEM CONTROL PANEL NOTE: REMOVAL OF DASHBOARD REQUIRED TO INSTALL THE CONTROL PANEL. VINTAGE AIR RECOMMENDS THAT YOU UTILIZE THE FACTORY SERVICE MANUAL WHEN YOU DISASSEMBLE AND REASSEMBLE THE DASHBOARD. DISCONNECT BATTERY GROUND CABLE.
- Page 5 1968-69 CHEVELLE CRTL PNL CONTROL PANEL AND CONTROL HARNESS INSTALLATION INSTALL CONTROL PANEL ASM TO BACK SIDE OF INSTRUMENT PANEL AS SHOWN IN FIGURE 2 BELOW. SECURE THE CONTROL PANEL ASM TO INSTRUMENT PANEL USING OEM SCREWS AS SHOWN IN FIGURE 2 BELOW.
- Page 6 1968-69 CHEVELLE CNTRL PNL Wiring Diagram 232007-VUR AC ANNUNCIATOR BACKLIGHT POS BACKLIGHT NEG 5V-SW WHT/RED TEMP WIPER WHT/YEL MODE WIPER WHT/GRN FAN WIPER PRE-WIRED VIEWED FROM WIRE SIDE GEN IV ECU 232002-VUA GEN IV WIRING DIAGRAM (IF USED) REV D, 5/6/2014 TEMP MODE PROGRAM...
- Page 7 1968-69 CHEVELLE CRTL PNL OPERATION OF CONTROLS NOTE: WHEN BATTERY POWER IS FIRST CONNECTED TO THE ECU, THE COMPUTER GOES THROUGH AN INITIALIZATION SEQUENCE.THIS INITIALIZATION MAY TAKE UP TO 30 SECONDS. DURING INITIALIZATION THE BLOWER WILL NOT OPERATE, BUT THE DOORS INSIDE THE UNIT WILL BE OPERATING. A LOW BATTERY OR DISCONNECTING THE BATTERY MAY ALSO TRIGGER ARE-INITIALIZATION.
- Page 8 1968-69 CHEVELLE CNTRL PNL CONTROL KIT CONTROL KIT PACKING LIST 473068 N o. Q TY. PART N o. DESC RIPTIO N 1968-69 CHEVELLE CNTRL PNL ASM 473067 232007-VUR GEN IV UNIVERSAL CONTROL HARNESS (TYPE C) C HEC KED BY: PAC KED BY: DATE: NOTE: IMAGES MAY NOT DEPICT ACTUAL PARTS AND QUANTITIES.
