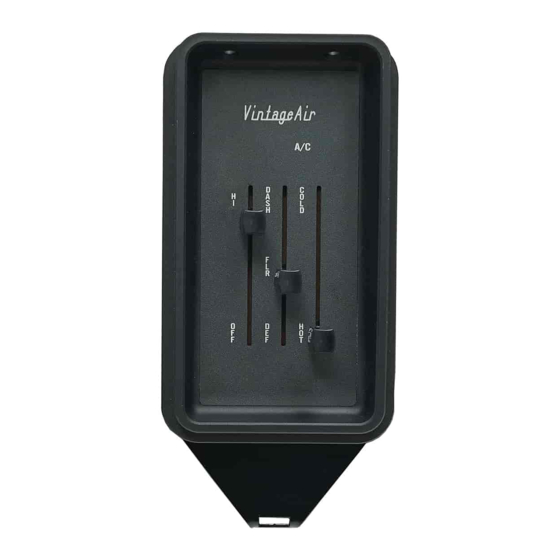

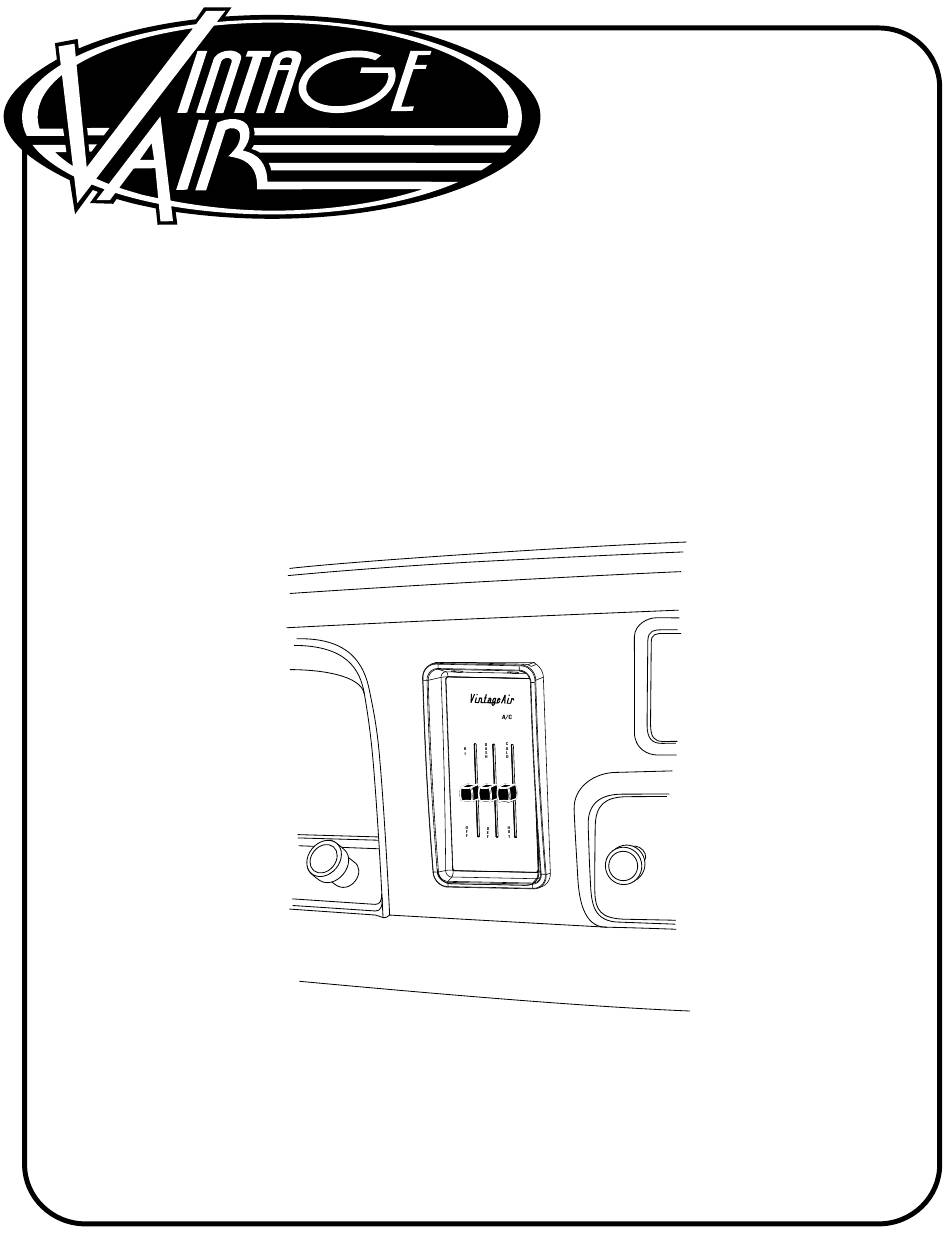

- Page 1 ISO 9001:2015 Registered Company 1964-66 Chevrolet Pickup Control Panel Kit (473275) (473276) 18865 Goll St. San Antonio, TX 78266 Phone: 800-862-6658 Sales: sales@vintageair.com Tech Support: tech@vintageair.com www.vintageair.com 901408 REV B 10/08/21, PG 1 OF 13...
-
Page 2: Table Of Contents
ECU. Please confirm that your unit has the proper ECU prior to installing the control panel as shown Service Info: below. A replacement ECU can be purchased from Vintage Air if needed. Evacuate the system for 35-45 minutes with system components (Drier, compressor, evaporator and condenser) at a temperature of at least 85°... - Page 3 231520 ** Before beginning installation, open all packages and check contents of shipment. Please report any shortages directly to Vintage Air within 15 days. After 15 days, Vintage Air will not be responsible for missing or damaged items. NOTE: Images may not depict actual parts and quantities.
- Page 4 Ground Wire ** Before beginning installation, open all packages and check contents of shipment. Please report any shortages directly to Vintage Air within 15 days. After 15 days, Vintage Air will not be responsible for missing or damaged items. NOTE: Images may not depict actual parts and quantities.
-
Page 5: Oem Control Panel
OEM Control Panel www.vintageair.com Perform the Following: Remove the (3) OEM mounting screws from the top and bottom of the dash (discard screws) (See Figure 1, below). NOTE: If vehicle is equipped with standard controls, remove the OEM fan switch and knob. -
Page 6: Control Panel Installation
Panel Figure 1 #8 U-Nut Dash Support Channel Control Panel NOTE: When using a Vintage Air Spacer supplied control panel, connect the tan wire from the Gen IV Evaporator wiring harness (232600-VUA) to the factory dash lights to enable panel backlighting. -
Page 7: Final Steps
Final Steps www.vintageair.com 1. Plug the other end of the control harness into the ECU as shown in Figure 1, below. Control Harness Figure 1 901408 REV B 10/08/21, PG 7 OF 13... -
Page 8: Control Panel Calibration Procedure
Calibration Procedure www.vintageair.com On Vintage Air Gen IV systems using cable converters or replacement electronic controls, it is necessary to calibrate the system to your specific control panel. This procedure ensures that the stroke of your control panel levers or knobs is translated into precise control of the fan speed, temperature blend and mode door position. -
Page 9: Control Panel Calibration Procedure (Cont.)
Control Panel Calibration Procedure (Cont.) www.vintageair.com For proper operation of your system when installing this control panel, you must calibrate the system. Please follow the procedure below. 1. Turn on the ignition switch (Do not start the engine). A / C 2. -
Page 10: Wiring Diagram
Wiring Diagram www.vintageair.com 232007-VUR AC ANNUNCIATOR BACKLIGHT POS BACKLIGHT NEG 5V-SW WHT/RED TEMP WIPER WHT/YEL MODE WIPER WHT/GRN FAN WIPER PRE-WIRED VIEWED FROM WIRE SIDE GEN IV ECU 232002-VUA GEN IV WIRING DIAGRAM (IF USED) REV E, 10/6/2017 TEMP MODE PROGRAM * DASH LAMP (IF USED) -
Page 11: Operation Of Controls
Operation of Controls www.vintageair.com On Gen IV systems with three lever/knob controls, the temperature control toggles between heat and A/C operations. To activate A/C, move the temperature lever/knob all the way to cold and then back it off to the desired vent temperature. -
Page 13: Packing List (473275)
Packing List: Control Panel Kit (473275) www.vintageair.com Qty. Part No. Description 473082 Control Panel Assembly, Chrome 232007-VUR Gen IV Universal Control Harness 182390 Screw, #8 x 1, Oval Head 182467 Screw, #8 x 3/4 Oval Head 647013 Spacer, Control Panel... -
Page 14: Packing List (473276)
Packing List: Control Panel Kit (473276) www.vintageair.com Qty. Part No. Description 473083 Control Panel Assembly, Black Anodized 232007-VUR Gen IV Universal Control Harness 182390 Screw, #8 x 1, Oval Head 182466 Screw, #8 x 3/4 Oval Head 647013 Spacer, Control Panel U-nut, #8 189801 231520...
