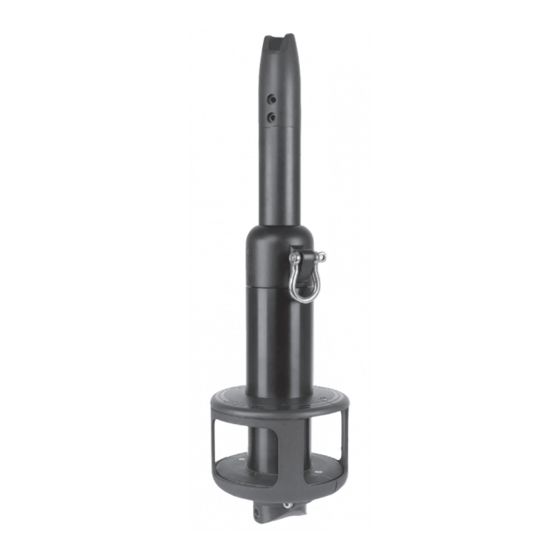

- Page 1 NAUTOR MKIV Jib Reefing & Furling Installation Manual C8436/C8437...
- Page 2 Parts 2' (610mm) Bottom Foil 7' (2.13m) Foils Halyard Swivel Connector Bushings Trim Cap Plastic Foil Screws Connector Wedges Connectors Bottom Connector Shackles Prefeeder Feeder 3,4, 6, 10mm 5200 Allen Wrenches Adhesive Blue Loctite ® Injector Toggle/Terminal Assembly Other Components Drum Assembly Part No.
- Page 3 Preassembly Headstay Length HEADSTAY CUT LENGTH Subtract the following from the headstay length and cut the stay at that point. HEADSTAY CUT LENGTH CHART Clevis Pin Size 22.2mm 25.4mm -30 rod (11.1 mm) 185mm — -40 rod (12.7 mm) — 229mm ROD COLDHEAD HEIGHT 6.5 mm...
- Page 4 Preparation Foil Length FOIL CUT LENGTH Foil cut length is based on pin-to-pin length as measured from cen- ter of upper pin (attaches the stay to the mast) to center of lower pin (attaches the furling unit to the boat). Measurement includes the masthead toggle.
- Page 5 Preassembly Short Top Foil If top foil is shorter than 9 " (248 mm), use one of the following special techniques to ensure sufficient bearing surface for the foil in the area of the halyard swivel. Cut-Offs Do Not Use "...
- Page 6 Assembly Top Foil Cut foil to length using a hacksaw. Deburr inside edge using a rat-tail file. Tip: Mark top foil to distinguish from cutoff piece. Lay top foil alongside cutoff piece and use a flat metal object (i.e. metal ruler) to scribe top line of foil.
- Page 7 Assembly Top Foil Cut out template at right. Line template up with top of foil and scribed line. Tape in place. Use a center-punch to mark holes. Check center-punch marks to confirm they are 3/8" (10mm) and 1 " (35mm) from top of foil.
- Page 8 Assembly Top Foil Install trim cap. Place each side over wire. Push trim cap into foil to start then tap in using hammer. Push trim cap into foil to start then tap in using hammer. Install trim cap screws. Place halves of plastic bushings on stay so hooked part of longer section faces out.
- Page 9 Assembly Top Foil/Connectors Slip 9.75" (248mm) connector on wire, mating hook of plastic bushing with connector. Loading Injector with Adhesive Tip: In cooler weather, keep sealed adhesive in pocket to keep warm. Use instructions below to fill injector less than half way; you will only use a small amount of adhesive.
- Page 10 Assembly Foils/Connectors Start plunger into injector and immediately hold upright so plunger is down and tip applicator is up. As sealant runs down towards the plunger an air pocket will form near the tip. Push plunger to evacuate the air. You are now ready to begin injecting adhesive.
- Page 11 Assembly Foils/Connectors Inject only a small amount. A Unit 3 will only take 1 to 1 ml graduation mark. Tip: When you see a small amount of adhesive enter one of the screw holes stop. You have applied enough adhesive. Use “ml”...
- Page 12 Assembly Bottom Foil/Connectors/Halyard Swivel Continue installing connectors and wedges. Make sure to use adhesive in screw holes. Continue assembly. Use 14" (356mm) bottom connector to assemble bottom foil. Slide halyard swivel onto foil above feeder window. Make sure taller “half” is up as shown.
- Page 13 Assembly Lower Unit Loosen foil clamp screws at top of lower unit. Slide drum assembly onto foils. Tip: Face clamp downwards so it clears foil notches when installing. Slide lower unit onto foils. Nautor MKIV Furling 4/18/07...
- Page 14 Assembly Toggle/Terminal Make sure halyard swivel and drum assem- bly have been slipped on the foils. Slip the rod adapter sleeve onto the rod. Sandwich the nosepiece over the rod and insert into the main body, narrow end first. Jiggle the sleeve or use a small screwdriver to push the nosepiece completely into sleeve.
- Page 15 Assembly Complete Unit Assembly Hammer the pin into the main body. Clean excess Loctite® from the terminal body. Tape around sleeve to secure pin. Lower drum assembly and slip clevis pin and cotter pin in place. Check foil height at top, set and secure using Allen wrench.
- Page 16 Assembly Attach Feeder/Final Foil Assembly Tip: Do not remove foil clamp screws to adjust foil. Loosen screws, hold foils and bring clamp away from foils. Adjust and reclamp. Slide halyard swivel above feeder. Place feeder in foil recess. Push screw down so tab catches under foil.
- Page 17 Commissioning Through Deck Installation/Race Conversion Installation of Lower Unit in Deck Hole 1) Use 10mm Allen wrench provided to remove 2 screws on bottom of guard assembly and remove two halves. Be careful—screws are not captive. 2) Use a 3mm Allen wrench to loosen four screws in plastic cover and flange.
- Page 18 Commissioning Halyard Wrap HALYARD WRAPS The most serious problem with furling systems occurs when the jib halyard wraps around the headstay foil. Halyard wraps will prevent furling or unfurling and may cause serious damage to the unit and the halyard. In severe cases, halyard wraps may cause headstay loss.
- Page 19 Commissioning Halyard Restrainer PENDANTS If your sail is not long enough to position the halyard swivel properly, you must add a pendant to the sail. Pendants should be plastic coated wire permanently attached to the sail so the height will be correct. Adjustable length pendants are not acceptable as they might not be adjusted correctly during a sail change.
- Page 20 Main Office and Harken Brandstore: Västmannagatan 81B SE-113 26 Stockholm Sweden Telephone: +46 303 618 75 • Fax:+46 303 618 76 Mailing address: Harken Sweden AB, Box 64, SE -440 30 Marstrand Email: harken@harken.se Harken Adriatik d.o.o. Obala 107, 6320 Portoroz, Slovenia Telephone/Fax: (386) 5-6774122 Web: www.harken.si •...
