Getting Started

Product Description

SELECT channel button
TDR on indicator
light
(80E08, 80E10)
Hold-down screw
Cable to remote
module

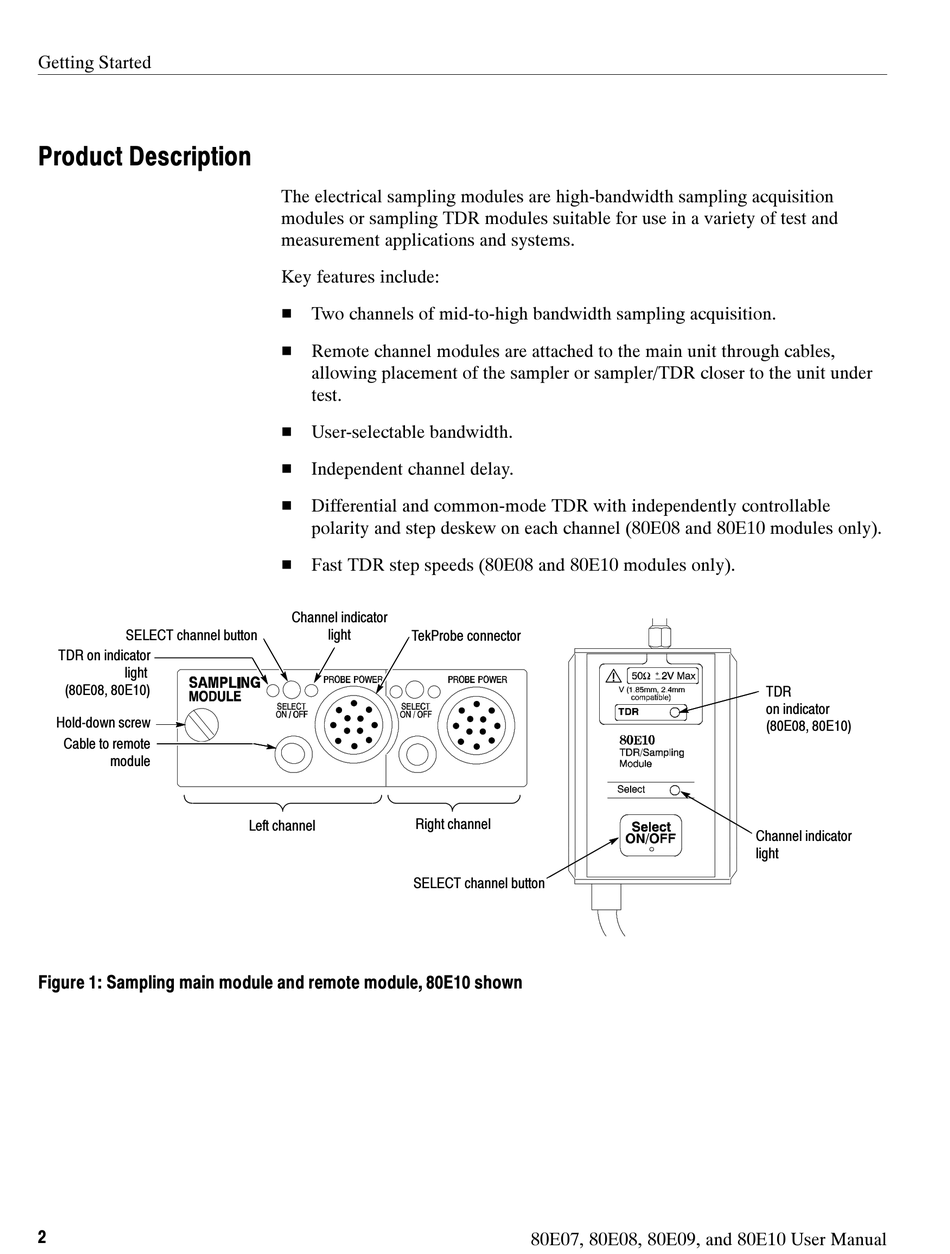

Figure 1: Sampling main module and remote module, 80E10 shown

2
The electrical sampling modules are high-bandwidth sampling acquisition
modules or sampling TDR modules suitable for use in a variety of test and
measurement applications and systems.
Key features include:
H Two channels of mid-to-high bandwidth sampling acquisition.
H Remote channel modules are attached to the main unit through cables,
allowing placement of the sampler or sampler/TDR closer to the unit under
test.
H User-selectable bandwidth.
H Independent channel delay.
H Differential and common-mode TDR with independently controllable
polarity and step deskew on each channel (80E08 and 80E10 modules only).
H Fast TDR step speeds (80E08 and 80E10 modules only).
Channel indicator
light
TekProbe connector
Right channel
Left channel
SELECT channel button
+
80E07, 80E08, 80E09, and 80E10 User Manual
TDR
on indicator
(80E08, 80E10)
Channel indicator
light
