Overview

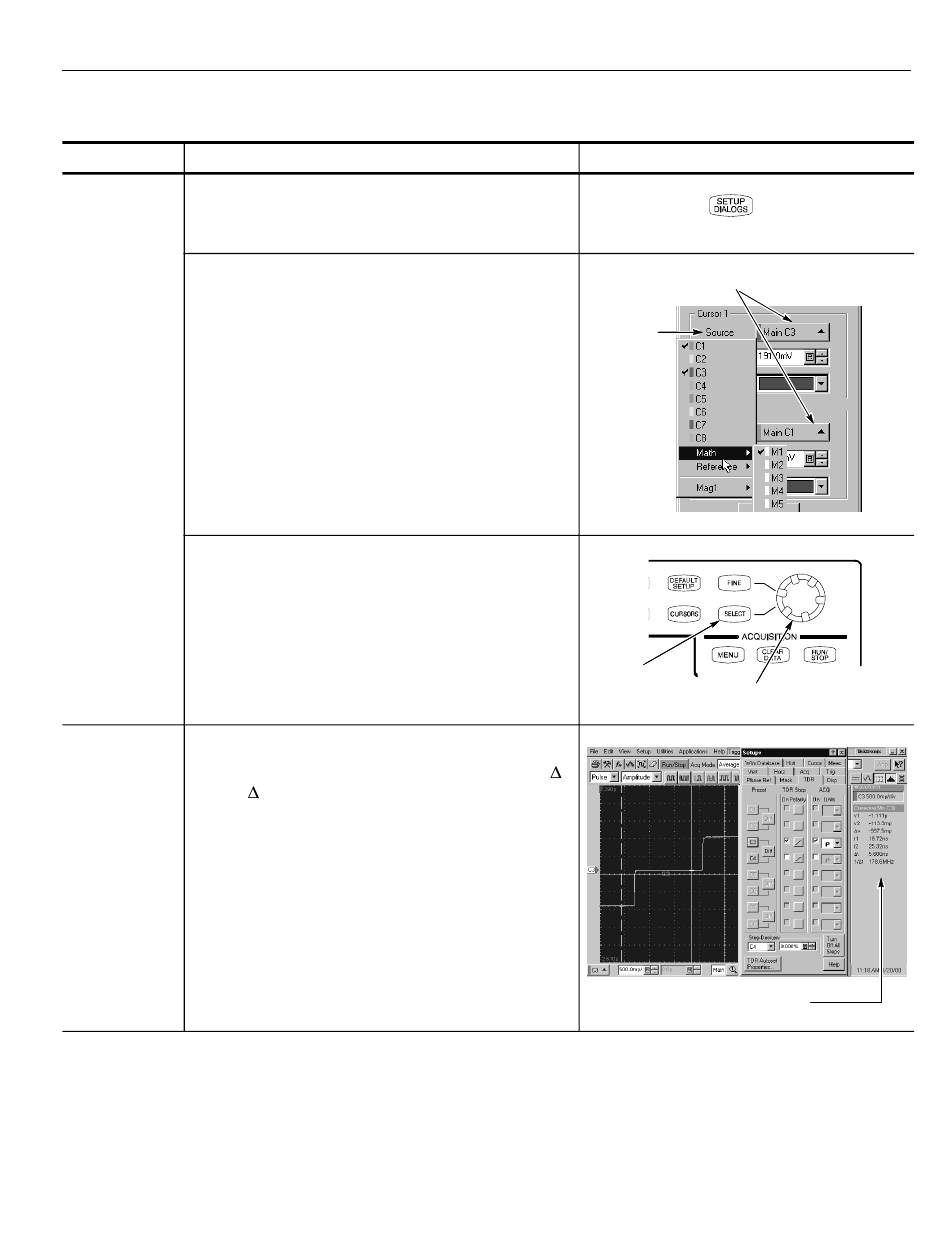

To take a TDR measurement (cont.)
Take cursor
23. Press the SETUP DIALOGS button and select the
measurements
Cursor tab.
24. Select the Waveform cursor type.
25. From the pop-up list for each of Cursor 1 and Cursor 2,
select your TDR source.
26. Press the SELECT button to toggle selection between
the two cursors. The active cursor is the solid cursor.
27. Turn the Adjust knob to position each cursor on the
math waveform to measure the feature that interests
you.
28. Read the results in the cursor readout.
In this figure, waveform cursors are used to measure v
and t of the waveform, which could be used to
compute its slope (dv/dt).
80E07, 80E08, 80E09, and 80E10 User Manual
Control elements & resources
Click to access sources
Select
source from
pop-up list
SELECT
button
Adjust knob
Cursor readout
Reference
27
