SET COMMUNICATION:

This section define the fundamental communication parameters of two buses,
EtherCAT and SNMP.
By Pressing the "Set Communication" button from the main window for SW67E24
(Fig. 2) the window "Set Communication" appears (Fig. 3).
The means of the fields for "EtherCAT Slave" are:
In the field "Revision
defined;
In the field "Slave Name" the name of the converter is defined;
In the field "Node Address" the ID of the converter is defined.
The means of the fields for "SNMP Manager" are:
In the field "IP ADDRESS" the IP address that you want to give to the SNMP
side is defined;
In the field "SUBNET Mask" the SubNet Mask of the SNMP side is defined;
In the field "GATEWAY" the default gateway that you want to use is defined.
This feature can be enabled or disabled pressing the Check Box field. This
feature is used for going out of the net;
In the field "Name of
node.
ADFweb.com S.r.l.
Number" the revision number of the converter is
Station" it is possible to assign a name to the SNMP
User Manual EtherCAT Slave / SNMP Manager
Document code: MN67E24_ENG Revision 1.000

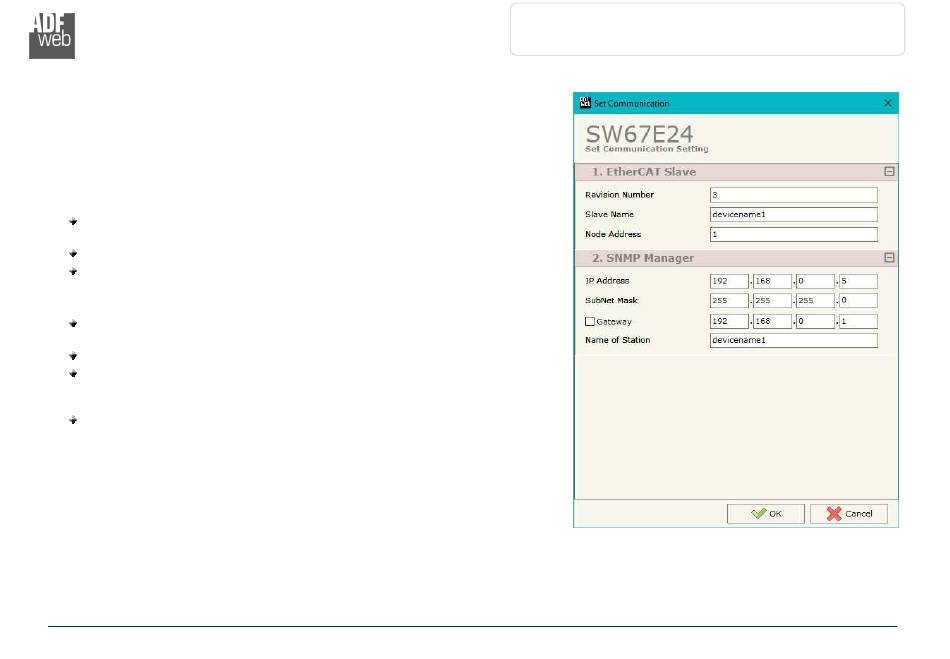

Figure 3: "Set Communication" window
