ETHERNET:
The Ethernet port is used for programming the device and for OPC UA communication.

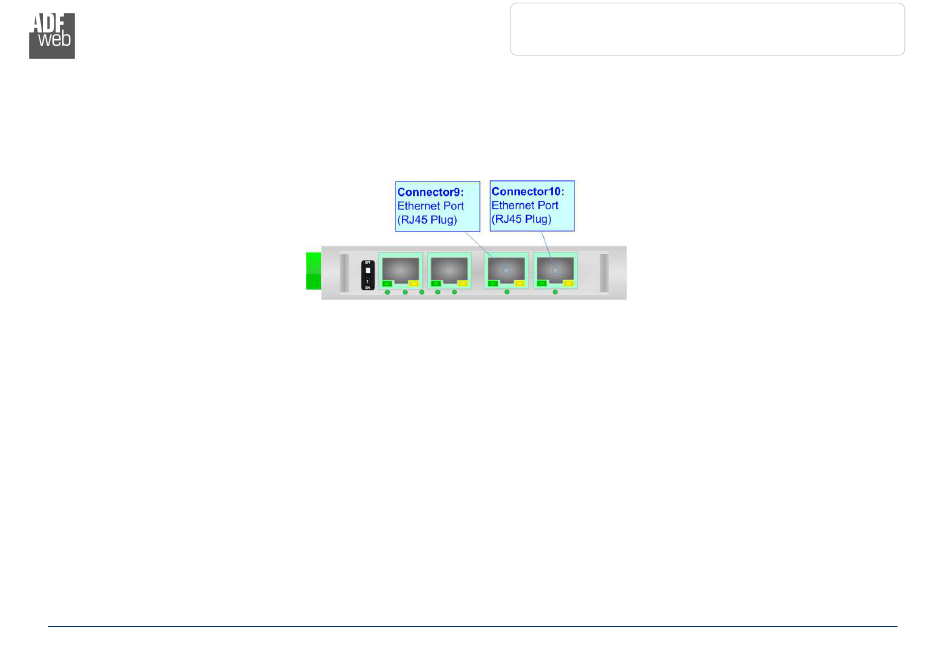

Ethernet connection and the updating of the converter must be made using Connector9 and/or Connector10 of the HD67E20-A1 with at least
a Category 5E cable. The maximum length of the cable should not exceed 100m. The cable has to conform to the T568 norms relative to
connections in cat.5 up to 100 Mbps. To connect the device to an Hub/Switch is recommended the use of a straight cable, to connect the
device to a PC/PLC/other is recommended the use of a cross cable.
ADFweb.com S.r.l.
User Manual EtherCAT Slave / OPC UA Client
Document code: MN67E20_ENG
Revision 1.000
Page 11 of 30
