SET COMMUNICATION:

This section define the fundamental communication parameters of two buses, EtherCAT and OPC
UA.
By Pressing the "Set Communication" button from the main window for SW67E20 (Fig. 2) the
window "Set Communication" appears (Fig. 3).
The means of the fields for "EtherCAT Slave" are:
In the field "Revision Number" the revision number of the converter is defined;
In the field "Slave Name" the name of the converter is defined;
In the field "Node Address" the ID of the converter is defined.
The means of the fields for "OPC UA Client" are:
In the field "IP Address" the IP address of the converter is defined;
In the field "Subnet Mask" the SubNet Mask of the converter is defined;
In the field "GATEWAY" the default gateway of the net is defined. This feature can be
enabled or disabled pressing the Check Box field. This feature is used for going out of the
net;
In the field "DNS" the DNS address is defined. This field is required if the server address
is define by URL and not IP Address.
The means of the fields for "NTP" are:
In the field "Server URL" the URL or the IP Address of the NTP Server is defined;
In the field "Poll Time
defined.
ADFweb.com S.r.l.
(seconds)" the polling time for the time synchronization is
User Manual EtherCAT Slave / OPC UA Client
Document code: MN67E20_ENG Revision 1.000

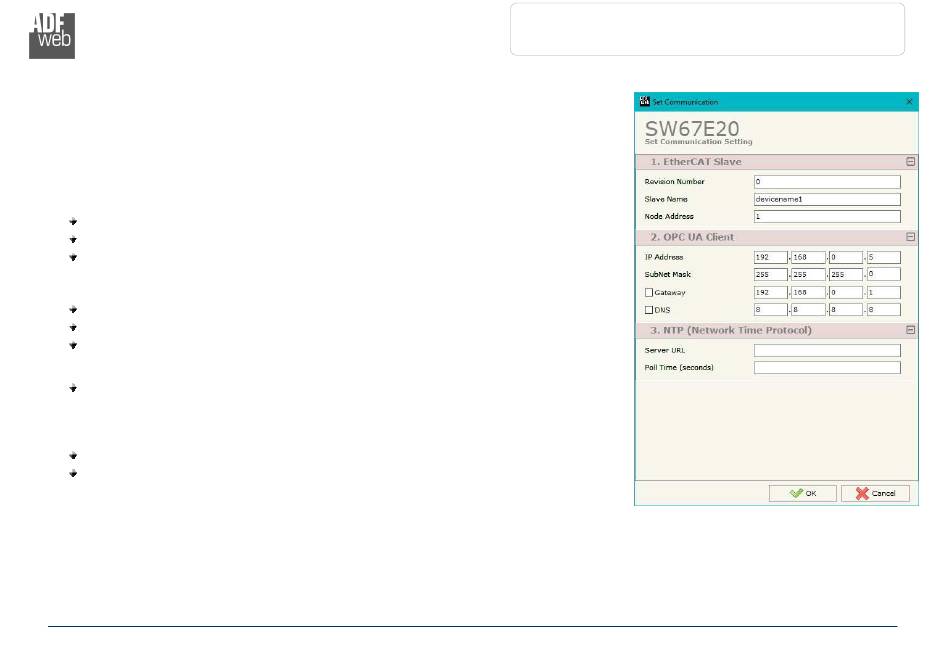

Figure 3: "Set Communication setting" window
