ADJUSTMENT SLIDE RULE

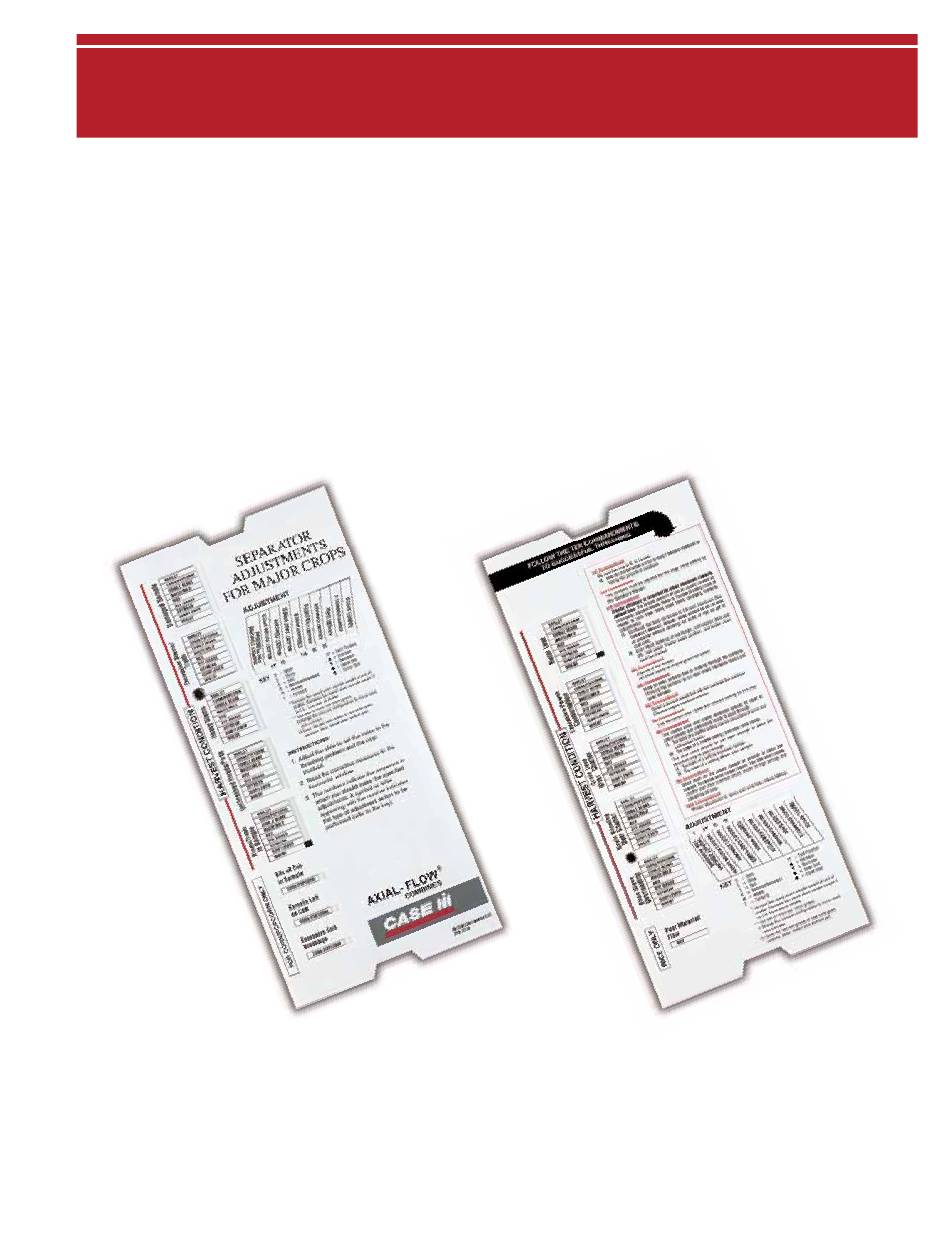

Combine Separator Adjustment Slide Rule
How the Slide Rule works:
Identify the symptom you have, line up the slide rule with the symptom, and read the suggested adjustments in order of
priority.
Why:
To achieve maximum productivity from your Case IH combine.
When:
The slide rule is a useful tool to make initial machine settings, and in-field adjustments to set the combine for maximum
productivity.
Slide rules cover most common crops, and fit easily in the buddy seat compartment to be readily available when needed. It is easy
to read, easy to follow, and gives step-by-step instruction to improve combine performance.
PM-12749
PM-12749
Front
Back
39
