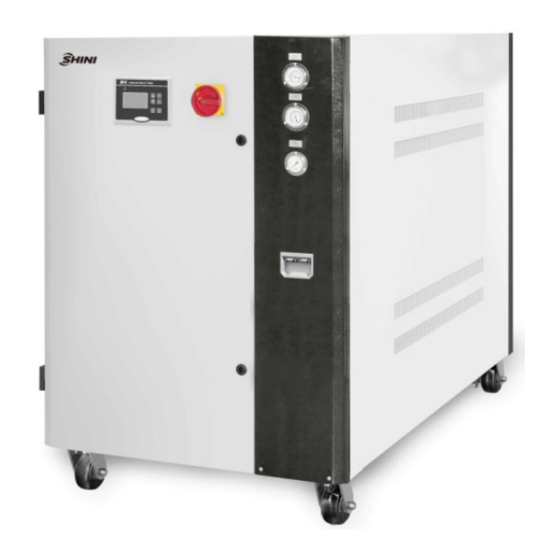

Shini SIC-W Series Manual

Water-cooled water chillers
Hide thumbs Also See for SIC-W Series:
Table of Contents

Advertisement

Quick Links

SIC-W
Water-cooled Water Chillers
Date: Mar., 2022
Version: Ver.D (English)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SIC-W Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Shini SIC-W Series

Summary of Contents for Shini SIC-W Series

  • Page 1 SIC-W Water-cooled Water Chillers Date: Mar., 2022 Version: Ver.D (English)

  • Page 3: Table Of Contents

    Contents 1. General Description ..................6 1.1 Coding Principle ..................7 1.2 Features ....................7 1.3 Technical Specifications ................. 9 1.3.1 External Dimensions ..............9 1.3.1 Specification List................. 11 1.4 Safety Regulations ................13 1.4.1 Security Labels ................13 1.5 Exemption Clause ................. 14 2.
  • Page 4 4. Application and Operation ................26 4.1 Panel Diagram ..................26 4.2 Common Screens ................. 26 4.3 Quick Operation ..................27 4.4 Startup ....................28 4.5 Shutdown ....................28 4.6 User Menu .................... 29 4.6.1 Parameter Operation ..............29 4.6.2 User Setting ................29 4.6.3 Machine Set ................
  • Page 5 Table 1-4：Specifications List (2) ..............12 Table 6-1：SIC-W Series Filling Quantity ............38 Picture Index Picture 1-1: Outline Dimensional Drawing ............9 Picture 2-1：Working Principle Diagram ............15 Picture 2-2：Compressor .................. 17 Picture 2-3：Condenser ..................17 Picture 2-4：Drying Filter .................. 18 Picture 2-5：Thermal Expansion Valve .............

  • Page 6: General Description

    Please read through this operation manual before using and installation to avoid damage of the machine and personal injuries. SIC-W series water-cooled chiller adopts single-stage vapour compressed circuit, with compressor overload protection, pump overload protection, phase reverse alarm, anti-freezing protection, high & low pressure protector, which features stable performance and long service life.

  • Page 7: Coding Principle

    1.1 Coding Principle 1.2 Features Standard configuration  Cooling range 7~35℃  Stainless steel insulated water tank and evaporator  Anti-freezing protector  Adopt R22 refrigerant, and cooling effect  The refrigeration system adopts high and lower pressure controller for protection ...
  • Page 8 Chapter 6, which contains service instructions intended for service engineers. Other chapters contain instructions for the daily operator. Any modifications of the machine must be approved by SHINI in order to avoid personal injury and damage to machine. We shall not be liable for any damage caused by unauthorized change of the machine.

  • Page 9: Technical Specifications

    1.3 Technical Specifications 1.3.1 External Dimensions Picture 1-1: Outline Dimensional Drawing Table 1-1: Specifications List (1) Model SIC-3W SIC-5W SIC-8W SIC-10W SIC-12.5W SIC-15W H(mm) 1050 1050 1200 1200 H1(mm) 1078 1078 H2(mm) H3(mm) W(mm) W1(mm) W2(mm) W3(mm) D(mm) 1080 1080 1200 1200 1470...
  • Page 10 Table 1-2: Specifications List (2) Model SIC-20W SIC-25W SIC-30W SIC-40W SIC-45W SIC-50W H(mm) 1450 1450 1450 1760 1760 1760 H1(mm) 1078 H2(mm) H3(mm) W(mm) 1055 1055 1055 1100 1100 1100 W1(mm) W2(mm) W3(mm) D(mm) 2235 2235 2235 2870 2870 3285 P1 cooling water inlet 21/2 21/221/2...

  • Page 11: Specification List

    1.3.1 Specification List Table 1-3：Specification List (1) Model Item/ SIC-3W SIC-5W SIC-8W SIC-10W SIC-12.5W SIC-15W Parameters Refrigerant 8.25 13.8 21.8 29.1 Capacity Kcal/hr 7,095 11,868 18,748 25,026 28,380 36,980 2.04 3.32 4.91 6.46 7.33 Power Compressor (50Hz/60Hz) 12.5 Weight (kg) Refrigerant Control Mode Thermostatic expansion valve...
  • Page 12 Table 1-4：Specifications List (2) Model Item/ SIC-20W SIC-25W SIC-30W SIC-40W SIC-45W SIC-50W Parameters Refrigerant 58.2 115.1 Capacity Kcal/hr 50,052 56,760 73,960 98,986 110,940 113,520 12.92 14.66 25.46 28.5 29.32 output Compressor power Weight (kg) Refrigerant Control Mode Thermostatic expansion valve Type Evaporator Type...

  • Page 13: Safety Regulations

    1.4 Safety Regulations Operation should be carried out according to the safety regulations this manual to avoid damage of the machine and personal injuries. Abide by the following regulations during operation. 1.4.1 Security Labels Attention! Installation of the device is allowed only to the professional electrician. Before maintaining and repairing the device, be sure to turn off the main switch and control switch.

  • Page 14: Exemption Clause

    Shini (including employees and agents). Shini is exempted from liability for any costs, fees, claims and losses caused by reasons below: 1. Any careless or man-made installations, operation and maintenances upon machines without referring to the Manual prior to machine using.

  • Page 15: Structural Features And Working Principle

    2. Structural Features and Working Principle 2.1 Main Functions SIC-W air-cooled water chillers include consists of four main components, which are compressor, condenser, thermostatic expansion valve, and evaporator. The system adopts single-stage vapour compressed refrigeration system, which uses refrigerant gas-liquid conversion to absorb and release heat, thus achieving the cooling effect.
  • Page 16 refrigerant from the condenser through the drying filter 4 that flows to the liquid pipe solenoid valve 5 and refrigerant indicator 6 after drying and impurity filtering, and finally reaches the expansion valve 7. In the F-G process, the temperature of high pressure liquid refrigerant decreases after thermal expansion valve throttling and depressurizing.

  • Page 17: Main Components And Functions

    2.2 Main Components and Functions 2.2.1 Compressor 1) It compresses and conveys the refrigerant vapor that results in low and middle of the evaporator, and middle and high pressure of the refrigerantor, which is the core part of whole system. 2) Our company produces scroll and piston compressors.

  • Page 18: Thermal Expansion Valve

    2) The filter size is usually selected according to the refrigerant pipe diameter. 3) It is mounted in front of the thermal expansion valve to protect the valve’s tightness Picture 2-4：Drying Filter 2.2.4 Thermal Expansion Valve 1) The thermostatic expansion valve can throttle and depressurize the refrigerant and regulate the refrigerant flow into the evaporator.

  • Page 19: High And Low Pressure Controller

    Picture 2-6：Evaporator 2.2.6 High and Low Pressure Controller 1) The high and low pressure controller is used to control the working pressure at the compressor air inlet and outlet. 2) The high-pressure controller is set to 25bar, and the low-pressure controller is set to 2bar.

  • Page 20: Hot-Gas Bypass Valve

    Picture 2-9：Liquid Pipe Solenoid Valve Cut off the refrigerant supply circuit immediately after shutdown to prevent the evaporator from freezing. 2.3.3 Hot-gas Bypass Valve Picture 2-10：Hot-gas By-pass Valve It is used for bypass refrigerant gas at low temperature to avoid compressor frequent start-up for accurate temperature control.
  • Page 21 Picture 2-12：Liquid Level Indicator With the liquid level indicator, it can check whether the water level in the tank is in normal range. 21(42)

  • Page 22: Main Electrical Components

    2.4 Main Electrical Components 2.4.1 Thermal Overload Relay When delivers the machine, the thermal relay is set to the manual reset mode. So when the system indicates motor overload fault, please troubleshoot first. Then, it must open the door of the control box, and press the reset button of the thermal relay (If it can't be pressed, please wait about 1 min.

  • Page 23: Installation And Debugging

    3. Installation and Debugging Attention！ Please read through this chapter carefully before installation, and install according to the following order! 3.1 Installation Notices 1) Make sure that the voltage and frequency corresponds with the requirements on manufacturer's name plate. 2) Connection cable and ground wire must abide by local rules and regulations.
  • Page 24 11) When the water source quality is poor, and the embient environment of the cooling tower is harsh, the cooling water and chilled water loop must be equipped with the filters and cleaned regularly. 12) The circulating circuit of chilled water shall be covered with insulation layer to avoid the loss of cooling capacity and pipeline dripping.

  • Page 25: Installation Diagram

    10. Cooling water circulation Picture 3-1：Machine Installation Location 3.3 Power Connection The SIC-W series must be connected with the power of 3Φ 400V 50Hz and earth wire. Attention! Before power connection, please make sure that the main power switch is...

  • Page 26: Application And Operation

    Application and Operation 4.1 Panel Diagram 4.2 Common Screens Commonly used screens include the main screen and the alarm screen. screens include the main screen and the alarm screen. 1. Main Screen The system will enter the main screen after countdown, which displays as The system will enter the main screen after countdown, which displays as follows: 2.

  • Page 27: Quick Operation

    4.3 Quick Operation 1. Changing and Setting Temperature If the user parameter [Lock Temp.] is set to "No", the setting temperature can be modified directly in the main screen, with operation details as follows: Note: the setting temperature can also be modified in the user parameters. 2.

  • Page 28: Startup

    The compressor can't be started frequently because of its characteristics (Frequent start will shorten its service life.). If emergency shut-down happens, the compressor will run again 3 minutes later. Startup 1) Open the main power switch. 2) Set the temperature of chilling water (if the temp. has already been set, omit this step).

  • Page 29: User Menu

    4.6 User Menu Press the button on the main screen to enter the User Menu, which includes five items as the table below: Menu Item Funtion Remark User Setting To set the user parameters To display the current operating Unit Status status of the unit Allowing the query of the last 10 Fault Record...

  • Page 30: Machine Set

    4.6.3 Machine Set The machine set includes six items as the table below: Item Function Remark Language To set the display language. Chinese and English Backlight Time Setting range：0~255min 0: backlight is not turned off. Compr Use To query the cumulative operation time of Time the compressor To set baud rate, parity bit, stop bit and...

  • Page 31: Trouble-Shooting

    Trouble-shooting Table 5-1: Single Compressor Fault Test Conditions Troubleshooting Solution Compressor Test when the compressor pressure High button has pressed If the [LP Check Delay] is 0, test Stop compressor only when the compressor button Check if the input is consistent with Compressor pressure without affect other has pressed;If the...
  • Page 32 Table 5-2: Double Compressor Fault Test Conditions Troubleshooting Solution Compressor 1 Test when the compressor pressure high button has pressed If the [LP Check Delay] is 0, test Stop compressor 1 when the compressor button has Compressor 1 only without affect Check if the input is consistent pressed;If the pressure low...
  • Page 33 Table 5-3: Triple,Quadruple Compressor Fault Test Conditions Troubleshooting Solution Compressor 1 Test when the compressor button has pressure high pressed If the [LP Check Delay] is 0, test when the Stop compressor 1 only without Compressor 1 compressor button has pressed;If the Check if the input is consistent affect other equipments to pressure low...
  • Page 34 Fault Test Conditions Troubleshooting Solution Blower 1 fault Check if the blower 1 fault input (Only applicable Compressor 1 runs the test input is consistent with the switch for air-cooled setting. series) Blower 2 fault Check if the blower 2 fault input (Only applicable Compressor 2 runs the test input is consistent with the switch...

  • Page 35: Repair And Maintenance

    6. Repair and Maintenance 35(42)
  • Page 36 36(42)
  • Page 37 Attention! All repair work should be done by qualified personnel only to avoid damage to the machine or personnel injury. In order to operate the machine rightly and safely, please caution the matter follows: 1) Don’t turn off the main power switch to stop the machine, except emergency situation.

  • Page 38: Filling The Refrigerant

    13~15bar; and the display pressure of the low-pressure gauge is about: 3～5bar(Note: the ambient temperature is 30 ℃, and the cooling water temperature is about 20 ℃). Picture 6-2：Fill in the Refrigerant (2) Table 6-1：SIC-W Series Filling Quantity Model Refrigerant (kg) Model...

  • Page 39: Components Maintenance

    SIC-10W SIC-40W SIC-12.5W SIC-45W SIC-15W SIC-50W Attention! Don’t replace with other refrigerant without permission. Don’t replace the components of the refrigerating system unauthorized. The medium used is water. If you need to use other media, please consult the manufacturer in advance. 6.2 Components Maintenance 6.2.1 Condenser The SIC-W-R2 series of water chiller adopts tube-in-shell condenser, which will...

  • Page 40: Evaporator

    6.2.2 Evaporator The SIC-W series of water chiller adopts tube-in-shell evaporator, and its inner side of the heat emission pipe will pile up a great deal of water scaleafter long time use, which will influence the heat emission effect, so it is necessary to clean the evaporator at fixed periods in order to keep its working performance.

  • Page 41: Maintenance Schedule

    6.3 Maintenance Schedule 6.3.1 About the Machine Model Production date Ф Voltage Frequency Total power 6.3.2 Check after Installation Check the pipes are all correctly connected. Check if there are leakages in the piping system. Check if there are breaks in welding joint. Electrical Installation Voltage: Fuse specification: 1 Phase...

  • Page 42: Trimonthly Checking

    Check the refrigerant circulation pipe. Check whether there are bubbles in liquid indicator. Check whether there is abnormal sound in pump. Check whether there is scale formation in tank. 6.3.6 Trimonthly Checking Check whether condenser is under blockage. 6.3.7 Half-yearly Checking Check whether the circulation pipe has leakage.
