Shini SIC-W Manual

Water-cooled water chillers
Hide thumbs
Table of Contents

Advertisement

Quick Links

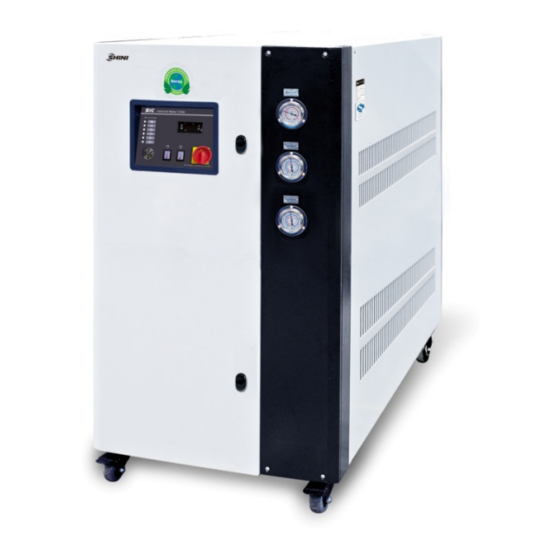

SIC-W
Water-cooled Water Chillers
Date: May, 2021
Version: Ver.C (English)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SIC-W and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Shini SIC-W

Summary of Contents for Shini SIC-W

  • Page 1 SIC-W Water-cooled Water Chillers Date: May, 2021 Version: Ver.C (English)

  • Page 3: Table Of Contents

    Contents 1. General Description ..................6 1.1 Coding Principle ..................7 1.2 Features ....................7 1.3 Technical Specifications ................. 9 1.3.1 External Dimensions ..............9 1.3.1 Specification List................. 11 1.4 Safety Regulations ................13 1.4.1 Security Labels ................13 1.5 Exemption Clause ................. 14 2.
  • Page 4 4. Application and Operation ................27 4.1 Panel Description .................. 27 4.2 Machine Startup ..................29 4.3 Machine Shutdown ................30 4.4 Temperature Controller 1(Used for 3HP~15HP) ........31 4.4.1 Temperature setting method ............31 4.4.2 Parameter Value Setting ............32 4.4.3 Parameter setting method ............
  • Page 5 Table 1-2: Specifications List (2) ............... 10 Table 1-3：Specification List (1) ............... 11 Table 1-4：Specifications List (2) ..............12 Table 4-1：Panel Description ................27 Table 6-1：SIC-W Series Filling Quantity ............41 Picture Index Picture 1-1: Outline Dimensional Drawing ............9 Picture 2-1：Working Principle Diagram ............15 Picture 2-2：Compressor ..................

  • Page 6: General Description

    Please read through this operation manual before using and installation to avoid damage of the machine and personal injuries. SIC-W series water-cooled chiller adopts single-stage vapour compressed circuit, with compressor overload protection, pump overload protection, phase reverse alarm, anti-freezing protection, high & low pressure protector, which features stable performance and long service life.

  • Page 7: Coding Principle

    ±0.1℃.  All adopt branded compressors with low noise, high efficiency and long service life.  SIC-W adopts fin style condenser design without any need of cooling water for excellent heat transfer and rapid cooling. Accessory option  Medium and high pressure pumps are optional to meet different water pressure requirements.
  • Page 8 Chapter 6, which contains service instructions intended for service engineers. Other chapters contain instructions for the daily operator. Any modifications of the machine must be approved by SHINI in order to avoid personal injury and damage to machine. We shall not be liable for any damage caused by unauthorized change of the machine.

  • Page 9: Technical Specifications

    1.3 Technical Specifications 1.3.1 External Dimensions Picture 1-1: Outline Dimensional Drawing Table 1-1: Specifications List (1) Model SIC-3W SIC-5W SIC-8W SIC-10W SIC-12.5W SIC-15W H(mm) 1050 1050 1200 1200 H1(mm) 1078 1078 H2(mm) H3(mm) W(mm) W1(mm) W2(mm) W3(mm) D(mm) 1080 1080 1200 1200 1470...
  • Page 10 Table 1-2: Specifications List (2) Model SIC-20W SIC-25W SIC-30W SIC-40W SIC-45W SIC-50W H(mm) 1450 1450 1450 1760 1760 1760 H1(mm) 1078 H2(mm) H3(mm) W(mm) 1055 1055 1055 1100 1100 1100 W1(mm) W2(mm) W3(mm) D(mm) 2235 2235 2235 2870 2870 3285 P1 cooling water inlet 21/2 21/221/2...

  • Page 11: Specification List

    1.3.1 Specification List Table 1-3：Specification List (1) Model Item/ SIC-3W SIC-5W SIC-8W SIC-10W SIC-12.5W SIC-15W Parameters Refrigerant 8.25 13.8 21.8 29.1 Capacity Kcal/hr 7,095 11,868 18,748 25,026 28,380 36,980 2.04 3.32 4.91 6.46 7.33 Power Compressor (50Hz/60Hz) 12.5 Weight (kg) Refrigerant Control Mode Thermostatic expansion valve...
  • Page 12 Table 1-4：Specifications List (2) Model Item/ SIC-20W SIC-25W SIC-30W SIC-40W SIC-45W SIC-50W Parameters Refrigerant 58.2 115.1 Capacity Kcal/hr 50,052 56,760 73,960 98,986 110,940 113,520 12.92 14.66 25.46 28.5 29.32 output Compressor power Weight (kg) Refrigerant Control Mode Thermostatic expansion valve Type Evaporator Type...

  • Page 13: Safety Regulations

    1.4 Safety Regulations Operation should be carried out according to the safety regulations this manual to avoid damage of the machine and personal injuries. Abide by the following regulations during operation. 1.4.1 Security Labels Attention! Installation of the device is allowed only to the professional electrician. Before maintaining and repairing the device, be sure to turn off the main switch and control switch.

  • Page 14: Exemption Clause

    Shini (including employees and agents). Shini is exempted from liability for any costs, fees, claims and losses caused by reasons below: 1. Any careless or man-made installations, operation and maintenances upon machines without referring to the Manual prior to machine using.

  • Page 15: Structural Features And Working Principle

    2. Structural Features and Working Principle 2.1 Main Functions SIC-W air-cooled water chillers include consists of four main components, which are compressor, condenser, thermostatic expansion valve, and evaporator. The system adopts single-stage vapour compressed refrigeration system, which uses refrigerant gas-liquid conversion to absorb and release heat, thus achieving the cooling effect.
  • Page 16 refrigerant from the condenser through the drying filter 4 that flows to the liquid pipe solenoid valve 5 and refrigerant indicator 6 after drying and impurity filtering, and finally reaches the expansion valve 7. In the F-G process, the temperature of high pressure liquid refrigerant decreases after thermal expansion valve throttling and depressurizing.

  • Page 17: Main Components And Functions

    2.2 Main Components and Functions 2.2.1 Compressor 1) It compresses and conveys the refrigerant vapor that results in low and middle of the evaporator, and middle and high pressure of the refrigerantor, which is the core part of whole system. 2) Our company produces scroll and piston compressors.

  • Page 18: Thermal Expansion Valve

    2) The filter size is usually selected according to the refrigerant pipe diameter. 3) It is mounted in front of the thermal expansion valve to protect the valve’s tightness Picture 2-4：Drying Filter 2.2.4 Thermal Expansion Valve 1) The thermostatic expansion valve can throttle and depressurize the refrigerant and regulate the refrigerant flow into the evaporator.

  • Page 19: High And Low Pressure Controller

    Picture 2-6：Evaporator 2.2.6 High and Low Pressure Controller 1) The high and low pressure controller is used to control the working pressure at the compressor air inlet and outlet. 2) The high-pressure controller is set to 25bar, and the low-pressure controller is set to 2bar.

  • Page 20: Hot-Gas Bypass Valve

    Picture 2-9：Liquid Pipe Solenoid Valve Cut off the refrigerant supply circuit immediately after shutdown to prevent the evaporator from freezing. 2.2.9 Hot-gas Bypass Valve Picture 2-10：Hot-gas By-pass Valve It is used for bypass refrigerant gas at low temperature to avoid compressor frequent start-up for accurate temperature control.
  • Page 21 Picture 2-12：Liquid Level Indicator With the liquid level indicator, it can check whether the water level in the tank is in normal range. 21(45)

  • Page 22: Main Electrical Components

    2.3 Main Electrical Components 2.3.1 Thermal Overload Relay When delivers the machine, the thermal relay is set to the manual reset mode. So when the system indicates motor overload fault, please troubleshoot first. Then, it must open the door of the control box, and press the reset button of the thermal relay (If it can't be pressed, please wait about 1 min.

  • Page 23: Installation And Debugging

    3. Installation and Debugging Attention！ Please read through this chapter carefully before installation, and install according to the following order! 3.1 Installation Notices 1) Make sure that the voltage and frequency corresponds with the requirements on manufacturer's name plate. 2) Connection cable and ground wire must abide by local rules and regulations.
  • Page 24 11) When the water source quality is poor, and the embient environment of the cooling tower is harsh, the cooling water and chilled water loop must be equipped with the filters and cleaned regularly. 12) The circulating circuit of chilled water shall be covered with insulation layer to avoid the loss of cooling capacity and pipeline dripping.

  • Page 25: Installation Diagram

    3.2 Installation Diagram Parts Name： 1. Water chiller 6. Drain port 11. Mould Cooling 2. Chilled water outlet 7. Cooling water tower 12. Cooling hopper 3. Chilled water inlet 8. Cooling water pump 13. Oil cooling 4. Cooling water outlet 9.

  • Page 26: Power Connection

    3.3 Power Connection The SIC-W series must be connected with the power of 3Φ 400V 50Hz and earth wire. Attention! Before power connection, please make sure that the main power switch is turned off! 26(45)

  • Page 27: Application And Operation

    4. Application and Operation 4.1 Panel Description Picture 4-1：Panel Description Table 4-1：Panel Description Name Functions Remarks Note: Don’t try to remove any Connect through power supply and turn unit or touch any terminal after Power indicator on the main switch, the indicator will the power is turned on.
  • Page 28 Check whether the motor is stuck or the bearing is damaged. If the motor is OK, check whether the setting current of the thermal overload relay in the electric control box is too small. After the above faults are eliminated, wait When the pump current is too high, the for about 1 minute and reset the light will be on, and the buzzer will give...

  • Page 29: Machine Startup

    4.2 Machine Startup 1) Turn “on” the main switch. Picture 4-2：Stepup Step 1 2) Turn on the switch to start up the pump When the machine pump is middle or high pressure, in order to prevent excessive flow resulting in large pump flow, the pressure at the water pump outlet shall not exceed the pressure range in the following Table.

  • Page 30: Machine Shutdown

    Attention! Pump rotating direction must be correct. Attention! Before startup, make sure to turn on the cooling water pump. Check the water tank of the water chiller, and don’t start the machine when there’s no water left in the water tank. Otherwise, the company will not be responsible for the machine damage.

  • Page 31: Temperature Controller 1(Used For 3Hp~15Hp)

    Temperature Controller 1(Used for Used for 3HP~15HP) 4.4.1 Temperature setting method Picture 4-1：Temperature Controller 1 Temperature Controller 1 Table 4-1：The Instruction of Temperature Controller 1 The Instruction of Temperature Controller 1 Normal Operation Button Startup Code Press this button alone Press it with other buttons Press it with other buttons Press and hold it with the...

  • Page 32: Parameter Value Setting

    4.4.2 Parameter Value Setting Table 4-2：Parameter Value Setting Parameter Default Value Parameter Significance Remark Code Setting The min. set value that the user can Unit: ℃ be used The max. set value that the user can Unit:℃ be used Control difference (lag) Unit:℃...

  • Page 33: Code Meanings

    If the keyboard doesn’t work for 30S, it will automatically exit the parameter setting system. 4.4.4 Code Meanings Table 4-3：Code Meanings Code Meanings Code Meanings Powered on self-test status (3S) High temp. alarm Actual temp. display Machine parameter fault Sensor breaks Running parameter fault Low temp.

  • Page 34: Temperature Controller 2(Used For 20Hp-50Hp)

    Temperature Controller 2(Used for Used for 20HP-50HP) 4.5.1 Temperature setting method Picture 4-2：Temperature Controller 2 Temperature Controller 2 Table 4-4：The Instruction of Temperature Controller 2 The Instruction of Temperature Controller 2 Normal Operation Button Press it with other Press it with other Startup Code Press this button alone...

  • Page 35: Default Parameter Setting

    4.5.1 Default parameter setting Table 4-5：Default Parameter Setting Code Meaning of parameter Default value Remark Unit: ℃ Set point of out 1 Temp. difference relative to out 1 Unit:℃ Minimum value of st Unit:℃ Maximum value of st Unit:℃ Set point of out 2 Unit:℃...

  • Page 36: Troubleshooting

    Troubleshooting The Action of Faults the Protection The Possible Fault Analysis Solutions Units A. Power is not on. A. Check before power is on B. The control circuit fused 1. No power B. Check the protection loop. The protective C. The phase sequence of display or C.
  • Page 37 A. The heat of the return pipe’s A. Adjust the opening of the refrigerant is too high. expansion valve properly. 8.Compressor Protective device B. The high-pressure is too B. Repair and improve overload no action high. C. Repair and improve C.

  • Page 38: Repair And Maintenance

    6. Repair and Maintenance 38(45)
  • Page 39 39(45)
  • Page 40 Attention! All repair work should be done by qualified personnel only to avoid damage to the machine or personnel injury. In order to operate the machine rightly and safely, please caution the matter follows: 1) Don’t turn off the main power switch to stop the machine, except emergency situation.

  • Page 41: Filling The Refrigerant

    13~15bar; and the display pressure of the low-pressure gauge is about: 3～5bar(Note: the ambient temperature is 30 ℃, and the cooling water temperature is about 20 ℃). Picture 6-2：Fill in the Refrigerant (2) Table 6-1：SIC-W Series Filling Quantity Model Refrigerant (kg) Model...

  • Page 42: Components Maintenance

    6.2 Components Maintenance 6.2.1 Condenser The SIC-W-R2 series of water chiller adopts tube-in-shell condenser, which will have water scaleon the heat transfer tubes after long-term use or there will be sundries blocked due to poor water treatment. The condenser must be cleaned regularly, so that the machine can maintain its good working performance.

  • Page 43: Evaporator

    6.2.2 Evaporator The SIC-W series of water chiller adopts tube-in-shell evaporator, and its inner side of the heat emission pipe will pile up a great deal of water scaleafter long time use, which will influence the heat emission effect, so it is necessary to clean the evaporator at fixed periods in order to keep its working performance.

  • Page 44: Maintenance Schedule

    6.3 Maintenance Schedule 6.3.1 About the Machine Model Production date Ф Voltage Frequency Total power 6.3.2 Check after Installation Check the pipes are all correctly connected. Check if there are leakages in the piping system. Check if there are breaks in welding joint. Electrical Installation Voltage: Fuse specification: 1 Phase...

  • Page 45: Trimonthly Checking

    Check the refrigerant circulation pipe. Check whether there are bubbles in liquid indicator. Check whether there is abnormal sound in pump. Check whether there is scale formation in tank. 6.3.6 Trimonthly Checking Check whether condenser is under blockage. 6.3.7 Half-yearly Checking Check whether the circulation pipe has leakage.
