Step 4: Plan your installation
Estimated time for this step: 3 – 10 minutes
Now it's time to decide where you'll place the Smart Receiver. If it is part of an ezRoom configuration:
* Be sure to refer to the Installer Guides for the various ezRoom components for best results.
• Locate the Smart Receiver (and optional plenum enclosure) near a power supply and the classroom's network drop.
• Typical maximum cable lengths are 330' for CAT 5 network cable runs, 50' for RS232, and 50' for IR. Typical maximum
lengths for speaker cables are 50' though please refer to the applicable FrontRow product documentation for specific
requirements. For AV plates please refer to the specific AV plate documentation.
Windows

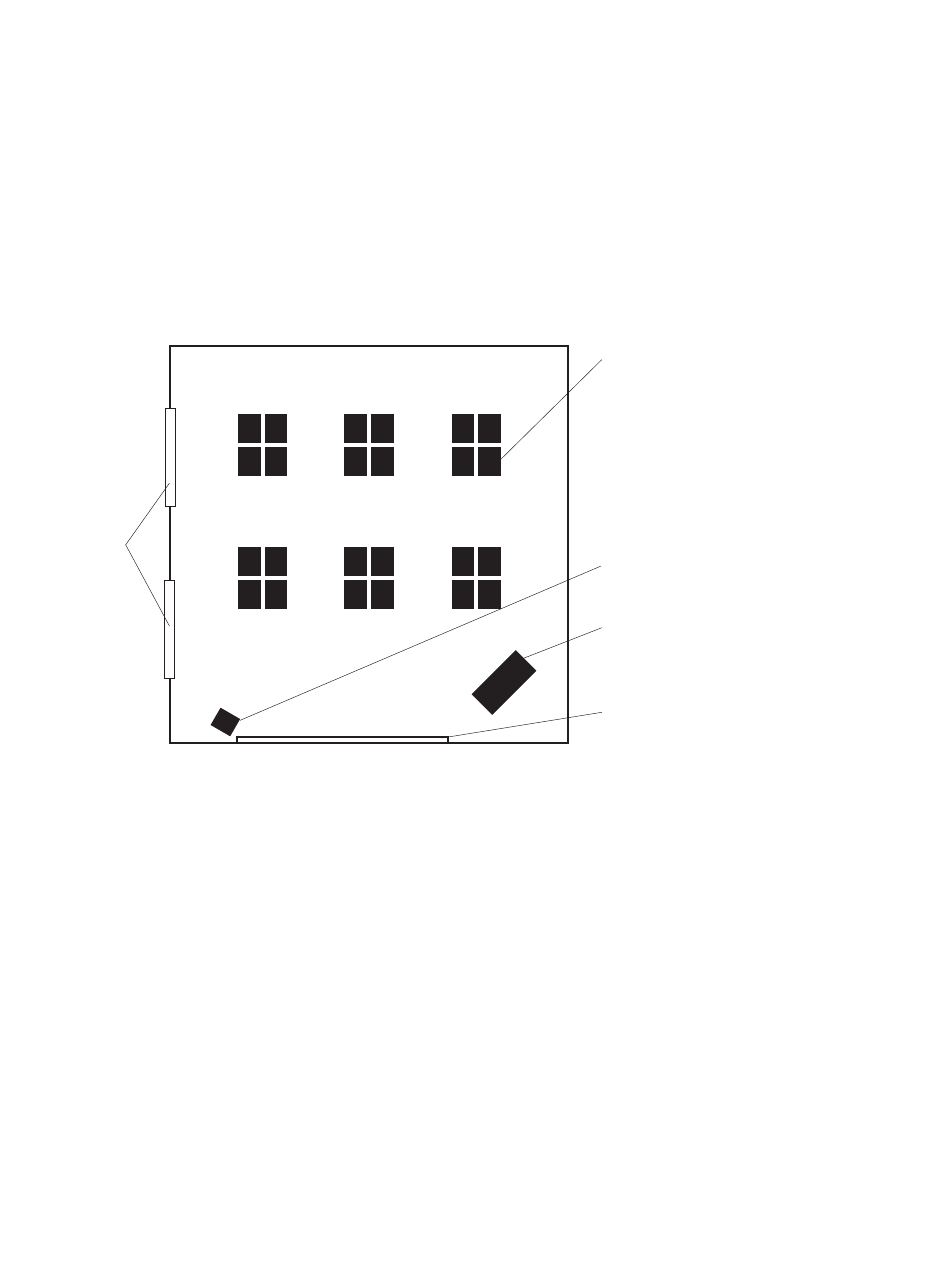

Top view of an example classroom
Student desks
Blu-ray Player
Teacher's desk,
computer and
document camera
White board/
projector screen
