FrontRow CMBT Bluetooth Installation Manual

CMBT Bluetooth
®
Installation Guide

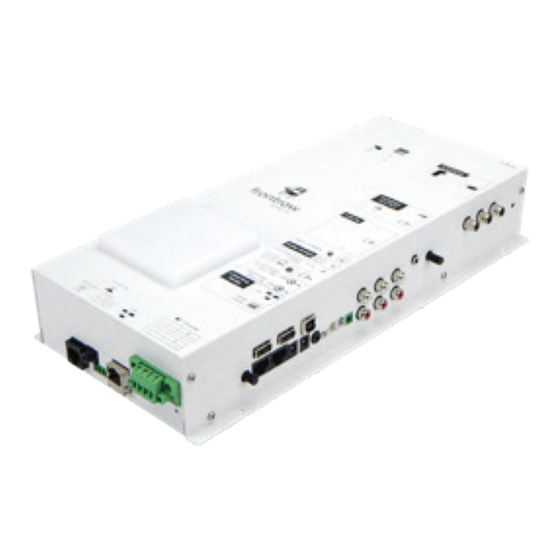

Installation with ezRoom ICR-01 Smart Receiver, CM3000 amplifier/controller,
or CM800Si amplifier
CMBT
(CB55G and CB55I also available)
1. Most ICR-01, CM3000, and CM800Si installations house the components in an
enclosure. The CMBT Bluetooth audio receiver works only in RF-friendly enclosures
like the CMPL2 with plastic lid. Ensure that your enclosure meets this requirement
before proceeding.
2. You can secure the CMBT receiver either to the metal enclosure mounting plate using
the supplied mounting screws, or to the plastic lid using PT screws only (3.5 x 10mm /
#6 x 3/8in). If mounting to the lid, ensure that CMBT receiver is installed in an area that will

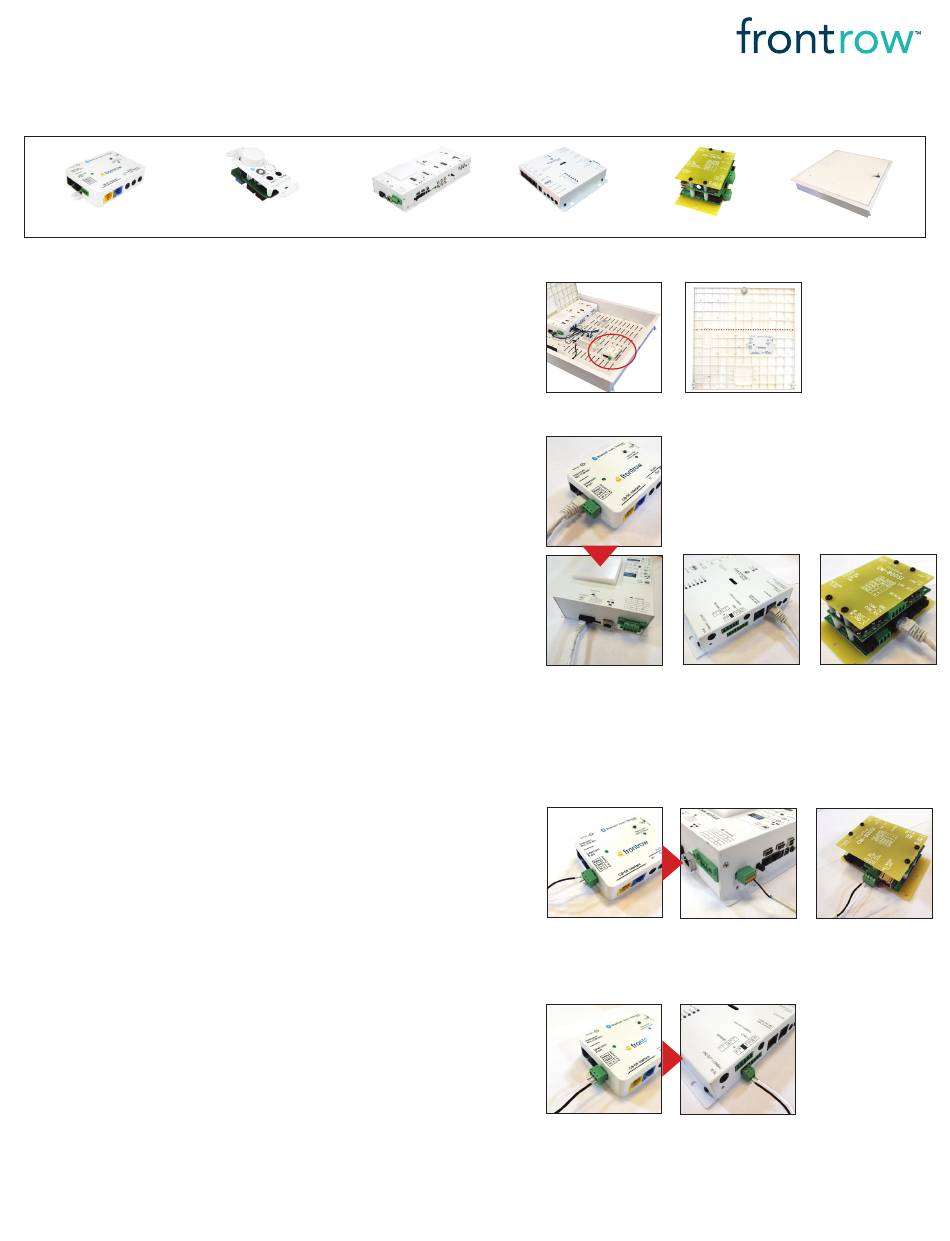

not interfere with other components when the lid is closed. (Image 1)
3. Plug the supplied UTP cable into the Intercom Port of the CMBT, and connect
the other end to the Intercom port of the ICR-01, CM3000, or CM800Si. (Image 2)
This will supply power to the CMBT.
NOTE: If a device is already connected to the Intercom port of the ICR-01, CM3000, or
CM800Si, proceed as follows:
a. If the device is a CB85 ceiling mic, unplug it from the amplifier and reconnect it to
the Intercom Mic (CB85) port on the CMBT.
b. If the device is a CB75 wall mic with volume control, you can either leave it connected
to the amplifier, and power the CMBT separately using a dedicated power supply or
using a 5V patch cord from the amplifier (ICR-01 only) unplug it and consider installing
a CB85 ceiling mic and CB55 volume/pairing control instead (see Step 4b below)
c. If the device is a CB50 volume control, unplug it and consider installing a CB55
volume/pairing control instead (see Step 4b below)
4. Decide how you want to remotely initiate Bluetooth pairing:
a. If you are using a CB6000 touch control panel, we recommend initiating pairing
from the touch screen:
a.1. Program Bluetooth pairing buttons for your CB6000 touch controller following
the instructions in the CB6000 Installer Guide
a.2. If you are using the ICR-01 Smart Receiver or CM800Si amp:
a.ii. Locate the supplied relay cable and connect the white/neutral wire to the
GND connector on the Ext Control terminal of the CMBT and connect
the other end to the COM connector on one of the Relay terminals of
the ICR-01 or to the R1-COM terminal of the CM800Si. (Image 3)
a.ii. Connect the black/hot wire of the relay cable to the Relay connector
on the Ext Control terminal of the CMBT and connect the other end to
the NO connector on one of the Relay terminals of the ICR-01 or to the
R1-NO terminal of the CM800Si. (Image 3)
a.3. If you are using the CM3000 amp:
a.iii. Locate the supplied infrared interface cable and connect the white/neutral
wire to the GND connector on the Ext Control terminal of the CMBT
and connect the other end to the IR- connector on the IR terminal of the
CM3000. (Image 4)
a.iii. Connect the black/hot wire of the interface cable to the IR In connector
on the Ext Control terminal of the CMBT and connect the other end to
the IR+ connector on the IR terminal of the CM3000. (Image 4)
Installation instructions continued on back side...
© 2018 FrontRow Calypso LLC Phonic Ear, FrontRow, Calypso and the names of Phonic Ear, Calypso, and FrontRow products are trademarks or registered trademarks of
FrontRow Calypso LLC in the U.S. and other countries. Bluetooth is a registered trademark of Bluetooth SIG, Inc.
Audio Receiver
CB55A shown
ICR-01 CM3000
Image 1
Image 2
Image 3
Image 4
CM800Si
CMPL2
OR
OR
OR
OR
1530-00016/Rev A 0718
