1. Fasten spacers onto metal pems configuration (A), (B), or (C) of backplane depending on the access controller
(Fig. 5, pg. 5).
2. Position access controller module over corresponding spacers and fasten screws into spacers (Fig. 5a, pg. 5).
Note: Software House iSTAR Ultra ACM and iSTAR ACM SE/ACM PRO boards have one (1) USB port each.
Please orient boards in the appropriate position according to the Fig. 5 below.
3. Mount backplane to enclosure with hardware.
Access Controller Position Chart for the Following Models:
Software House Access Controller
iSTAR Ultra ACM
iSTAR ACM SE/ACM PRO
I8, R8 or I8-CSI Module

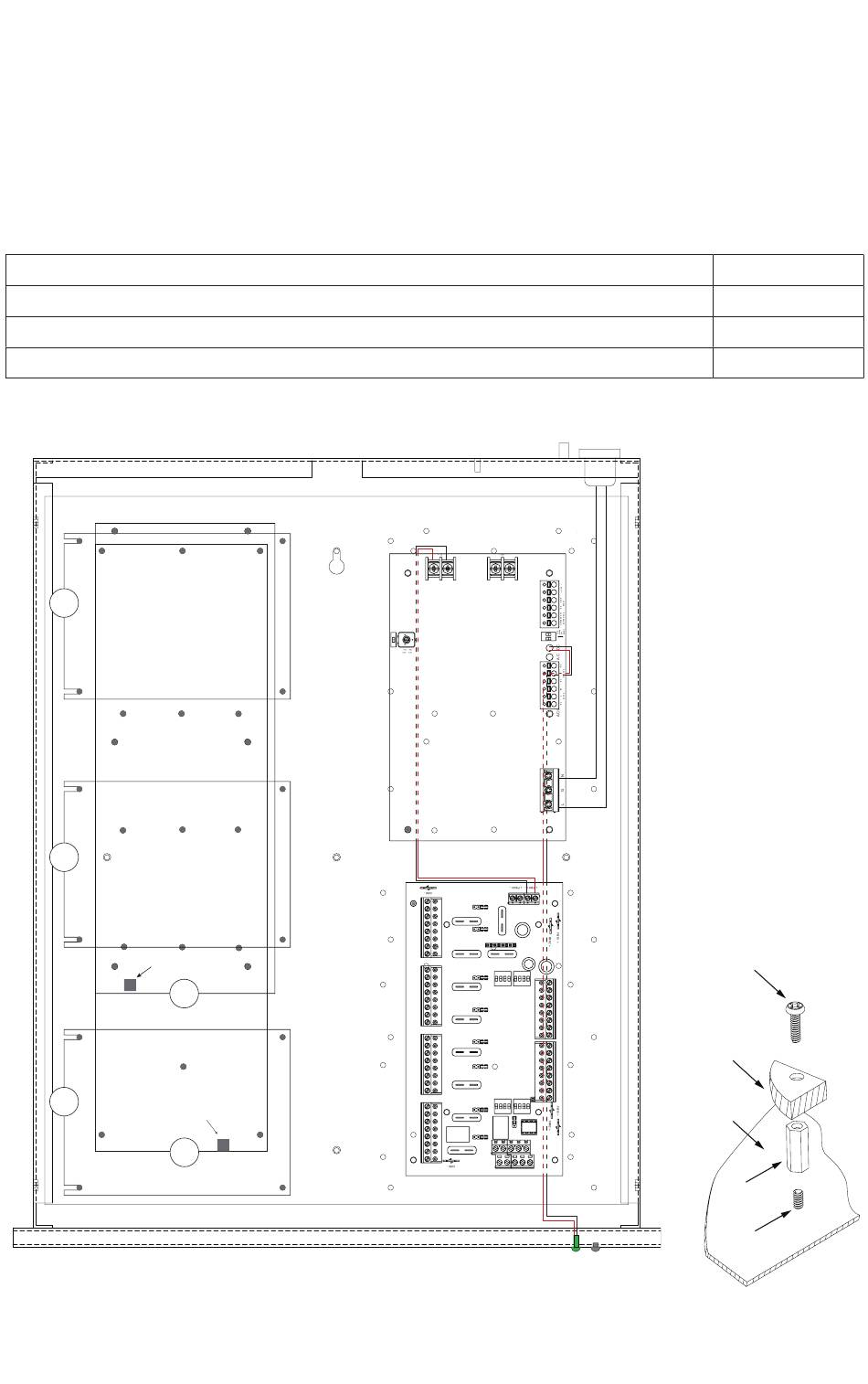

Fig. 5
C
C
USB PORT
C
USB PORT
T1RSH3F8 Installation Guide

Configuration of Software House Modules

B
A
T1RSH3F8:
To IEC connector
ON
Altronix
eFlow6NB
VR6 is
mounted
under
ACMS8
Altronix ACMS8
Pem Mounting
Pan Head Screw
Software House
Board
Backplane
To LED
Spacer
lense
Pem
A
B
C
Fig. 5a
