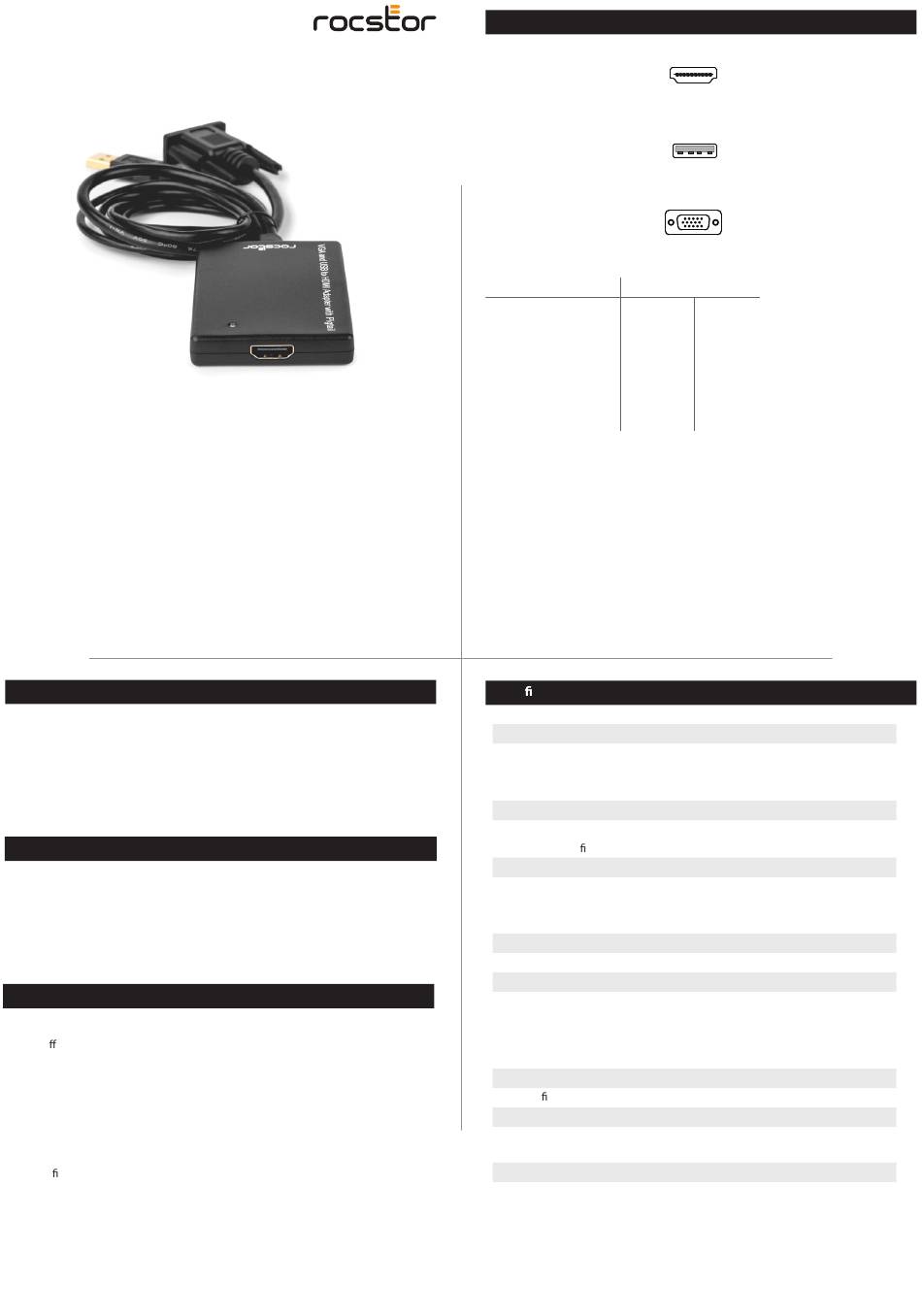

Rocstor Y10A218-B1 User Manual

User Manual
VGA to HDMI Video Adapter
with USB Audio & Power - Black
Congratulations
Thank you for purchasing this premium Rocstor product. For optimum performance and
safety, please read these instructions carefully before connecting, operating or using this
product. Please keep this manual for future reference.
Introduction
This is a premium Rocstor VGA video converter, It converts VGA signal into complete
HDMI and allows PC users to enjoy their larger image on the display. The Converter is
also along with USB audio that allows you to enjoy high quality sound on HDTV.
USB port can supply power to this converter to save an extra power adapter.
Package Contents
Before attempting to use this unit, please check the packaging and make sure
the following items are contained in the Packaging:
• 1 x Main Unit
• User Manual
How to Use
Before installation, please make sure all the devices you wish to connect have been
turned o .
1- Connect the HDMI output of this product to the HDTV which has HDMI input (HDMI
Cables are optional).
2- Connect the VGA and USB port of this product to computer.
3- Power on the computer and TV.
4- Set the right resolution of PC to HDTV.
Note: Because the some resolution formats of VGA are not the same with HDTV's, so
not all resolutions of VGA can output to HDTV. Please set these resolutions as listed in
the Speci cation as possible.
Y10A218-B1
®
Features
Upstream:
HDMI - Female
Downstream:
USB-A - Male
• Suppoert Audio & Power
VGA - Male
• Supports common VGA video resolution.
Common VGA Resolution
Features
• Easy to Use: Install in seconds, no need of setting.
• Conversion: It can convert PC's VGA video and USB 2CH audio into complete HDMI.
• Supports 165MHz/1.65Gbps per channel (6.75Gbps all channel) bandwidth.
• Supports 8bit per channel (24bit all channel) deep color.
• Support input resolution up to 1080P
Speci cation
Signal Input / Output
Input Video Signal
Input DDC Signal
Output Video
Operating Frequency
Vertical Frequency Range
Video Ampli er Bandwidth
Mechanical
Size(W-H-D)
VGA line length
USB line length
Warranty
Limited Warranty
Environmental
Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity
Regulatory Approvals
Certi cations
Power Requirement
External Power Supply
Power consumption (Max)
Accessories
User Manual
HDMI
800X600 1024X768
1152X864 1280X600
1280X720 1280X768
1280X800 1280X960
1280X1024 1360X768
1366X768 1400X1050
1440X900 1600X900
1600X1200 1680X1050
1920X1080
0.45-1.1 volts (p-p)
5 volts p-p (TTL)
HDMI
50/60Hz
1.65Gpbs/165MHz
3.1"x0.47"x2.16" - 80x12x 55 mm
1 ft - 0.3m
3.2 ft - 1m
2 Year
0°C to + 45°C - (32°F to + 113°F)
10% to 90 % RH (no condensation)
-10°C to + 70°C - (14°F to + 158°F)
10% to 90 % RH (no condensation)
FCC, CE
NO
1.85W
English Version
