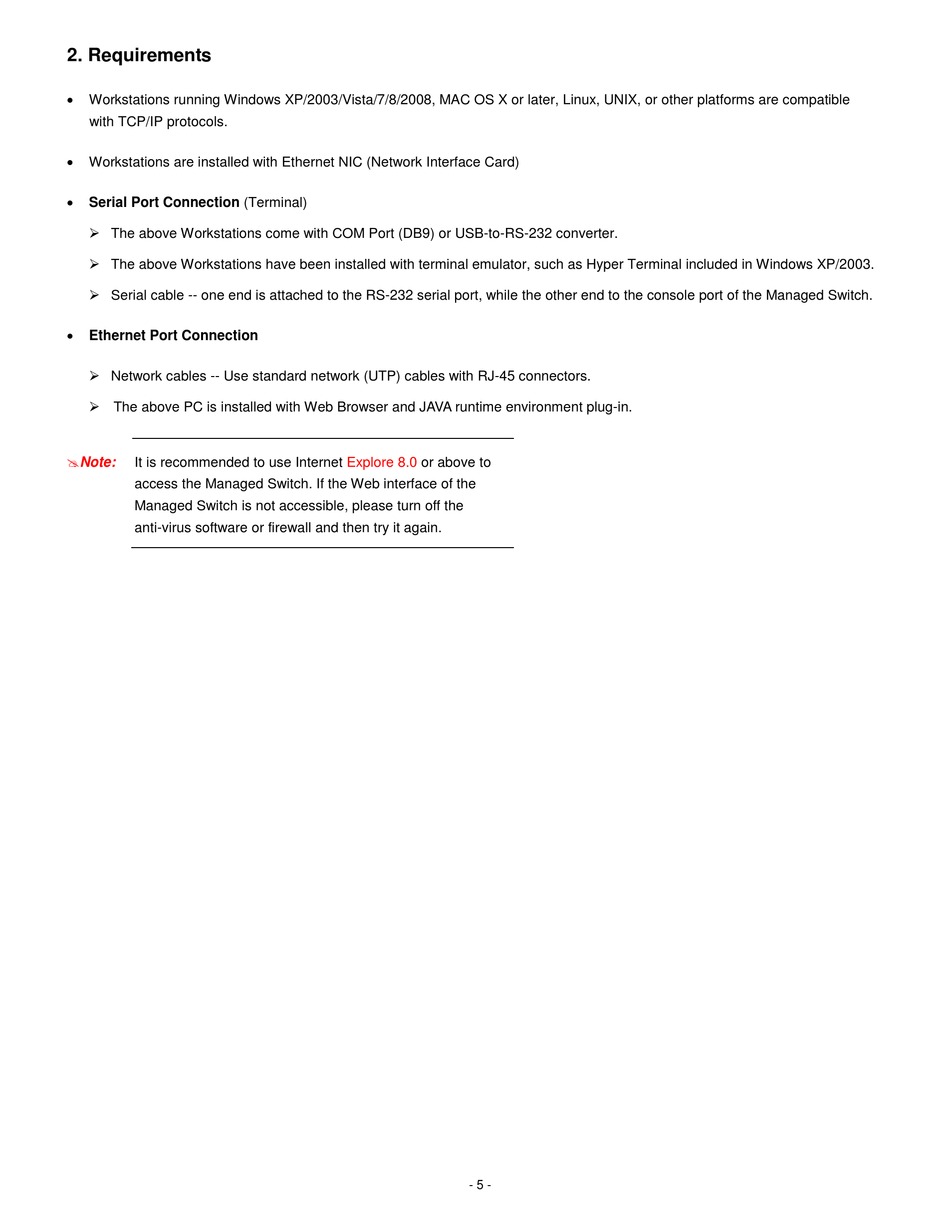

2. Requirements

•
Workstations running Windows XP/2003/Vista/7/8/2008, MAC OS X or later, Linux, UNIX, or other platforms are compatible
with TCP/IP protocols.
•
Workstations are installed with Ethernet NIC (Network Interface Card)
•
Serial Port Connection (Terminal)
 The above Workstations come with COM Port (DB9) or USB-to-RS-232 converter.
 The above Workstations have been installed with terminal emulator, such as Hyper Terminal included in Windows XP/2003.
 Serial cable -- one end is attached to the RS-232 serial port, while the other end to the console port of the Managed Switch.
•
Ethernet Port Connection
 Network cables -- Use standard network (UTP) cables with RJ-45 connectors.
 The above PC is installed with Web Browser and JAVA runtime environment plug-in.
Note:
It is recommended to use Internet
access the Managed Switch. If the Web interface of the
Managed Switch is not accessible, please turn off the
anti-virus software or firewall and then try it again.
Explore 8.0 or above to
- 5 -
