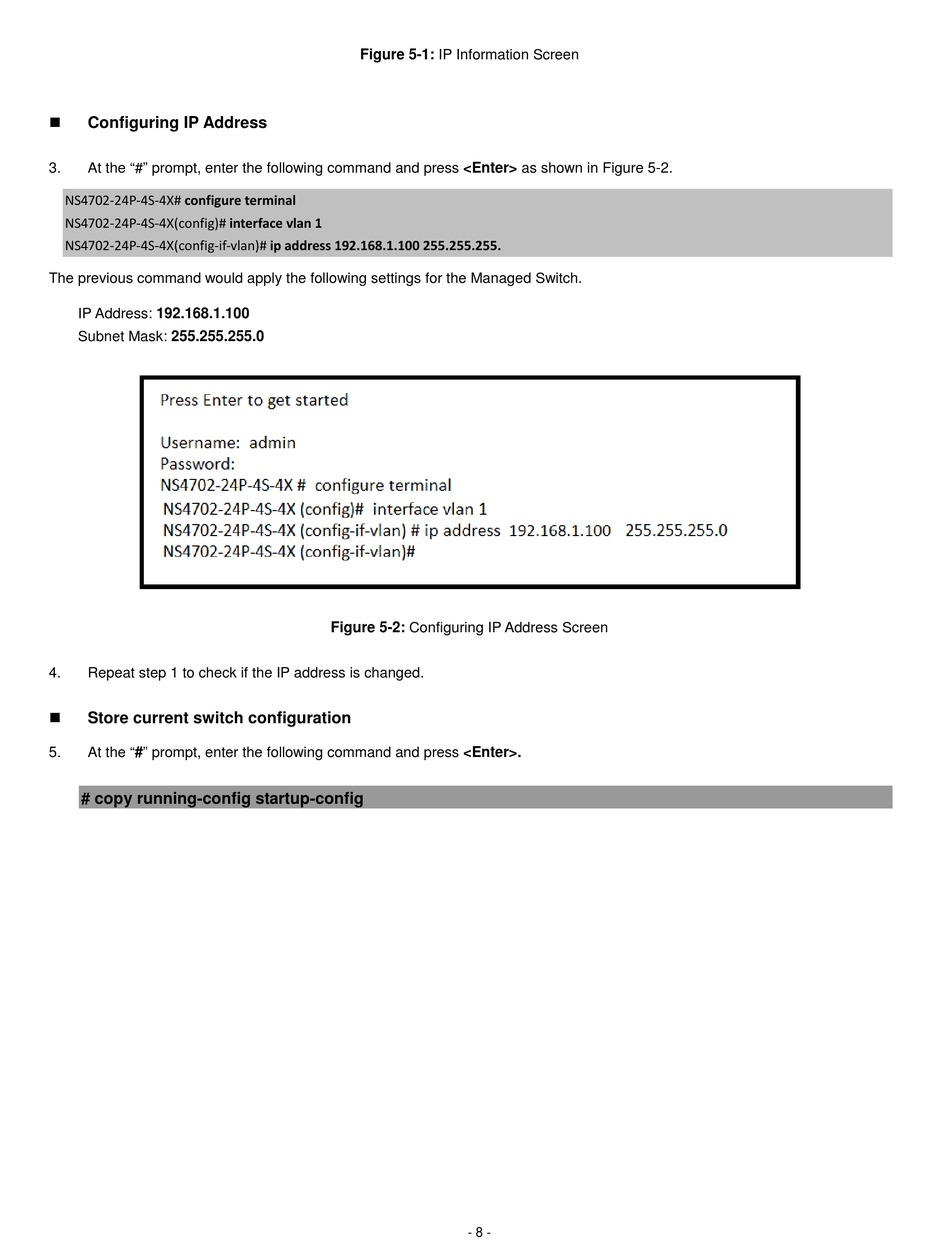

Interlogix NS4702-24P-4S-4X Quick Start Manual page 8


Configuring IP Address
3. At the "#" prompt, enter the following command and press <Enter> as shown in Figure 5-2.
NS4702-24P-4S-4X# configure terminal
NS4702-24P-4S-4X(config)# interface vlan 1
NS4702-24P-4S-4X(config-if-vlan)# ip address 192.168.1.100 255.255.255.
The previous command would apply the following settings for the Managed Switch.
IP Address: 192.168.1.100
Subnet Mask: 255.255.255.0
4. Repeat step 1 to check if the IP address is changed.

Store current switch configuration
5. At the "#" prompt, enter the following command and press <Enter>.
# copy running-config startup-config
Figure 5-1: IP Information Screen
Figure 5-2: Configuring IP Address Screen
- 8 -
