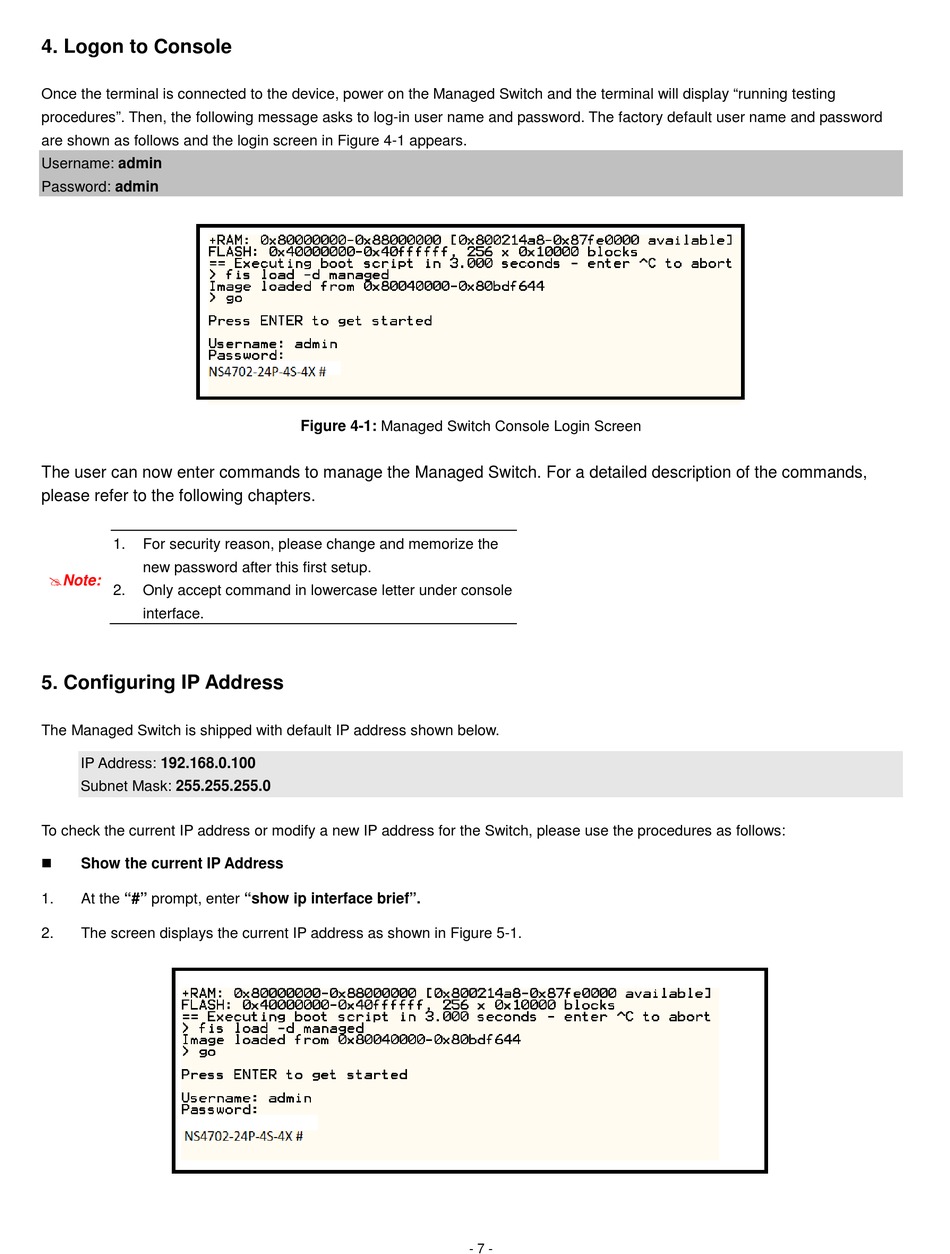

4. Logon to Console

Once the terminal is connected to the device, power on the Managed Switch and the terminal will display "running testing
procedures". Then, the following message asks to log-in user name and password. The factory default user name and password
are shown as follows and the login screen in Figure 4-1 appears.
Username: admin
Password: admin
The user can now enter commands to manage the Managed Switch. For a detailed description of the commands,
please refer to the following chapters.
1. For security reason, please change and memorize the
new password after this first setup.
Note:
2. Only accept command in lowercase letter under console
interface.

5. Configuring IP Address

The Managed Switch is shipped with default IP address shown below.
IP Address: 192.168.0.100
Subnet Mask: 255.255.255.0
To check the current IP address or modify a new IP address for the Switch, please use the procedures as follows:

Show the current IP Address
1. At the "#" prompt, enter "show ip interface brief".
2. The screen displays the current IP address as shown in Figure 5-1.
Figure 4-1: Managed Switch Console Login Screen
- 7 -
