3. Terminal Connection

To configure the system, connect a serial cable to a COM port on a PC or notebook computer and to RJ-45 type of
serial (console) port of the Managed Switch.
A terminal program is required to make the software connection to the Managed Switch. Windows' Hyper Terminal program may
be a good choice. The Hyper Terminal can be accessed from the Start menu.
1. Click START, then Programs, Accessories and then Hyper Terminal.
2. When the following screen appears, make sure that the COM port should be configured as:
♦ Baud
♦ Data bits
♦ Parity
♦ Stop bits
♦ Flow control : None

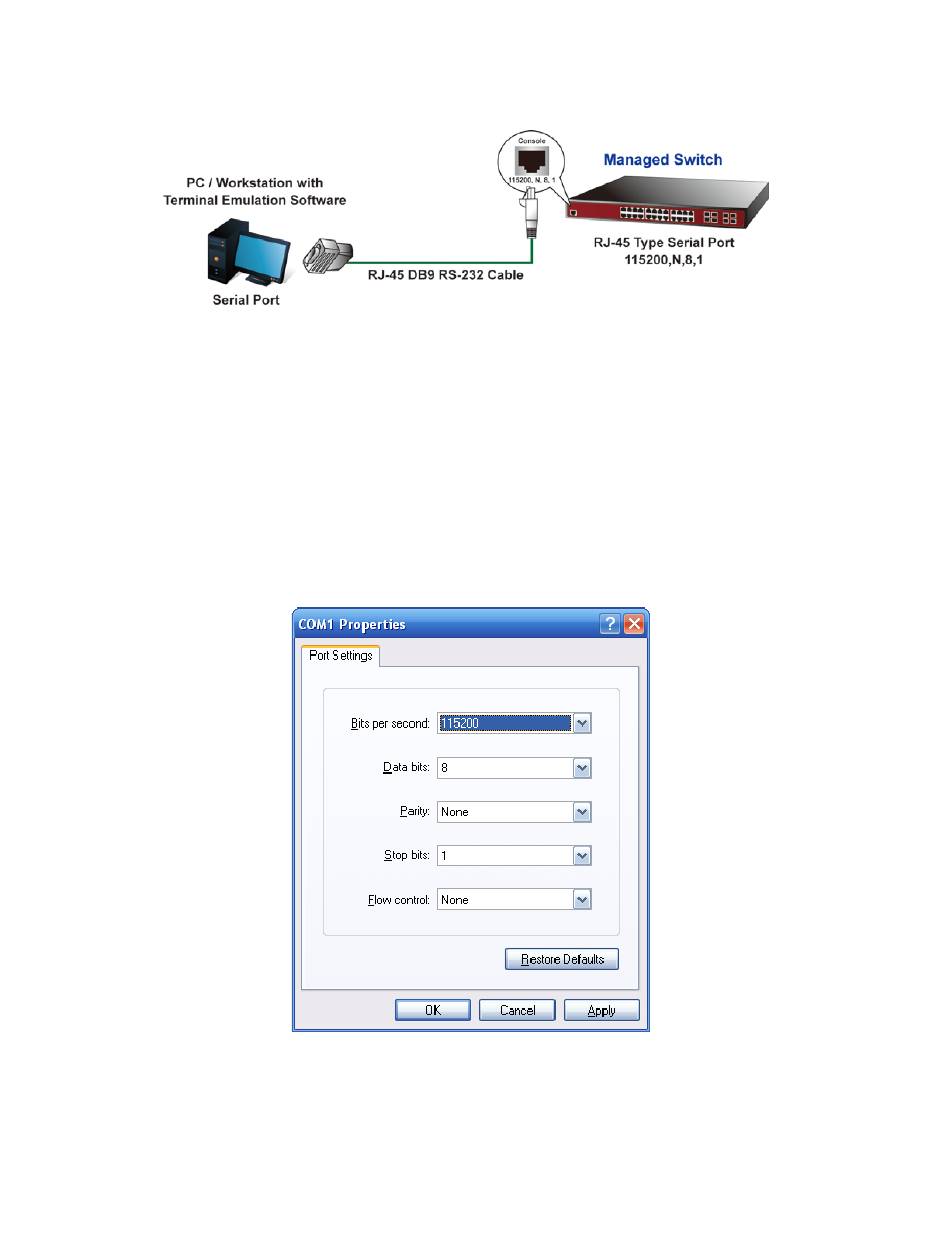

Figure 3-1 Managed Switch Console Connectivity
: 115200
: 8
: None
: 1
Figure 3-2 Hyper Terminal COM Port Configuration
