Summary of Contents for Safe Fleet Rear View Safety RVS-350
-
Page 2: Product Composition

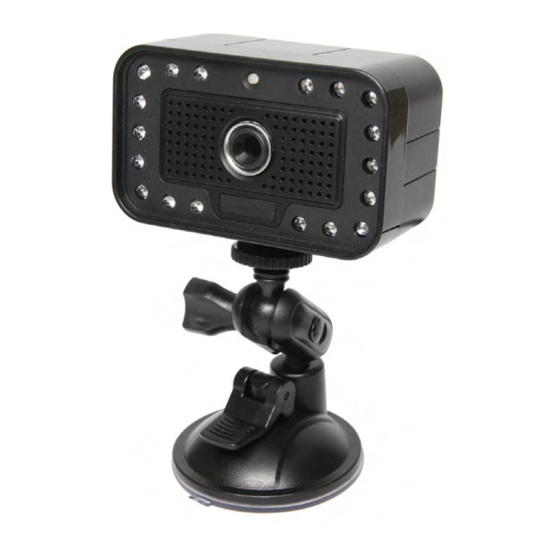

Product Composition includes the host and 5 pin signal line. It can work on all types of vehicle, both 12V and 24V power supply. Caution Do not attempt to disassemble or alter any part of the equipment if you are not authorized Do not driving Please handle carefully, avoid dropping or subjecting the product to severe impacts. -
Page 3: Installation
While every effort has been made to ensure that the information contained in this guide is accurate and complete, for any errors or omissions. We reserve the right to change the specifications of the hardware and software described herein at anytime without prior notice. does not recognize the people who have only one eye, white eyebrows, rough scars or wrinkles around eyebrows. -
Page 4: Sensitivity Setting
under the strong light, the distance should be between 60cm-70cm. the distance is between 70cm to 80cm. Sit in the normal driving position. If the green light is on indicat that the driver has been detected If the green light is still on or flashing when the driver moves from left right and down up, Sensitivity Setting quickly detect... - Page 5 The volume can be by adjusting the witches (DP-4). 3A: DIP4=OFF (down), high volume. DIP4=ON (up), low volume. (3A) Notes: After adjusting the DIP sensitivity switch doesn’t disconnect Speed When the speed is lower than Speed detection is calculated by GPS signal. For GPS satellite signal search is 2 minutes...
-
Page 6: Power Supply
Power Supply power input is 9V-32V t works with both 12V and 24V power Driver Fatigue Monitor System low power consumption 12V the average current is less than 100mA 24V, the average current is about 60mA. Pin number Definition of signal pin-1 Power+ DC12V/DC24V Black... - Page 7 Note: Do not touch the power+ to the input and output signal lines. " atigue arning" Signal Chart: The ON(GND) signals detect driver fatigue. 4.2V 0V(GND) Normal Alarm(ON) Alarm release(Normal) is an electronic device with a high-speed image processing CPU, it is designed to use the vehicle power supply.
- Page 8 Glasses Sunglasses Contact ens or drivers who wear glasses sunglasses or ontact lens If they wear the glasses with better to p the glasses a little bit more up on the nose, or install the hos lower (the position is lower if installing inside the dash board) eople who wear sunglasses install the host closer, we suggest wear sunglasses.
- Page 9 Industrial Products 5717 Salmen Street New Orleans, LA 70123 industrialproducts.com | sales@industrialproducts.com 888-243-3339...
