- Page 1 Instruction Manual G-Series Rear View Replacement Mirror Monitor with Three 3.5” Displays RVS-M631 RVS Systems Inc. © 2017 Reverse With Confidence ™...
- Page 2 Introduction....... 03 Safety Information......04-06 Before Beginning Installation .
- Page 3 NOTE! Please read all of the installation instructions carefully before installing the product. Improper installation will void manufacturer’s warranty. Congratulations on purchasing a Rear View Backup Camera System! With this manual you will be able to properly install and operate the unit. The Backup Camera System is intended to be installed as a supplement aid to your standard rear view mirror that already exists in your vehicle.
- Page 4 Please read the entire manual and follow the instructions and warnings carefully. Failure to do so can cause serious damage and or injury, including loss of life. Be sure to obey all applicable local traffic and motor vehicle regulations as it pertains to this product. Improper installation will void manufacturer’s warranty.
-
Page 5: Installation
INSTALLATION: • Electric shock or product or disconnected wire may cause a malfunction may occur if this fire. product is installed incorrectly. • While installing the Rear View System be careful with the wire • Use this product within positioning in order to avoid wire the voltage range specified. - Page 6 If you have questions about this product, contact: RVS Systems 1797 Atlantic Avenue Brooklyn, NY 11233 Tel: 1.800.764.1028 IN NO EVENT SHALL SELLER OR MANUFACTURER BE LIABLE FOR ANY DIRECT OR CONSEQUENTIAL DAMAGES OF ANY NATURE, OR LOSSES OR EXPENSES RESULTING FROM ANY DEFECTIVE PRODUCT OR THE USE OF ANY PRODUCT.
- Page 7 Before drilling please check that no cable or wiring is on the other side of the wall. Please clamp all wires securely to reduce the possibility of them being damaged while vehicle is in use. Keep all cables away from hot or moving parts and electrical noisy components. We recommend doing a benchmark test before installation to insure that all components are working properly.

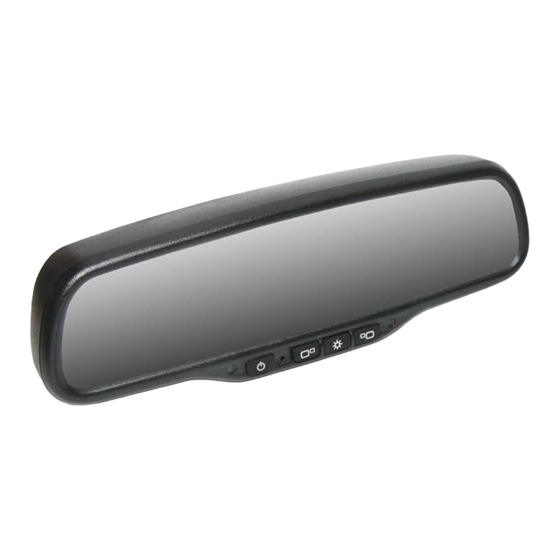

- Page 8 Replacement Monitor The mirror monitor replaces the existing car mirror. Carefully remove the mirror off the “pin”. Slide the replacement mirror on to the pin and secure it with the screw provided (already in the screw hole).Differ- ent cars have different brackets. Depending on your vehicle make and manufacturer.
- Page 9 Wiring After connecting the camera to the “camera cable” the camera should be plugged into AV2 input. Connect the RED 12V power wire to an ignition power source and the BLACK 12V ground wire to a chassis ground. The GREEN wire is the REVERSE trigger wire. Connect this wire to the vehicle’s backup light circuit to activate the rear-view image whenever the vehicle shifts into reverse.
- Page 10 FIGURE 1.1 Different cars have different brackets. It depends on your vehicle maker and manufacturer. There are many methods to remove the original rear-view mirror, however, please don’t force the mirror off the bracket. The manufacturer will not be responsible for any damage caused by an incorrect installation of the mirror.
- Page 11 FIGURE 1.2 A good position to install a camera at the rear of car is the top of the license plate, as shown in the image above. Reverse With Confidence ™...
- Page 12 FIGURE 2.2 RVS Systems...
- Page 13 Reverse With Confidence ™...
- Page 14 When the system is turned on, a booting up logo will appear. If during this process the car is put into reverse and a rear view camera is connected, the logo will be interrupted and the system will enter into reverse mode. If there is a video signal, the system will enter a standby mode.
- Page 15 Location Recommendation Of Camera Installation Reverse With Confidence ™...
- Page 16 How To Display The Rear View Mirror Screen. Driving: When driving, the mirror will display the images from the front cameras. The left screen displays FL (front left), the middle screen displays FM (front middle), and right screen displays FR (front right).
- Page 17 Braking: If the screen off before braking, FL will be displayed on the left screen, FM will displayed on the middle screen, and FR will be displayed on the right screen. Basic Functions Highly Reflective Mirror In addition to being a monitor, the system is also highly reflective mir- ror.
-
Page 18: Specifications
SPECIFICATIONS: Screen Size 3.5" Dot Resolution 320 x 3 (RGB) x 240 Display Format 4:3 / 250:1 Display Brightness 8001x Viewing Angle U: 15°, D: 35°, L&R: 45° Video Input 6 Channel Video Source 1Vp-p, 75Ω Power Supply DC 9V - 18V (+/-10%) Power Consumption Operating Temperature -30°C ~ +70°C... - Page 19 Problems Diagnoses Solutions Recording frequently stops 1. Motion detection is on 1. Turn off motion detection 2. The SD card is too small to read and store information 2. Use a larger higher class SD card Camera input is working but no 1.
- Page 20 ONE YEAR WARRANTY RVS SYSTEMS, INC. WARRANTS THIS PRODUCT AGAINST MATERIAL DEFECTS FOR A PERIOD OF ONE YEAR FROM DATE OF PURCHASE. WE RESERVE THE RIGHT TO REPAIR OR REPLACE ANY SUCH DEFECTIVE UNIT AT OUR SOLE DISCRETION. RVS SYSTEMS, INC. IS NOT RESPONSIBLE FOR A DEFECT IN THE SYSTEM AS A RESULT OF MISUSE, IMPROPER INSTALLATION, DAMAGE OR MISHANDLING OF THE ELECTRONIC COMPONENTS.
- Page 21 DISCLAIMER RVS SYSTEMS AND/OR ITS AFFILIATES DOES NOT GUARANTEE OR PROMISE THAT THE USER OF OUR SYSTEMS WILL NOT BE IN/PART OF AN ACCIDENT OR OTHERWISE NOT COLLIDE WITH AN OBJECT AND/OR PERSON. OUR SYSTEMS ARE NOT A SUBSTITUTE FOR CAREFUL AND CAUTIOUS DRIVING OR FOR THE CONSISTENT ADHERENCE TO ALL APPLICABLE TRAFFIC LAWS AND MOTOR VEHICLE SAFETY REGULATIONS.
- Page 22 If you have any questions about this product, contact: RVS Systems, Inc. 1797 Atlantic Avenue Brooklyn, NY 11233 800.764.1028 Better Cameras. Better Service. IT’S OUR GUARANTEE. RVS Systems...
