Safe Fleet RVS Systems RVS-776718-BT Instruction Manual

Safe Fleet RVS Systems RVS-776718-BT Instruction Manual

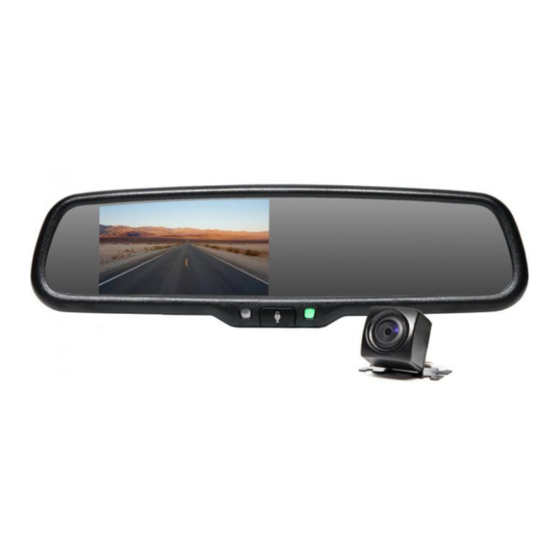

Backup camera system with bluetooth

Advertisement

Quick Links

Instruction Manual
G-SERIES Backup Camera System with Bluetooth
RVS-776718-BT
RVS Systems, Inc. © 2015
1
Reverse With Confidence ™

Advertisement

loading
Need help?

Need help?

Do you have a question about the RVS Systems RVS-776718-BT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Safe Fleet RVS Systems RVS-776718-BT

  • Page 1 Instruction Manual G-SERIES Backup Camera System with Bluetooth RVS-776718-BT RVS Systems, Inc. © 2015 Reverse With Confidence ™...
  • Page 2 Introduction....... 03 Safety Information......04-06 Before Beginning Installation .
  • Page 3 NOTE! Please read all of the installation instructions carefully before installing the product. Improper installation will void manufacturer’s warranty. Congratulations on purchasing a Rear View Backup Camera System! With this manual you will be able to properly install and operate the unit. The Backup Camera System is intended to be installed as a supplement aid to your standard rear view mirror that already exists in your vehicle.
  • Page 4 Please read the entire manual and follow the instructions and warnings carefully. Failure to do so can cause serious damage and or injury, including loss of life. Be sure to obey all applicable local traffic and motor vehicle regulations as it pertains to this product. Improper installation will void manufacturer’s warranty.
  • Page 5: Installation

    INSTALLATION: • Electric shock or product or disconnected wire may cause a malfunction may occur if this fire. product is installed incorrectly. • While installing the Rear View System be careful with the wire • Use this product within positioning in order to avoid wire the voltage range specified.
  • Page 6 If you have questions about this product, contact: RVS Systems 1797 Atlantic Avenue Brooklyn, NY 11233 Tel: 1.800.764.1028 IN NO EVENT SHALL SELLER OR MANUFACTURER BE LIABLE FOR ANY DIRECT OR CONSEQUENTIAL DAMAGES OF ANY NATURE, OR LOSSES OR EXPENSES RESULTING FROM ANY DEFECTIVE PRODUCT OR THE USE OF ANY PRODUCT.
  • Page 7 Before drilling please check that no cable or wiring is on the other side of the wall. Please clamp all wires securely to reduce the possibility of them being damaged while vehicle is in use. Keep all cables away from hot or moving parts and electrical noisy components. We recommend doing a benchmark test before installation to insure that all components are working properly.
  • Page 8 Replacement Monitor The mirror monitor replaces the existing car mirror. Carefully remove the mirror off the “pin”. Slide the replacement mirror on to the pin and secure it with the screw provided (already in the screw hole).Differ- ent cars have different brackets. Depending on your vehicle make and manufacturer.
  • Page 9 Wiring After connecting the camera to the “camera cable” the camera should be plugged into AV2 input. Connect the RED 12V power wire to a an ignition power source and the BLACK 12V ground wire to a chassis ground. The GREEN wire is the REVERSE trigger wire. Connect this wire to the vehicle’s backup light circuit to activate the rear-view image whenever the vehicle shifts into reverse.
  • Page 10 FIGURE 1.1 FIGURE 1.2 RVS Systems...
  • Page 11 FIGURE 2.2 Reverse With Confidence ™...
  • Page 12: Specifications

    About Our Monitor 10.25” 3” SPECIFICATIONS: Screen Size: 4.3” Display Screen: TFT-LCD Display Resolution: 400(H)x272(V) Aspect Ratio: 16:9 Color Depth: 16.7M dithering Pixel Pitch (mm) 0.219x0.219 Power Consumption: Working Voltage: DC12V Video Input: NTFS/PAL Video input Signal System: PAL/Auto/NTSC RVS Systems...
  • Page 13 FIGURE 2.1 1. RED- Power (+) 2. YELLOW- Video 3. GREEN- Mirror / Normal Imaging 4. WHITE- Audio 5. BLACK- Ground (-) Reverse With Confidence ™...
  • Page 14 Grid Lines Generally, to help drivers estimate the distance from obstacles, there are three lines for reference- red, yellow, and green. Those three lines are dis- played on the monitor when car is reversing. The green line is 3M from the back of the car and the yellow line is 6.5 ft.
  • Page 15 Long press the settings button to enter into “guide line adjustment” mode. The upper half of the remote is used to adjust the left guide line while the bottom half of the remote is used to adjust the right one. The up, down, left and right buttons are used to adjust the location of guide lines.
  • Page 16 Start Up The first time you use the rear view mirror, Bluetooth will automati- cally turn on when the car is started. Wait for 1 minute to connect your phone with the mirror. During this first minute, the mirror will search for the last paired phone.
  • Page 17 Manual Bluetooth Connection If your phone is not connected to the rear view mirror and the screen is off, long press the center button to manually reconnect Bluetooth. Successfully Connected After the password has been set, a Bluetooth icon will appear on the monitor.
  • Page 18 Backup Camera Display And Manual Brightness Adjustment After installation, place the vehicle in reverse and the backup camera image will automatically display on the monitor. Once this image is displayed, you can manually adjust the monitors’ brightness by press- ing the center button. The brightness can be adjusted from 10 to 100. The OSD menu will disappear after 5 seconds of inactivity.
  • Page 19 No Image On Screen • Do a hard reset, unplug all cables • Verify camera is on correct camera and power cables, leave out for 1 input minute, and re-connect them • Verify cable is connected to • Check to ensure that the monitor connection to the camera is tight •...
  • Page 20 ONE YEAR WARRANTY RVS SYSTEMS, INC. WARRANTS THIS PRODUCT AGAINST MATERIAL DEFECTS FOR A PERIOD OF ONE YEAR FROM DATE OF PURCHASE. WE RESERVE THE RIGHT TO REPAIR OR REPLACE ANY SUCH DEFECTIVE UNIT AT OUR SOLE DISCRETION. RVS SYSTEMS, INC. IS NOT RESPON- SIBLE FOR A DEFECT IN THE SYSTEM AS A RESULT OF MISUSE, IMPROPER INSTALLATION, DAMAGE OR MISHANDLING OF THE ELECTRONIC COMPONENTS.
  • Page 21 DISCLAIMER RVS SYSTEMS AND/OR ITS AFFILIATES DOES NOT GUARANTEE OR PROMISE THAT THE USER OF OUR SYSTEMS WILL NOT BE IN/PART OF AN ACCIDENT OR OTHERWISE NOT COLLIDE WITH AN OBJECT AND/OR PERSON. OUR SYSTEMS ARE NOT A SUBSTITUTE FOR CAREFUL AND CAU- TIOUS DRIVING OR FOR THE CONSISTENT ADHERENCE TO ALL APPLICABLE TRAFFIC LAWS AND MOTOR VEHICLE SAFETY REGULATIONS.
  • Page 22 If you have any questions about this product, contact: RVS Systems, Inc. 1797 Atlantic Avenue Brooklyn, NY 11233 800.764.1028 Better Cameras. Better Service. IT’S OUR GUARANTEE. RVS Systems...
