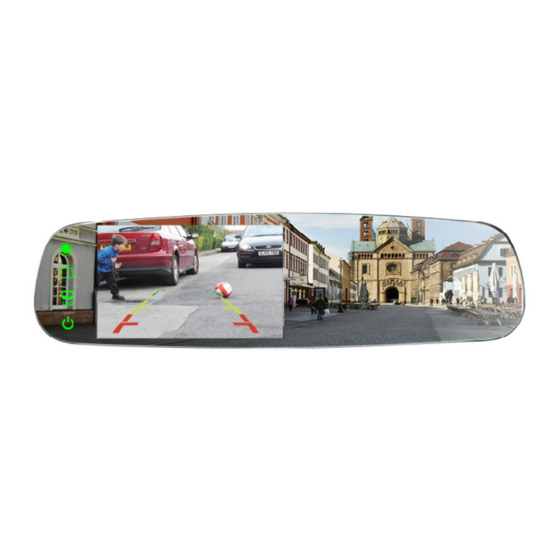

- Page 1 Instruction Manual G-Series Rear View Frameless Mirror Monitor RVS-718-FL Reverse With Confidence ™...
-
Page 2: Table Of Contents
Introduction......Safety Information......04-06 Before Beginning Installation . -
Page 3: Introduction
NOTE! Please read all of the installation instructions carefully before installing the product. Improper installation will void manufacturer’s warranty. Congratulations on purchasing a Rear View Backup Camera System! With this manual you will be able to properly install and operate the unit. The Backup Camera System is intended to be installed as a supplement aid to your standard rear view mirror that already exists in your vehicle. -
Page 4: Safety Information
Please read the entire manual and follow the instructions and warnings carefully. Failure to do so can cause serious damage and/or injury, including loss of life. Be sure to obey all applicable local traffic and motor vehicle regulations as it pertains to this product. Improper installation will void manufacturer’s warranty. - Page 5 INSTALLATION: • Electric shock or product or disconnected wire may cause a malfunction may occur if this fire. product is installed incorrectly. • While installing the Rear View System be careful with the wire • Use this product within positioning in order to avoid wire the voltage range specified.
- Page 6 If you have questions about this product, contact: Rear View Safety 1797 Atlantic Avenue Brooklyn, NY 11233 Tel: 1.800.764.1028 IN NO EVENT SHALL SELLER OR MANUFACTURER BE LIABLE FOR ANY DIRECT OR CONSEQUENTIAL DAMAGES OF ANY NATURE, OR LOSSES OR EXPENSES RESULTING FROM ANY DEFECTIVE PRODUCT OR THE USE OF ANY PRODUCT.
-
Page 7: Before Beginning Installation
Before drilling please check that no cable or wiring is on the other side of the wall. Please clamp all wires securely to reduce the possibility of them being damaged while vehicle is in use. Keep all cables away from hot/moving parts and electrical noisy components. We recommend doing a benchmark test before installation to insure that all components are working properly. -
Page 8: Installation Guide
Replacement Monitor The mirror monitor replaces the existing car mirror. Carefully remove the mirror off the “pin”. Slide the replacement mirror on to the pin and secure it with the screw provided (already in the screw hole).Differ- ent cars have different brackets. Depending on your vehicle make and manufacturer. - Page 9 Wiring After connecting the camera to the “camera cable” the camera should be plugged into AV2 input. Connect the RED 12V power wire to a an ignition power source and the BLACK 12V ground wire to a chassis ground. The GREEN wire is the REVERSE trigger wire. Connect this wire to the vehicle’s backup light circuit to activate the rear-view image whenever the vehicle shifts into reverse.
-
Page 10: Monitor Introduction
Monitor Introduction 1) Toggle selection up 2) Menu 3) Toggle selection down 4) Video switch/turn off display Rear View Safety... -
Page 11: In The Box
In The Box 1 x Replacement Frameless Mirror Monitor with 4.3" Display 1 x Power Harness with Two Camera Inputs 1 x Remote Control 1 x Screw Kit for Installation Reverse With Confidence ™... -
Page 12: Adjustable Grid Lines
Grid Lines Generally, to help drivers estimate the distance from obstacles, there are three lines for reference- red, yellow, and green. Those three lines are dis- played on the monitor when car is reversing. The green line is 10 feet from the back of the car and the yellow line is 6.5 feet away. -
Page 13: Installation + Wire
FIGURE 1.1 FIGURE 1.2 Reverse With Confidence ™... - Page 14 FIGURE 2.1 Backup Camera Video In Red To Ignition +12V Green To Reverse Signal Black To GND 1. RED- Power (+) 2. YELLOW- Video 3. GREEN- Mirror / Normal Imaging 4. WHITE- Audio 5. BLACK- Ground (-) Rear View Safety...
- Page 15 FIGURE 2.2 Reverse With Confidence ™...
-
Page 16: Remote Introduction
Remote Introduction Remote Introduction Press the button to toggle L/R gridlines Clockwise Left Right Down Counterclockwise Remote control Adjust grid line Rotate gride line Rear View Safety... -
Page 17: Monitor Specifications
Monitor Information Screen Size 4.3" Dot Resolution 480 x 3 (RGB) x 272 Display Format TFT-LCD Working Voltage Video System PAL/Auto/NTSC Video Input 2 Channel Working Temperature -20°C ~ +65°C Brightness 660 cd/m2 Overall Dimensions 3.15" (H) x 10.55" (L) x 1" (D) Reverse With Confidence ™... -
Page 18: Warranty
ONE YEAR WARRANTY REAR VIEW SAFETY, INC. WARRANTS THIS PRODUCT AGAINST MATERIAL DEFECTS FOR A PERIOD OF ONE YEAR FROM DATE OF PURCHASE. WE RESERVE THE RIGHT TO REPAIR OR REPLACE ANY SUCH DEFECTIVE UNIT AT OUR SOLE DISCRETION. REAR VIEW SAFETY, INC. IS NOT RESPONSIBLE FOR A DEFECT IN THE SYSTEM AS A RESULT OF MISUSE, IMPROPER INSTALLATION, DAMAGE OR MISHANDLING OF THE ELECTRONIC COMPONENTS. -
Page 19: Disclaimer
DISCLAIMER REAR VIEW SAFETY AND/OR ITS AFFILIATES DOES NOT GUARANTEE OR PROMISE THAT THE USER OF OUR SYSTEMS WILL NOT BE IN/PART OF AN ACCIDENT OR OTHERWISE NOT COLLIDE WITH AN OBJECT AND/OR PERSON. OUR SYSTEMS ARE NOT A SUBSTITUTE FOR CAREFUL AND CAUTIOUS DRIVING OR FOR THE CONSISTENT ADHERENCE TO ALL APPLICABLE TRAFFIC LAWS AND MOTOR VEHICLE SAFETY REGULATIONS. - Page 20 If you have any questions about this product, contact: Rear View Safety, Inc. 1797 Atlantic Avenue Brooklyn, NY 11233 800.764.1028 Better Cameras. Better Service. IT’S OUR GUARANTEE. Rear View Safety...
