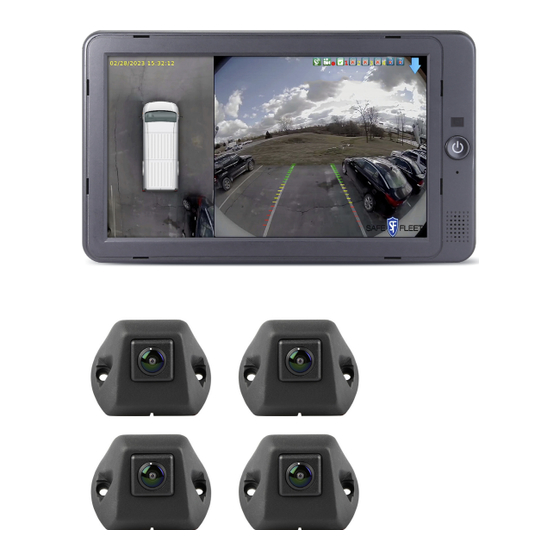

Safe Fleet RVS inView 360 Instruction Manual

Hd quick-install system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

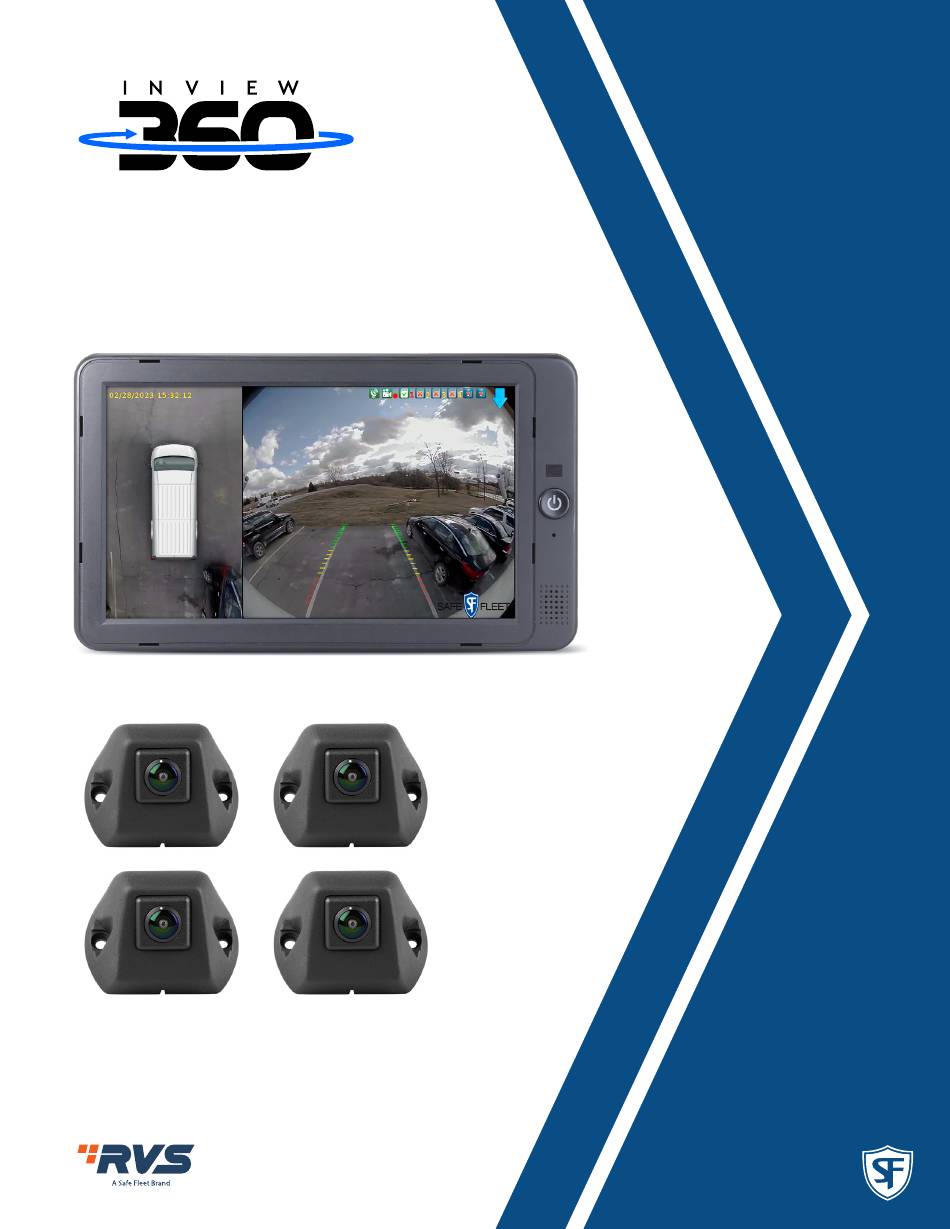

inView 360° HD Quick-Install System
RVS-360-MO
Instruction Manual
© Rear View Safety 2024

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RVS inView 360 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Safe Fleet RVS inView 360

Summary of Contents for Safe Fleet RVS inView 360

  • Page 1 inView 360° HD Quick-Install System RVS-360-MO Instruction Manual © Rear View Safety 2024...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Introduction ....................3 In The Box ......................3 Safety Information ..................4 Precautions ....................5 Maintenance ....................8 2. Connection Diagram .................9 3. Technical Specifications ...............10 4. Operation Instruction ................11 4.1 Remote Controller .................11 4.2 User Interface ..................12 4.3 Automatic Calibration ................12 Warranty ......................30 Disclaimer ....................31 Rear View Safety, 1797 Atlantic Ave., Brooklyn NY 11233...

  • Page 3: Introduction

    INTRODUCTION Congratulations on purchasing the inView 360° HD Quick-Install System with 5-minute calibration! With this manual you will be able to properly install and operate the unit. The system should not be used as a substitute for the standard rear view mirror or for any other mirror that exists in your vehicle.

  • Page 4: Safety Information

    SAFETY INFORMATION PLEASE READ THE ENTIRE MANUAL AND FOLLOW THE INSTRUCTIONS AND WARNINGS CAREFULLY. FAILURE TO DO SO CAN CAUSE SERIOUS DAMAGE AND/OR INJURY, INCLUDING LOSS OF LIFE. BE SURE TO OBEY ALL APPLICABLE LOCAL TRAFFIC AND MOTOR VEHICLE REGULATIONS AS IT PERTAINS TO THIS PRODUCT.

  • Page 5: Precautions

    PRECAUTIONS INSTALLATION Electric shock or product malfunction may occur if this product is installed incorrectly. Use this product within the voltage range specified. Failure to do so can • cause electronic shock or product malfunction. Take special care when cleaning the monitor. •...
  • Page 6 If you have questions about this product, please contact us at: 800.764.1028 RVS.Sales@safefleet.net www.rearviewsafety.com New York 1797 Atlantic Ave Brooklyn, NY 11233 Indiana 319 Roske Dr. Elkhart, Indiana 46516 Canada 68 Trafalgar Square Thornhill, ON, L4J 7M5, Canada IN NO EVENT SHALL SELLER OR MANUFACTURER BE LIABLE FOR ANY DIRECT OR CONSEQUENTIAL DAMAGES OF ANY NATURE, OR LOSSES OR EXPENSES RESULTING FROM ANY DEFECTIVE PRODUCT OR THE USE OF ANY PRODUCT.

  • Page 7: Storage And Keeping

    PRECAUTIONS Storage and Keeping Do not expose the System to excessive heat or cold. The storage temperature of this device is -30~+80°C, and the operating temperature is -20~+70°C. The humidity is RH90%. Never use this device near a bathtub, wash basin, kitchen, damp basement, swimming pool or similar places.

  • Page 8: Maintenance

    MAINTENANCE 1. Remove all the cable connections from the control box before cleaning the device. 2. Use a mild household detergent and clean the unit with a slightly damp, soft cloth. 3. Never use strong solvents such as thinner or benzine, as they might damage the finish of the device.

  • Page 9: Connection Diagram

    2. CONNECTION DIAGRAM White 4P male - Left Camera. Blue 4P male - Right Camera. Green 4P male - Front Camera. Brown 4P male - Rear Camera. Red Wire - Positive battery power DC 10-32V. Yellow Wire - ACC controlled power. (Used to wake system/save files on shutdown.) Black Wire - Ground.

  • Page 10: Technical Specifications

    3. TECHNICAL SPECIFICATIONS Monitor 4CH×720P@25/720P@30 or Input Video 4CHx1080P@25/1080P@30 2D and 3D Display Style Video Output 720P 50/60 Refresh Rate Working Voltage 9-32V Working Voltage Range for Trigger 8-32V Signal Inputs <2A/12V Working Electric Current Working Temperature Range -20°C-70°C Storage Temperature -40°C ~85°C Working Humidity 10%-95%...

  • Page 11: Operation Instruction

    4. OPERATION INSTRUCTION 4.1 REMOTE CONTROLLER ENTER: Enter main menu or confirm menu • selection. ESC: Exit main menu interface/return to main • menu interface. LEFT, RIGHT: Left,Right /Minus, Plus button. • Shift image channel to left/right view, or operate plus/minus in main menu interface. UP, DOWN: Front/Back button.

  • Page 12: User Interface

    4.2 USER INTERFACE 4.2.1. Log in Interface Password (factory default is 88888888) confirm to log in reset password exit 5.2.2. Password reset current password new password confirm password save setting Rear View Safety, 1797 Atlantic Ave., Brooklyn NY 11233 800.764.1028 RVS.Sales@safefleet.net www.rearviewsafety.com...
  • Page 13 4.2.3. User main interface User Setup: Basic Setup, Display, Trigger, ADAS Setup (optional equipment), Radar, Screen Setup. Storage: Usage, Format Data AVM: Calibration File, Vehicle Type, Surround View and Outrigger. Information: Software version information and upgrading Rear View Safety, 1797 Atlantic Ave., Brooklyn NY 11233 800.764.1028 RVS.Sales@safefleet.net www.rearviewsafety.com...
  • Page 14 4.2.3.1 User Setup Interface Rear View Safety, 1797 Atlantic Ave., Brooklyn NY 11233 800.764.1028 RVS.Sales@safefleet.net www.rearviewsafety.com...
  • Page 15 1) Basic Setup: basic settings interface, as shown below Display Icon: hide display icons on main screen (except direction arrows). Language: Temporarily only English is available. Rear View Safety, 1797 Atlantic Ave., Brooklyn NY 11233 800.764.1028 RVS.Sales@safefleet.net www.rearviewsafety.com...
  • Page 16 2) Display: select display mode, as shown below Blending Region: blending overlapping ON/OFF. Instant Rear View: Toggle On/Off, the default is ON. When set to OFF, the boot mode is to display the boot logo and then display the panorama screen. When it is set to ON, the single view will appear after booting for 3 seconds, and then the panoramic image will be displayed, requiring the back single view to be a mirror image.
  • Page 17 3) Trigger: The trigger line setting interface Trigger Priority: Trigger priority, default value is None. When set to None: Panorama will display the first triggered view. For example, when the rear trigger wire (Brown wire) is activated,, the rear view camera is displayed in a panoramic view. At this time, if the left trigger wire (White wire) is also activated, the back road camera is still displayed in the panorama.
  • Page 18 NOTE: The trigger delay is 3s. When a trigger is disconnected, wait for 3s before returning to the default interface. 4) ADAS Setup: ADAS assistance Setup (optional equipment - Coming Soon 2025) Detect Switch: On and Off setup 5) Radar setup interface (Radar/Sensors sold separately) Exit button Enter radar sensor setup interface...
  • Page 19 Unit: Default value of unit parameter setting is Meter. Meter / Inch selectable. Trigger Control: This setting is ON by default. When enabled, the sensor will respond when the reverse trigger has been activated; When the trigger control is off, the radar system will constantly respond when activated by a close object.
  • Page 20 6. Screen Setup Dimmer setup: set screen brightness, user can select Low, Mid, High and Auto. When set to Auto, monitor will turn on auto back-light function, and the screen will turn bright in bright conditions (Day mode) and turn dark in dim conditions (Night mode). Rear View Safety, 1797 Atlantic Ave., Brooklyn NY 11233 800.764.1028 RVS.Sales@safefleet.net www.rearviewsafety.com...
  • Page 21 7. AVM Interface Automatic Calibration: Automatic Calibration Calibration File: Calibration images export and calibration results import Vehicle Type: Vehicle Type overlay setting Surround View: Blending angle and surround view parameter setting Outrigger: Outrigger parameter setting Parking Line: Reversing cursor adjustment Rear View Safety, 1797 Atlantic Ave., Brooklyn NY 11233 800.764.1028 RVS.Sales@safefleet.net www.rearviewsafety.com...

  • Page 22: Automatic Calibration

    4.3 AUTOMATIC CALIBRATION Cancel: Cancel button, click this to exit calibration interface. Calibrate: Automatic calibration button, click to enter automatically calibration mode. Calibrate Log: Display of calibration log. Precautions: 1. Each camera should fully see the two nearby calibration mats and cannot be blocked by objects. 2.
  • Page 23 Vehicle Type: Used to modify the type of car model shown during the top down vehicle view. Precision: High accuracy adjustment of vehicle length, width and model movement,default value is 1. (optional values 1, 5, 10, 15 pixels). Vehicle Length: Used for vehicle length adjustment. Click“-”to decrease vehicle length; Click“+”to increase vehicle length Vehicle Width: Used for vehicle width adjustment, Click“-”to decrease vehicle width;...
  • Page 24 4.3.1 Calibration File Setup: calibration images export and calibration results import Note: this interface does not refresh a USB storage device in real time, user must first connect USB before entering this interface. Export: Export calibration images to USB Drive, including 6channel camera images and XML file Import: Import the calibrated result to ECU.
  • Page 25 type: copy vehicle type in PNG format to USB drive, and set it in ECU to be the correct vehicle type. 4.3.3 Surround View Setup: Blending angle and surround view parameters setting Blending angle setting: Blending angle of 4 corners can be set separately, range is 0 to 90° Width setting per channel: Width value of 4 channels can be set separately.
  • Page 26 ON/OFF: Outrigger ON/OFF. ON display, OFF hidden. Length setting: Outrigger length setting (when Unit is inch range is 0-111 inch, when unit is cm, range is 0-284cm) Width setting: Outrigger width setting (when Unit is inch range is 0-37inch when unit is cm, range is 0-95cm) Position-Y%: Set the display percentage based on vehicle size adjust the location of Outrigger.
  • Page 27 4.2.3.4 Information Current Version: current software version. Upgrade Configure: configuration file upgrade. Upgrade: Version upgrade, select the version that needs to be upgraded and click button. System Setup: Reset: Reset to default setting. Import: Import the configuration file. Export: Export the configuration file (currently the configuration file does not include AVM configuration parameters).

  • Page 28: Warranty Disclaimers

    ONE YEAR WARRANTY REAR VIEW SAFETY, INC. WARRANTS THIS PRODUCT AGAINST MATERIAL DEFECTS FOR A PERIOD OF ONE YEAR FROM DATE OF PURCHASE. WE RESERVE THE RIGHT TO REPAIR OR REPLACE ANY SUCH DEFECTIVE UNIT AT OUR SOLE DISCRETION. REAR VIEW SAFETY, INC. IS NOT RESPONSIBLE FOR A DEFECT IN THE SYSTEM AS A RESULT OF MISUSE, IMPROPER INSTALLATION, DAMAGE OR MISHANDLING OF THE ELECTRONIC COMPONENTS.

  • Page 29: Disclaimer

    DISCLAIMER REAR VIEW SAFETY AND/OR ITS AFFILIATES DOES NOT GUARANTEE OR PROMISE THAT THE USER OF OUR SYSTEMS WILL NOT BE IN/PART OF AN ACCIDENT OR OTHERWISE NOT COLLIDE WITH AN OBJECT AND/OR PERSON. OUR SYSTEMS ARE NOT A SUBSTITUTE FOR CAREFUL AND CAUTIOUS DRIVING OR FOR THE CONSISTENT ADHERENCE TO ALL APPLICABLE TRAFFIC LAWS AND MOTOR VEHICLE SAFETY REGULATIONS.
  • Page 30 Engineered For Vehicle Safety™ If you have questions about this product, please contact us at: 800.764.1028 RVS.Sales@safefleet.net www.rearviewsafety.com New York 1797 Atlantic Ave Brooklyn, NY 11233 Indiana 319 Roske Dr. Elkhart, Indiana 46516 Canada 68 Trafalgar Square Thornhill, ON, L4J 7M5, Canada...
