9.1 TOOLS AND MATERIALS NEEDED
•
Screwdriver
•
Drill
•
Multimeter
9.2 INSTALLATION AND WIRING
STEP 1: CHOOSE AN INSTALLATION LOCATION
The following things should be considered when choosing an installation location for GP-RVC-30-MPPT controllers.
•
The controller should be installed indoors where it is safe from water or condensation
•
Avoid installing the controller in direct sunlight
•
Mount the controller to a non-flammable surface
•
For best thermal performance mount the controller vertically with power terminals facing downward, this will
encourage natural convection through the heatsink and keep it cooler
•

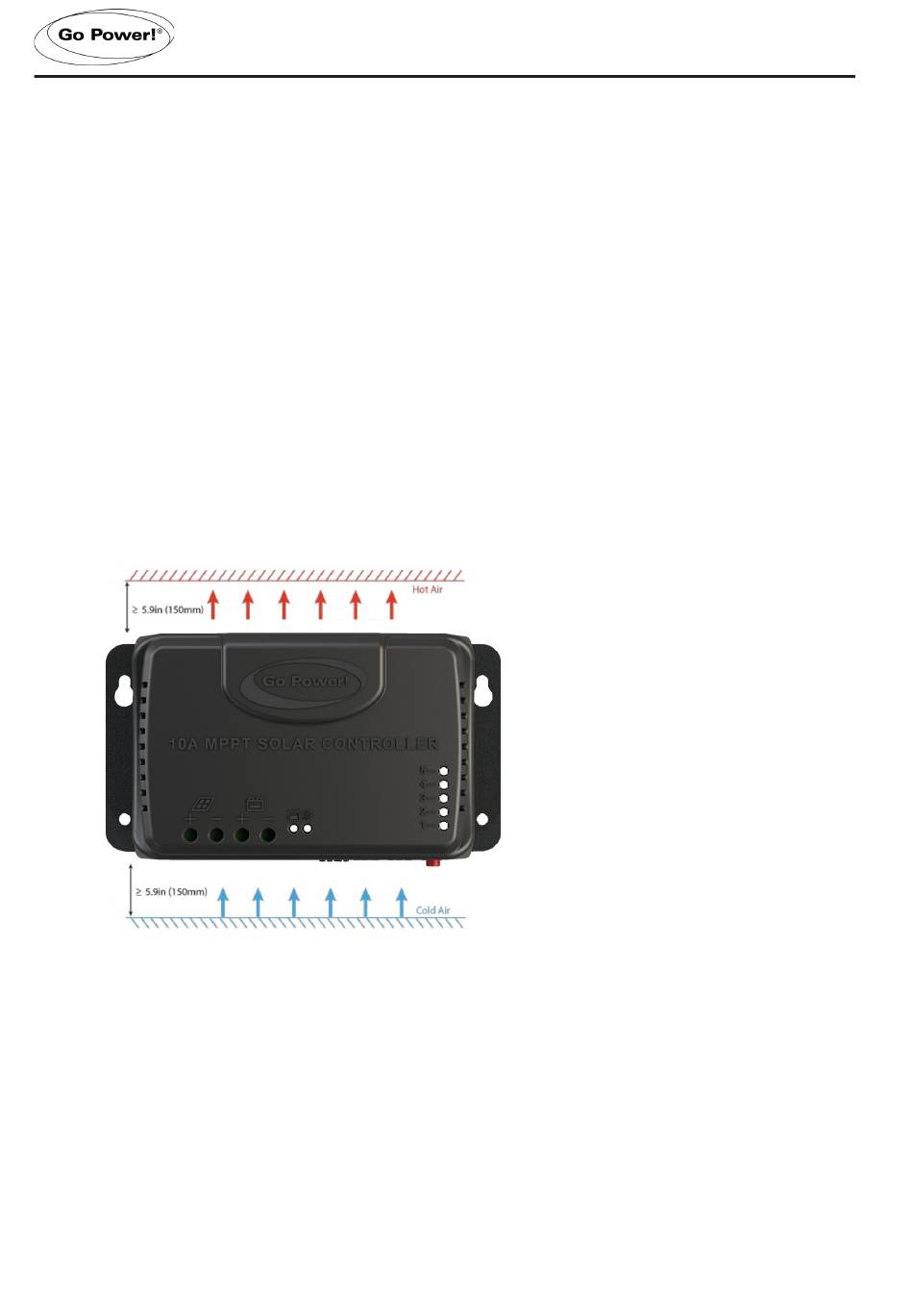

There should be at least 6 inches of air gap above and below the controller for the natural convection to occur
effectively
•
Locate the controller as close to the battery as possible (but not directly above the battery to prevent potential
damage due to gassing of the battery), this will keep the battery wires short and prevent voltage drop
•
Ensure any enclosed space where the controller is mounted is well ventilated, this will prevent heat buildup that
could lead to derating of the controller
STEP 2: MARK THE MOUNTING POSITION ACCORDING TO THE MOUNTING DIMENSIONS OF THE CONTROLLER
First, place the controller at a proper position and use a marking pen to mark the mounting points. Drill 4 mounting holes of
the appropriate size at the 4 marks. Fix screws into the upper two mounting holes.
STEP 3: FASTEN THE CONTROLLER
Align fixed holes of the controller with the two pre-fixed screws and hang the controller up. Then fix the lower two screws.
STEP 4: WIRING
Wiring and installation must comply with national and local electrical code requirements.
