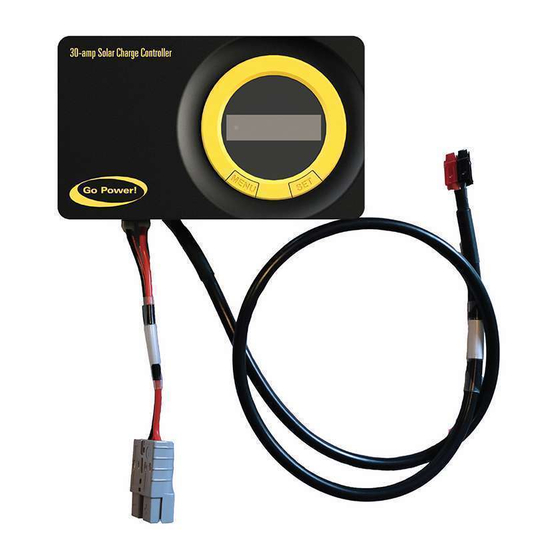

30-amp single bank solar controller
Hide thumbs
Also See for DURALITE GP-DURALITE-100:
- Quick start manual (2 pages) ,
- User manual (20 pages)
Subscribe to Our Youtube Channel
Related Manuals for Go Power DURALITE GP-DURALITE-100
Summary of Contents for Go Power DURALITE GP-DURALITE-100

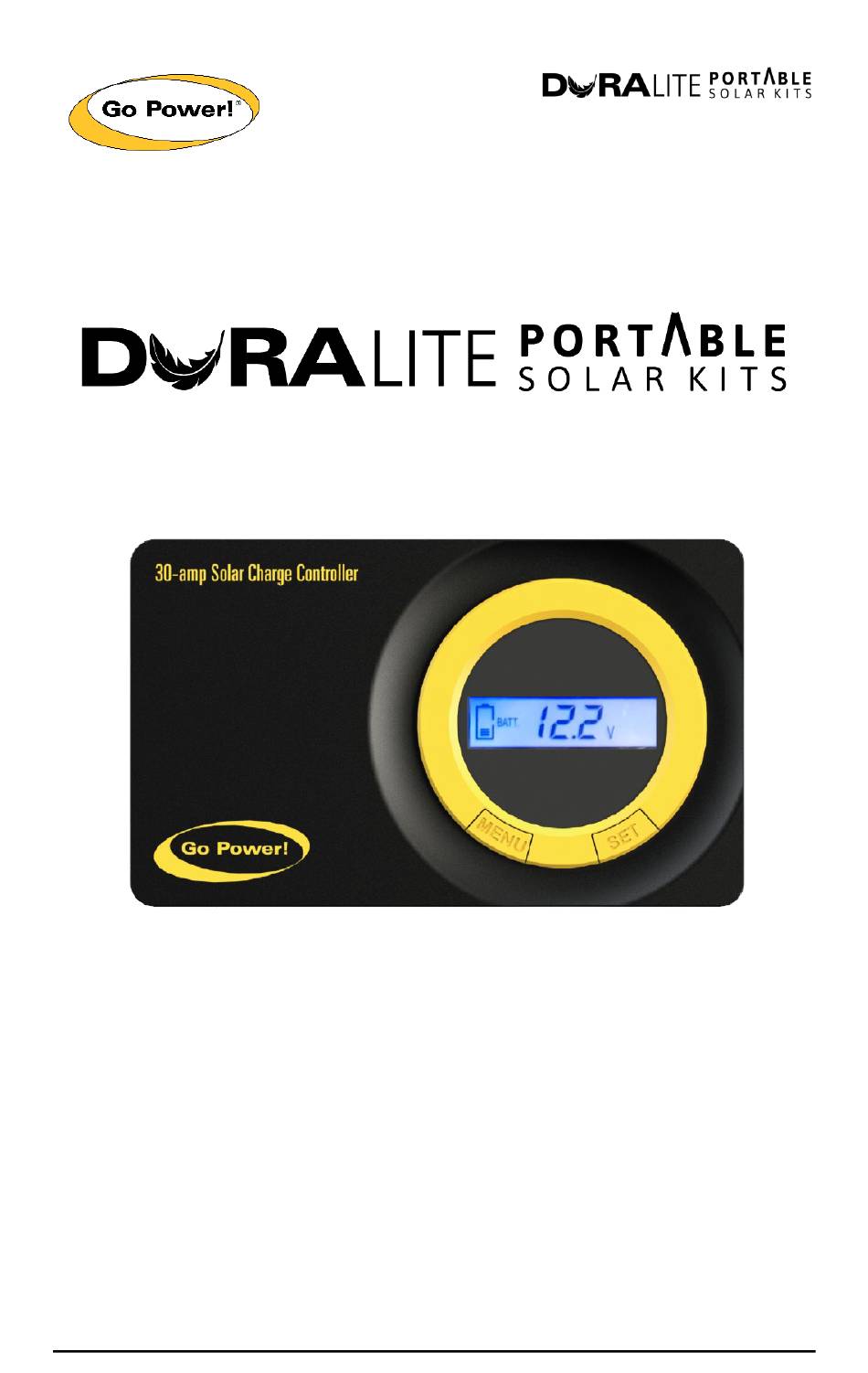

- Page 1 Solar Controller User Manual ________________________________________________________________________ User Manual 30-amp Single Bank Solar Controller © 2020 Go Power!
-
Page 2: Table Of Contents
Errors & Troubleshooting Display Symbols Frequently Asked Questions (FAQs) Troubleshooting Problems Problems with the Display Problems with Voltage Problems with Current 10.0 Limited Warranty 10.1 Repair and Return Information 11.0 Installation Template Error! Bookmark not defined. © 2020 Go Power! -
Page 3: Solar Controller Overview
This solar controller is suitable for use with lead acid batteries (vented, GEL, or AGM* type) as well as some lithium iron phosphate (LiFePO ) batteries that are supplied with a Battery Management System (BMS). *Use the Sealed battery profile for AGM Regulatory Information © 2020 Go Power! -
Page 4: Specifications
Read this manual in its entirety before using the DuraLite kit for • the first time. DO NOT GET WET. Bring in the DuraLite kit when it rains. • Use only with approved DuraLite connections and harnessing. • © 2020 Go Power! - Page 5 1.25 (or by a value from NEC 690.7 provided voltage ratings in Table 690.7 A). The resulting voltage is not to exceed 35V. If your solar system exceeds this value, contact your dealer for a suitable controller alternative. © 2020 Go Power!
-
Page 6: Choosing A Battery
Battery 1 terminals. WARNING: When the photovoltaic (solar) array is exposed to light, it supplies a dc voltage to this equipment. Operating Instructions 1) Automatic cycle interface Display: PV voltage, current, power, Battery voltage and Battery temperature © 2020 Go Power! - Page 7 Operation: Step1: Press the “SET” button and hold 5s under the battery voltage interface. Step2: Press the “MENU” button when the battery type interface is flashing. Step3: Press the “SET” button to confirm the battery type. © 2020 Go Power!
-
Page 8: Battery Charging Profile Chart
Charging Limit Voltage 15.0V 15.0V 15.0V 14.4/28.8V Over Voltage Reconnect 15.0V 15.0V 15.0V 14.4/28.8V Voltage Equalize Charging 14.6V —— 14.8V —— Voltage Boost Charging Voltage 14.4V 14.2V 14.6V 14.4/28.8V Float Charging Voltage 13.8V 13.8V 13.8V 14.0/28.0V © 2020 Go Power! -
Page 9: Errors & Troubleshooting
Errors & Troubleshooting No Power to LCD Screen Solution 1 Check the connection between the DuraLite Kit and the controller, and the controller and the battery. The controller requires a minimum voltage of 8v to run. © 2020 Go Power! -
Page 10: Display Symbols
Before a problem is suspected with the system, read this section. There are numerous events that may appear as problems but are in fact perfectly normal. Please visit https://gpelectric.com/support/ for the most up-to-date FAQs and troubleshooting videos. It seems like my flooded batteries are losing water over time. © 2020 Go Power! - Page 11 In addition to resistance in the wires, batteries also have an internal resistance due to chemical properties. The controller cannot distinguish between these two sources of resistance. It will compensate up to 250mV in the displayed value. © 2020 Go Power!
-
Page 12: Troubleshooting Problems
If the battery voltage is lower than 6 volts the controller will not function. For the solar array, repeat steps 1 and 2 substituting all battery terminals with solar array terminals. Remedy: © 2020 Go Power! -
Page 13: Problems With Voltage
Problems with Current Current Reading: 0 A Time of Day: Daytime, clear sunny skies Possible Cause: Current is being limited below 1 Amp as per normal operation or poor connection between solar array and controller. How to tell: © 2020 Go Power! - Page 14 Avoid any shading no matter how small. An object as small as a broomstick held across the solar module may cause the power output to be significantly reduced. Overcast days may also cut the power output of the module. © 2020 Go Power!
- Page 15 If the open circuit voltage of a non-connected 12 volt module is lower than the manufacturer’s specifications, the module may be faulty. Check for blown diodes in the solar module junction box, which may be shorting the power output of module. © 2020 Go Power!
-
Page 16: Limited Warranty
10.0 Limited Warranty Go Power! warrants the SOLAR CONTROLLER for a period of five (5) years from the date of shipment from its factory. This warranty is valid against defects in materials and workmanship for the five (5) year warranty period. It is not valid... - Page 17 SOLAR CONTROLLER _______________________________________________________________________ © 2019 GO POWER! ® 201 – 710 Redbrick St, Victoria, British Columbia Canada, V8T 5J3 MOBI_MAN_SOLAR CONTROLLER _RevF gpelectric.com © 2020 Go Power!
