Safety – Operation – Maintenance
Keep this document in a safe place
Read and understand this manual before operating your air tool

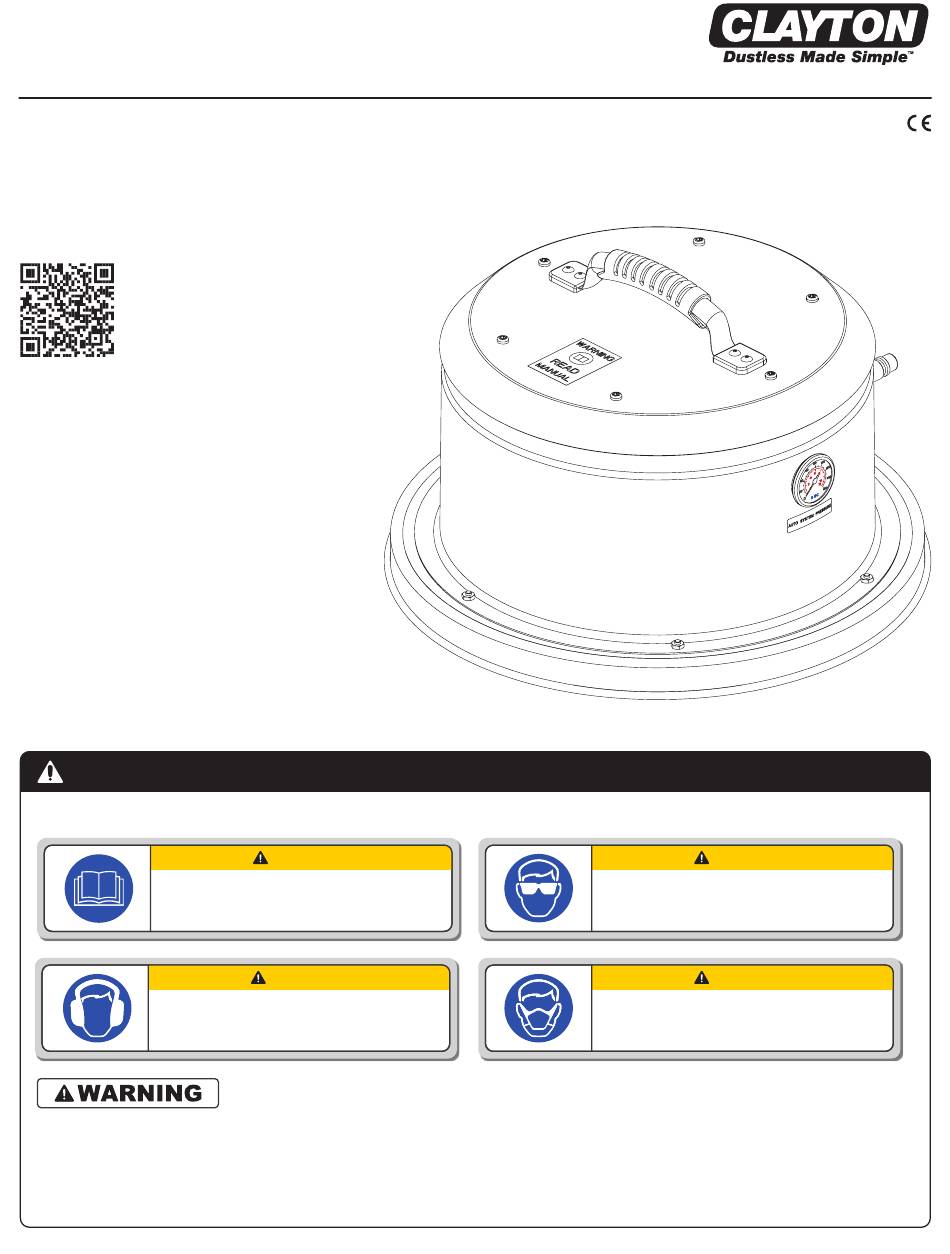

WartHog WGX Power Head
Air Powered HEPA Industrial Vacuum
Models: WGX-107G-4, WGX-115G-4, WGX-205G-4, WGX-215G-4
• Designed for toxic dust cleanup and housekeeping
• Dry Recovery Only
Scan this QR code for
online instructions and
documentation, or visit
www.ClaytonHowTo.com
WARNING
SAFETY LEGEND
Read and understand operator's manual before
using this equipment.
Hearing protection is recommended when
operating this equipment.
• A HEPA Filter must be installed in this vacuum at all times.
• If this vacuum is used to collect hazardous material, appropriate personal protective equipment may be required.
• Any alteration to this equipment by a third party will nullify its warranty.
WGX-4
WARNING
WARNING
WGX-4_cover
WARNING
Eye protection is required when operating this
equipment.
WARNING
Respiratory protection is recommended
operating this equipment.
August 03, 2021
Advertisement
Table of Contents
Related Manuals for Clayton WartHog WGX Series
Summary of Contents for Clayton WartHog WGX Series
- Page 1 Safety – Operation – Maintenance Keep this document in a safe place Read and understand this manual before operating your air tool WartHog WGX Power Head Air Powered HEPA Industrial Vacuum Models: WGX-107G-4, WGX-115G-4, WGX-205G-4, WGX-215G-4 • Designed for toxic dust cleanup and housekeeping •...
-
Page 2: Table Of Contents
HEPA Filter Change ......................9 Illustrated Parts Breakdown....................10 Limited Lifetime Warranty Terms And Conditions ..............14 EC Declaration of Conformity ....................15 Repair or Warranty Contact Clayton Associates, Inc. • 1650 Oak Street • Lakewood, New Jersey 08701 • P.+1-732-363-2100 F.+1-732-364-6084 WGX-4 www.DustlessMadeSimple.com • Sales@JClayton.com... -
Page 3: Applications & Environments
Clayton vacuum tanks ship in their own box and include bags, filters, and other components. These instructions assume you have both a power head and an appropriate Clayton vacuum tank. Refer to the instruction manual included with the vacuum tank for additional information. -
Page 4: Getting Started
• Remove the HEPA cable lock from the box and set aside. • Remove the HEPA filter from the box and remove from plastic bag. continued on next page Repair or Warranty Contact Clayton Associates, Inc. • 1650 Oak Street • Lakewood, New Jersey 08701 • P.+1-732-363-2100 F.+1-732-364-6084 WGX-4 www.DustlessMadeSimple.com •... -
Page 5: Compressed Air Fittings
• Insert the metal sleeve of the vacuum hose into the inlet port on the vacuum tank. 2. Activate the vacuum. • Rotate the Compressed Air Control valve to the ON position. Repair or Warranty Contact Clayton Associates, Inc. • 1650 Oak Street • Lakewood, New Jersey 08701 • P.+1-732-363-2100 F.+1-732-364-6084 WGX-4 www.DustlessMadeSimple.com •... -
Page 6: Bag Filter Change
• Rotate the power head so that the Compressed Air Control valve on the power head is aligned with the inlet port on the vacuum tank. • Latch the power head to the tank. Repair or Warranty Contact Clayton Associates, Inc. • 1650 Oak Street • Lakewood, New Jersey 08701 • P.+1-732-363-2100 F.+1-732-364-6084 WGX-4 www.DustlessMadeSimple.com •... -
Page 7: Safe Filter Change
SAFE FILTER CHANGE Principle of Operation Safe Filter Change (SFC) uses a second Clayton HEPA vacuum and a Safe Filter Change Hose to create a downdraft within the primary vacuum while changing the bag filter. If this vacuum is used to collect hazardous material, appropriate personal protective equipment may be required. -
Page 8: Pre-Filter Change
• Rotate the power head so that the Compressed Air Control valve on the power head is aligned with the inlet port on the vacuum tank. • Latch the power head to the tank. Repair or Warranty Contact Clayton Associates, Inc. • 1650 Oak Street • Lakewood, New Jersey 08701 • P.+1-732-363-2100 F.+1-732-364-6084 WGX-4 www.DustlessMadeSimple.com •... -
Page 9: Hepa Filter Change
• Attach the new HEPA timer card with a zip tie (included) to the top handle of the vacuum. • Follow the directions on the timer card to activate. Repair or Warranty Contact Clayton Associates, Inc. • 1650 Oak Street • Lakewood, New Jersey 08701 • P.+1-732-363-2100 F.+1-732-364-6084 WGX-4 www.DustlessMadeSimple.com •... -
Page 10: Illustrated Parts Breakdown
Screw 10-32 X 3/8in SS TORX WE133203-RFS-Z Washer .203ID X .500OD .047H Round Stainless Steel WGX-4_004 Repair or Warranty Contact Clayton Associates, Inc. • 1650 Oak Street • Lakewood, New Jersey 08701 • P.+1-732-363-2100 F.+1-732-364-6084 WGX-4 www.DustlessMadeSimple.com • Sales@JClayton.com Page 10... - Page 11 FTG Reducer 1/2 MPC To 1/4 PC 927-08T-08 FTG Tee 1/2 PC To 1/2 MPT WGX-4_005 Repair or Warranty Contact Clayton Associates, Inc. • 1650 Oak Street • Lakewood, New Jersey 08701 • P.+1-732-363-2100 F.+1-732-364-6084 WGX-4 www.DustlessMadeSimple.com • Sales@JClayton.com Page 11...
- Page 12 Enclosure Foam 1 Sound Control 911-803-7 Enclosure Foam 2 Sound Control 911-803-8 Enclosure Foam 3 Sound Control WGX-4_006 Repair or Warranty Contact Clayton Associates, Inc. • 1650 Oak Street • Lakewood, New Jersey 08701 • P.+1-732-363-2100 F.+1-732-364-6084 WGX-4 www.DustlessMadeSimple.com • Sales@JClayton.com Page 12...
- Page 13 Screw 1/4-20 X 3/4in Button Head Torx SS WE133203-RFS-Z Washer .203ID X .500OD .047H Round Stainless Steel WGX-4_007 Repair or Warranty Contact Clayton Associates, Inc. • 1650 Oak Street • Lakewood, New Jersey 08701 • P.+1-732-363-2100 F.+1-732-364-6084 WGX-4 www.DustlessMadeSimple.com • Sales@JClayton.com...
-
Page 14: Limited Lifetime Warranty Terms And Conditions
Repair within the Continental US During the first 90 days of the warranty period, Clayton will provide parts and labor to the customer’s site at no charge or pay freight costs associated with returning the products for repair to a Clayton selected service location and repair the product at no charge. Clayton personnel will determine the best way to repair the product. -
Page 15: Ec Declaration Of Conformity
EC DECLARATION OF CONFORMITY Clayton Associates, Inc. of 1650 Oak Street, Lakewood New Jersey 08701 U.S.A. declare on our own responsibility that the following equipment: Industrial HEPA Filtered, Electrically Powered Vacuum Cleaners and Accessories for Dry Recovery • Vacuum Models (where XXXX is the Tank Model): WGX‑XXXX‑0, WGP‑XXXX‑0, WTX‑XXXX‑0, WTP‑XXXX‑0... - Page 16 EC DECLARATION OF CONFORMITY Clayton Associates, Inc. of 1650 Oak Street, Lakewood New Jersey 08701 U.S.A. declare on our own responsibility that the following equipment: Industrial HEPA Filtered, Electrically Powered Vacuum Cleaners • Vacuum Models (where XXXX is the Tank Model): WGX‑XXXX‑0, WGP‑XXXX‑0, WTX‑XXXX‑0, WTP‑XXXX‑0...
- Page 17 THIS PAGE IS INTENTIONALLY BLANK...
- Page 18 Clayton products are proudly made in the USA Repair or Warranty Contact Clayton Associates, Inc. • 1650 Oak Street • Lakewood, New Jersey 08701 • P.+1-732-363-2100 F.+1-732-364-6084 www.DustlessMadeSimple.com • Sales@JClayton.com...
