Safety – Operation – Maintenance
Keep this document in a safe place
Read and understand this manual before operating your vacuum

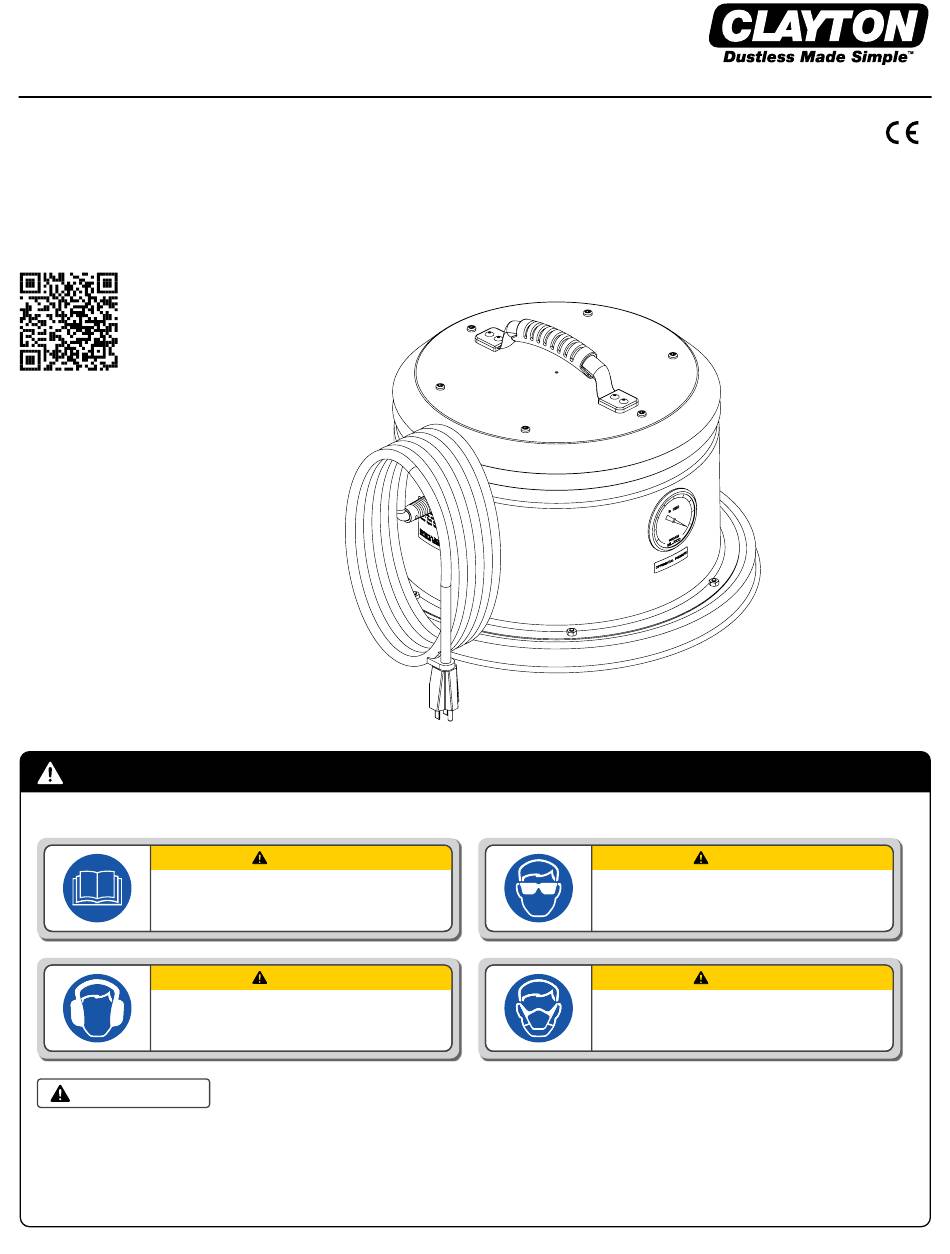

Warthog WTX
Industrial Vacuum 120V / 220V
Models with Prefix: WTX-115T-0, WTX-205T-0, WTX-215T-0
• Designed for toxic dust cleanup and housekeeping
• Dry Recovery Only
Scan this QR code for
online instructions and
documentation, or visit
www.ClaytonHowTo.com
WARNING
SAFETY LEGEND
Read and understand operator's manual before
using this equipment.
Hearing protection is recommended when
operating this equipment.
WARNING
• A HEPA Filter must be installed in this vacuum at all times
• If this vacuum is used to collect hazardous material, appropriate personal protective equipment may be required
• Any alteration to this equipment by a third party will nullify its warranty
WARNING
WARNING
WARNING
Eye protection is required when operating
this equipment.
WARNING
Respiratory protection is recommended when
operating this equipment.
October 2019
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Clayton Warthog WTX Series
Summary of Contents for Clayton Warthog WTX Series
- Page 1 Safety – Operation – Maintenance Keep this document in a safe place Read and understand this manual before operating your vacuum Warthog WTX Industrial Vacuum 120V / 220V Models with Prefix: WTX-115T-0, WTX-205T-0, WTX-215T-0 • Designed for toxic dust cleanup and housekeeping •...
-
Page 2: Important Safety Instructions
Figure 1: Earthed/Grounded Outlet and Plug configuration as the plug. No adaptor should be used with this appliance. • • • Repair or Warranty Contact Clayton Associates, Inc. 1650 Oak Street Lakewood, New Jersey 08701 P.+1-732-363-2100 F.+1-732-364-6084 • www.DustlessMadeSimple.com Sales@JClayton.com... -
Page 3: Table Of Contents
Do not use this equipment for cleaning or extracting live sparks or burning embers Do not use this equipment for use in combustible dust or gas atmospheres • • • Repair or Warranty Contact Clayton Associates, Inc. 1650 Oak Street Lakewood, New Jersey 08701 P.+1-732-363-2100 F.+1-732-364-6084 • www.DustlessMadeSimple.com Sales@JClayton.com... -
Page 4: What's Included
WHAT’S INCLUDED Clayton Warthog Power Heads ship with the following items: • Warthog WTP Power Head • HEPA 12 Month Timer Card Clayton Vacuum Tanks ship separately and include Bags, Filters, and other components. These instructions asume you have both a Power Head and one of... -
Page 5: Differential Pressure Gauge
HEPA Filter, and/or Prefilter. Clayton recommends that the bag filter be changed when it is approximately 75% full by volume. Keep in mind that If the debris is something like fine powder it will create more restriction and therefore a greater differential pressure than something like rivet stems. -
Page 6: Before Each Use
• Rotate the Power Head so that the switch on the Power Head is in line with the inlet port on the vacuum tank • Latch the Power Head to the tank • • • Repair or Warranty Contact Clayton Associates, Inc. 1650 Oak Street Lakewood, New Jersey 08701 P.+1-732-363-2100 F.+1-732-364-6084 • www.DustlessMadeSimple.com Sales@JClayton.com... -
Page 7: Safe Filter Change
SAFE FILTER CHANGE Principle of Operation Safe Filter Change uses a second Clayton HEPA Vacuum and Safe Filter Change Hose to create a downdraft in the Primary Vacuum while changing the bag filter. If this vacuum is used to collect hazardous material, appropriate personal protective equipment may be required. -
Page 8: Pre-Filter Change
• Rotate the Power Head so that the switch on the Power Head is in line with the inlet port on the vacuum tank • Latch the Power Head to the tank • • • Repair or Warranty Contact Clayton Associates, Inc. 1650 Oak Street Lakewood, New Jersey 08701 P.+1-732-363-2100 F.+1-732-364-6084 • www.DustlessMadeSimple.com Sales@JClayton.com... -
Page 9: Hepa Filter Change
• Carefully sit the Power Head on the floor - avoid damaging the HEPA filter 3. Unbox a new HEPA Filter • Remove the Clayton HEPA Timer Card from the box and set aside • Remove the HEPA Cable Lock from the box and set aside •... -
Page 10: Illustrated Parts Breakdown
600-WF-1364F WASHER FIBER 13/64 ID X 3/8OD WIRING HARNESS REPRESENTATIVE ACTUAL HARNESS MAY DIFFER IN APPEARANCE • • • Repair or Warranty Contact Clayton Associates, Inc. 1650 Oak Street Lakewood, New Jersey 08701 P.+1-732-363-2100 F.+1-732-364-6084 • www.DustlessMadeSimple.com Sales@JClayton.com Page 10... - Page 11 ENCLOSURE FOAM 1 SOUND CONTROL 911-803-7 ENCLOSURE FOAM 2 SOUND CONTROL 911-803-8 ENCLOSURE FOAM 3 SOUND CONTROL • • • Repair or Warranty Contact Clayton Associates, Inc. 1650 Oak Street Lakewood, New Jersey 08701 P.+1-732-363-2100 F.+1-732-364-6084 • www.DustlessMadeSimple.com Sales@JClayton.com Page 11...
- Page 12 WASHER .203ID X .500OD .047H ROUND STAINLESS STEEL WE481831-RZSZ SHIM .750 ID X 1.125 OD X .048 ROUND STAINLESS • • • Repair or Warranty Contact Clayton Associates, Inc. 1650 Oak Street Lakewood, New Jersey 08701 P.+1-732-363-2100 F.+1-732-364-6084 • www.DustlessMadeSimple.com Sales@JClayton.com...
-
Page 13: Limited Lifetime Warranty Terms And Conditions
Repair within the Continental US During the first 90 days of the warranty period, Clayton will provide parts and labor to the customer’s site at no charge or pay freight costs associated with returning the products for repair to a Clayton selected service location and repair the product at no charge. -
Page 14: Declaration Of Conformity
EC DECLARATION OF CONFORMITY Clayton Associates, Inc. of 1650 Oak Street, Lakewood New Jersey 08701 U.S.A. declare on our own responsibility that the following equipment: Industrial HEPA Filtered, Electrically Powered Vacuum Cleaners and Accessories for Dry Recovery • Vacuum Models (where XXXX is the Tank Model):... - Page 15 EC DECLARATION OF CONFORMITY Clayton Associates, Inc. of 1650 Oak Street, Lakewood New Jersey 08701 U.S.A. declare on our own responsibility that the following equipment: Industrial HEPA Filtered, Electrically Powered Vacuum Cleaners • Vacuum Models (where XXXX is the Tank Model):...
