Safety – Operation – Maintenance
Keep this document in a safe place
Read and understand this manual before operating your air tool

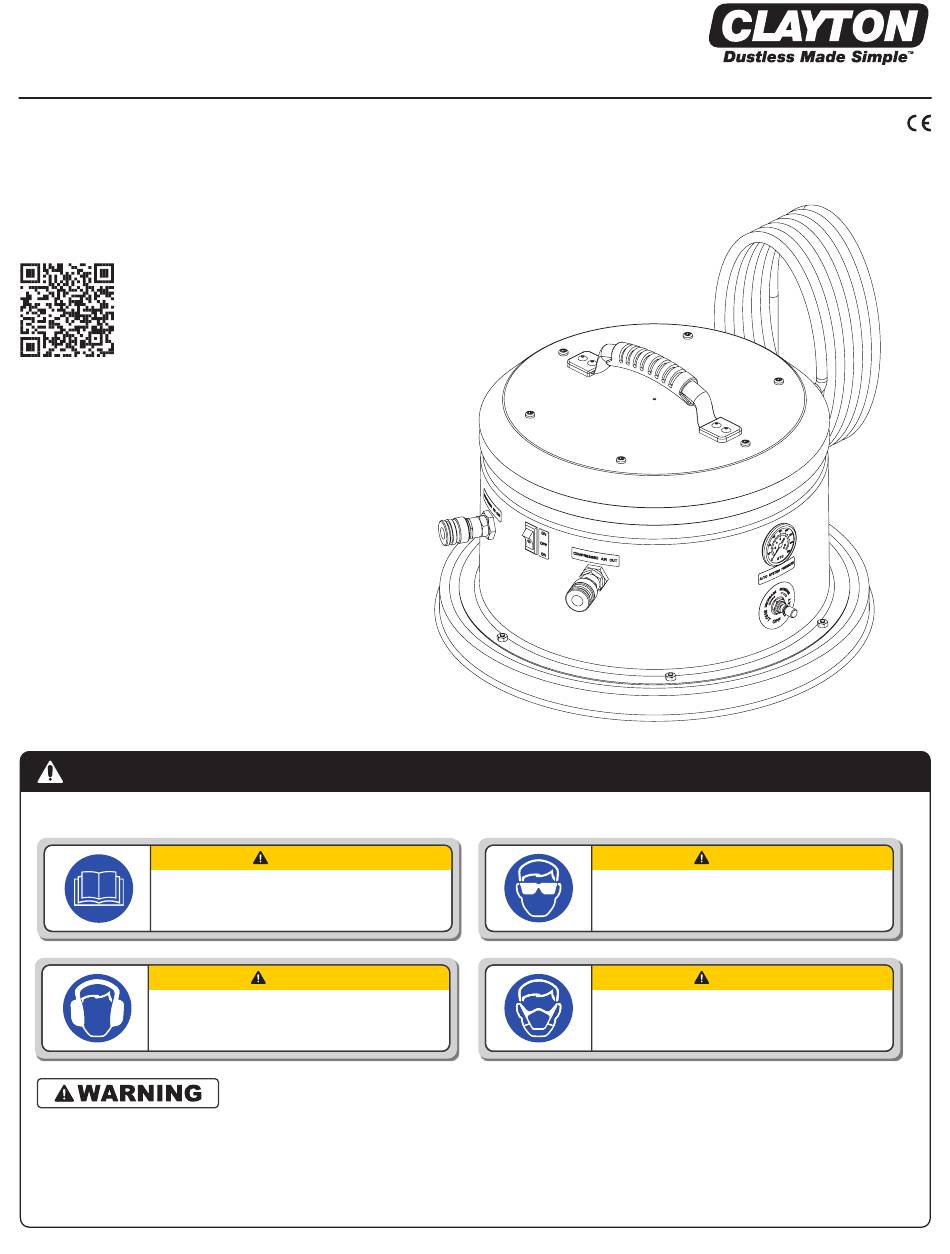

WartHog WGP Power Head
Electric Industrial HEPA Vacuum with Pneumatic Tool Sync
Models: WGP-107G-0, WGP-115G-0, WGP-205G-0, WGP-215G-0
• Designed for general cleanup, housekeeping, and vacuum sanding
• Dry Recovery Only
Scan this QR code for
online instructions and
documentation, or visit
www.ClaytonHowTo.com
WARNING
SAFETY LEGEND
Read and understand operator's manual before
using this equipment.
Hearing protection is recommended when
operating this equipment.
• A HEPA Filter must be installed in this vacuum at all times.
• If this vacuum is used to collect hazardous material, appropriate personal protective equipment may be required.
• Any alteration to this equipment by a third party will nullify its warranty.
WGP-0
WARNING
WARNING
WGP-0_cover
WARNING
Eye protection is required when operating this
equipment.
WARNING
Respiratory protection is recommended
operating this equipment.
