Cypress CY8CPROTO-062-4343W Quick Start Manual

Rsoc 6 wi-fi bt prototyping kit

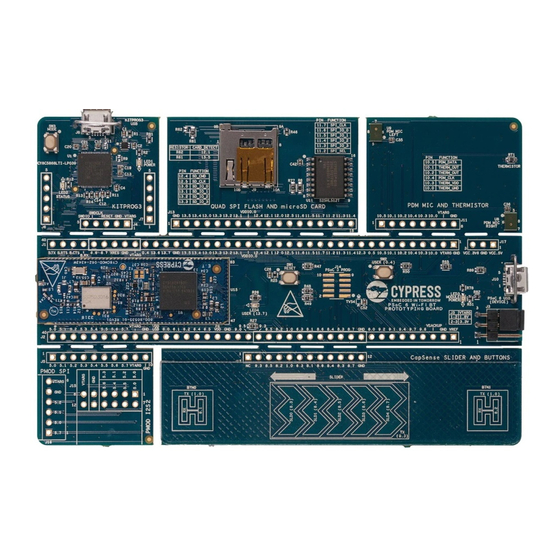

CY8CPROTO-062-4343W PSoC

Before starting, ensure you have the following.

• PC with USB port and Wi-Fi connectivity

• UART terminal software such as Tera Term or Minicom

• Non-enterprise Wi-Fi network with internet access or a mobile hotspot

1) Visit the kit website to download and install the required software.

5) Open the UART terminal software and connect to the KitProg3

USB-UART COM port with the settings – Baud rate: 115200,

Data: 8 bit, Parity: None, Stop bit: 1 bit, Flow control: None.

7) Follow the instructions displayed on the UART terminal to use the

pre-programmed code example.

Refer to the Kit Guide available at the kit website for details.

referenced herein are the properties of their respective owners. 002-25010 Rev.*A

Arrow.com.

Downloaded from

6 Wi-Fi BT PROTOTYPING KIT QUICK START GUIDE

All manuals and user guides at all-guides.com

KitProg3 USB connector (J8)

Reset button (SW1)

Power selection jumper (J3)

www.cypress.com/CY8CPROTO-062-4343W
