Argos Amersham 724/7196 Assembly Instructions Manual

Argos Amersham 724/7196 Assembly Instructions Manual

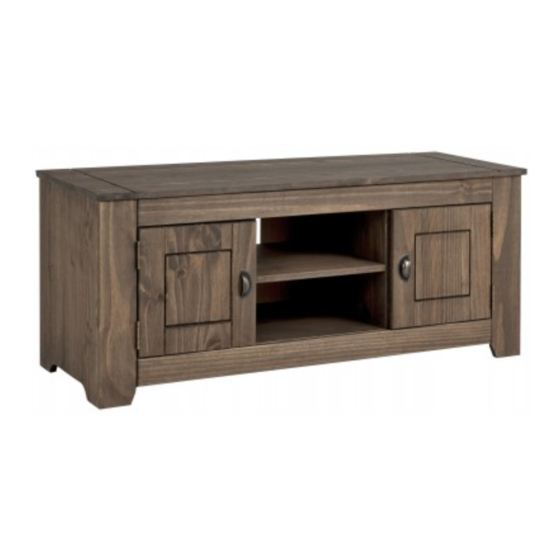

Solid pine large tv unit

Advertisement

Quick Links

Amersham - Solid Pine Large TV Unit
Assembly Instructions -
Please keep for future reference
724/7196
Dimensions
Width - 120cm
Depth - 44cm
Height - 50cm
Important –
Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the
Customer Helpline: 03456 400 800
Issue 2 - 08/08/18

Advertisement

loading
Need help?

Need help?

Do you have a question about the Amersham 724/7196 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Argos Amersham 724/7196

  • Page 1 Amersham - Solid Pine Large TV Unit Assembly Instructions - Please keep for future reference 724/7196 Dimensions Width - 120cm Depth - 44cm Height - 50cm Important – Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400 800 Issue 2 - 08/08/18...
  • Page 2 Safety and Care Advice Important – Please read these instructions fully before starting assembly Check you have all the This product has been produced We do not components and tools listed on from natural timber; you may recommend the pages 2 and 3. notice some variation in the grain use of power and colour of different component...
  • Page 3 Components - Panels Please check you have all the panels listed below Right side panel (48 x 42cm) 1 Top panel (120 x 44cm) underside Left side panel (48 x 42cm) 2 Base panel (114.4 x 40.4cm) Middle wall panel x 2 3 Back panel (116,2 x 40cm) (37.5 x 40.4cm)
  • Page 4 Components - Fittings If you have damaged or missing components, call the Customer Helpline: 03456 400 800 Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.
  • Page 5 Assembly Instructions Step 1 Fixing right front frame to the right side panel (Two people required for an easier assembly). Insert right side panel into right front frame through joints. Yes! Note: Before fixing blocks into place it is important to Attention: correct ensure that the slot and position of panel.
  • Page 6 Assembly Instructions Step 3 Fitting Metal dowels. Screw metal dowels into right side panel left side panel and top panel Note: Insert metal dowels as far as shown. Do not over tighten. Step 4 Insert dowels into the indicated parts.
  • Page 7 Assembly Instructions Step 5 Fit shelf into the holes on middle wall panels Important! Shelf must be positioned as shown in the picture. Step 6 Fixing base panel. With help, fit middle wall panels to the base panel then fix it using screws Do not over tighten screws.
  • Page 8 Assembly Instructions Step 7 Insert front frames into the holes on left side panel Step 8 Fixing base panel. With help, fit base panel to the left side panel. Insert 2 locking nuts into base panel where shown. Use a screwdriver to turn locking nuts clockwise to lock.
  • Page 9 Assembly Instructions Step 9 Fixing right side panel. With help, place right side properly panel ensuring dowels and front frames are all fit into their holes at the same time. Insert 2 locking nuts into base panel where shown. Use a screwdriver to turn locking nuts clockwise to lock.
  • Page 10 Assembly Instructions Step 11 Fixing top panel. Important: With help, carefully stand the product upright. With help, f it top panel to the cabinet. Insert locking nuts into side p anel and middle wall panels where shown. Use a screwdriver to turn locking nuts clockwise to lock.
  • Page 11 Assembly Instructions Step 13 Hanging doors. View from behind With help, centralise the doors in the opening of the cabinet using the door spacer to ensure correct spacing, as shown. From inside the cabinet fix the hinges using screws shown. Note: To ensure the alignment of the doors is...
  • Page 12 Assembly Instructions Step 15 Fitting door lock. Screw clip in place using screws Ensure that the 2 small wheels are flush with the edge of the base as shown in the diagram. Insert plug into clip , ensuring they are leveled as shown in the diagram.
  • Page 13 Assembly Instructions Step 17 Fixing back panel. Important: Cabinet MUST ‘square’ when back panels are attached. Attach back panel using nails Assembly is complete. If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400 800...
  • Page 14 Argos store Key exclusions applying to both the Manufacturer’s Guarantee and Furniture Care include where the fault is due to misuse, abuse, deliberate damage, wear and tear, neglect, use in contravention...
