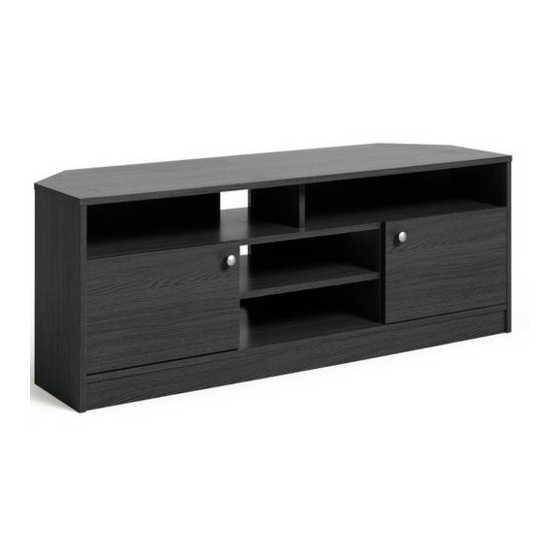

Argos 737/6672 Care & Instruction Manual

Argos 737/6672 Care & Instruction Manual

Corners large tv unit

Advertisement

Quick Links

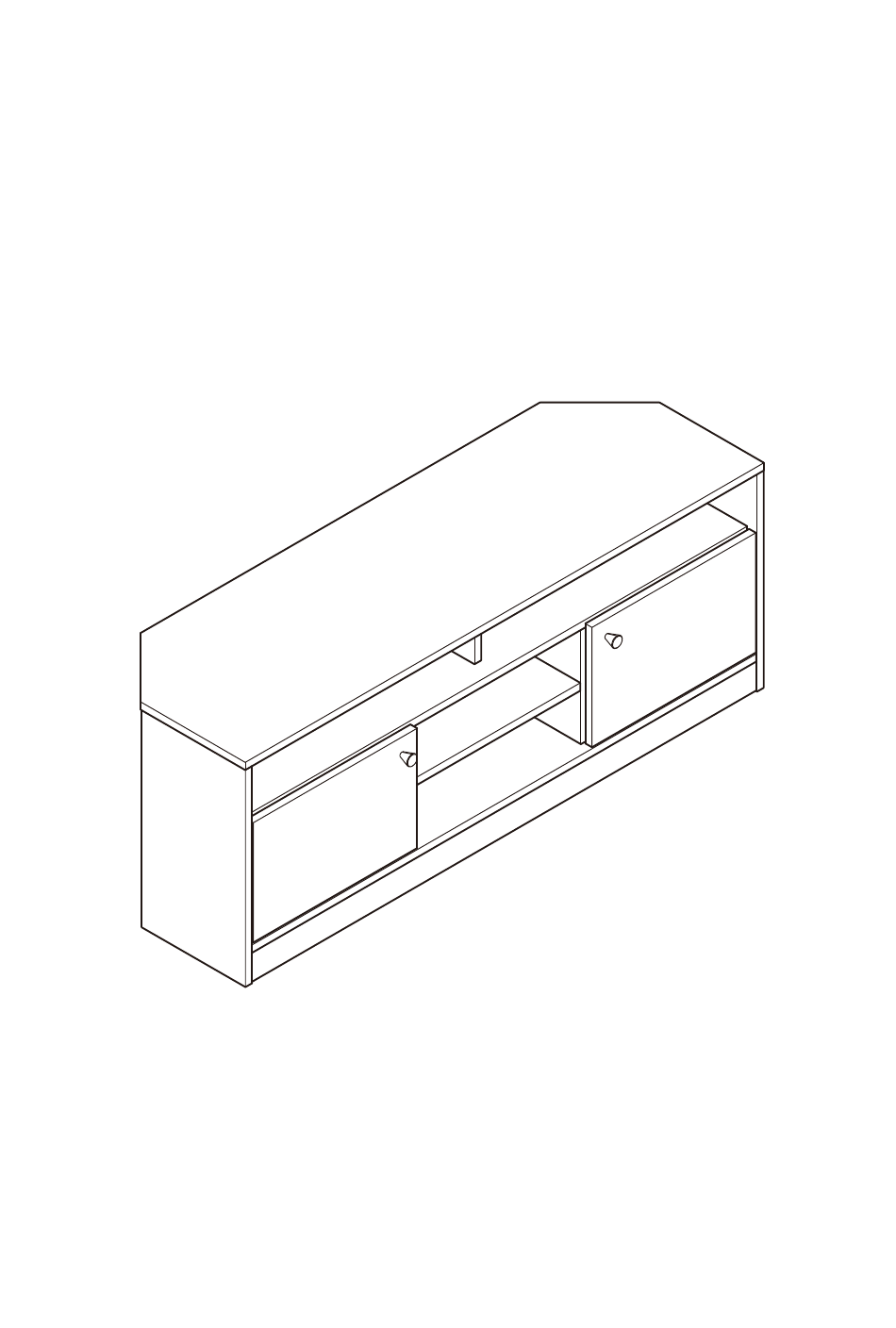

Corners Large TV Unit
737/6672
724/3932
724/8841
-
Care & Instruction Manual
Please read and retain these instructions for future reference

Advertisement

loading
Need help?

Need help?

Do you have a question about the 737/6672 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Argos 737/6672

  • Page 1 Corners Large TV Unit 737/6672 724/3932 724/8841 Care & Instruction Manual Please read and retain these instructions for future reference...
  • Page 2: Handy Hints

    Safety and Care Advice Important – Please read these instructions fully before starting assembly • Check you have all the • During assembly do not stand • To reduce components and tools listed on or put weight on the product, the likelihood of the following pages.
  • Page 3 Components - Panels If you have damaged or missing components, call the Customer Helpline: Argos = 0345 6400800 Please check you have all the panels listed below Middle support (19.8 x 11.6cm) Top panel (120 x 38cm) Shelf panel (40 x 33.9cm)
  • Page 4: Tools Required

    Components - Fittings Please check you have all the fi ttings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fi ttings may be supplied than are required. 50mm Screw x 14 39mm Locking pin x 20 30mm Dowel x 6 15mm Locking nut x 20...
  • Page 5 Assembly Instructions Step 1 Attaching hinges Use Screws to fix the Door hinges ‘back plates’ onto the Right side panel and Left side panel Note: Only two screws (not four) are fitted to the door hinge back plate. Screw Locking pins into the Right side panel and Left side panel Insert Locking pins...
  • Page 6 Assembly Instructions Step 2 Attaching bottom and middle panel Use Screws to fix Plastic supports onto the Front panel Be sure the edges Note: of the Plastic supports even with the edges of the Front panel Use Screws to fix the Front panel onto the Bottom panel...
  • Page 7 Assembly Instructions Step 2 - continued Use Screws to fix the Middle support onto the Middle panel Unfinished back edge Use Screws to fix the Right support Left support onto the Unfinished back edge Shelf panel Insert Dowels into the Right support and Left support...
  • Page 8 Assembly Instructions Step 2 - continued Carefully locate the Middle panel onto the unit. Insert 4 Locking nuts into the unit. Use a screwdriver to turn Locking nuts clockwise to lock. Use Screws to fix Bottom panel onto the unit.
  • Page 9 Assembly Instructions Step 3 Attaching right and left side panel Carefully locate the Left side panel onto the unit. Insert 4 Locking nuts into the unit. Use a screwdriver to turn Locking nuts clockwise to lock. Carefully locate the Right side panel onto the unit.
  • Page 10 Assembly Instructions Step 4 Attaching back panel Unfinished back surface Insert Dowels into the Back panel Use Screws to fix the Back panel onto the Middle panel Bottom panel With help, carefully stand the unit upright. Warning: The unit is heavy. Finished front surface Lift with care.
  • Page 11 Assembly Instructions Step 5 Attaching top panel Screw Locking pins into the Top panel Insert Locking pins Note: as far as shown. Do not over tighten. Carefully locate the Top panel onto the unit. Insert 8 Locking nuts into the unit. Use a screwdriver to turn Locking nuts clockwise...
  • Page 12 Assembly Instructions Step 6 Attaching hinges to doors Fix 4 Door hinges Left door panel Right door panel using Screws Tear off the protective backing from the Door Pads Carefully stick the Door pads onto the Left door panel and Right door panel Step 7 Hanging doors...
  • Page 13 Assembly Instructions Step 8 Finishing the unit It would be useful Note: to ask someone to help you at this stage. With help, place the unit in the intended position.
  • Page 14 Assembly is complete. If you need help or have damaged or missing parts, call the Customer Helpline: Argos = 0345 6400800 Produced in Indonesia for Argos Limited, 489-499 Avebury Boulevard, Milton Keynes, MK9 2NW www.argos.co.uk...

This manual is also suitable for:

724/3932724/8841
