Summary of Contents for Argos 760/9253

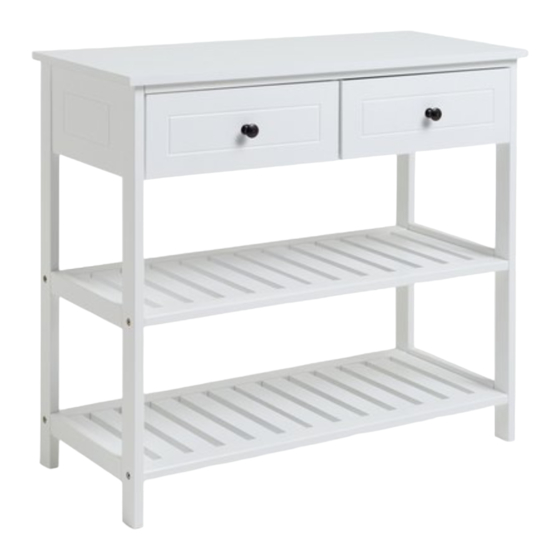

- Page 1 HM White Console 2 Drawer Shelf 760/9253 80cm 34cm 75cm Issue 1 - 09/28/17...
- Page 3 Components - Panels If you have damaged or missing components, call the Customer Helpline:03456 400800 Please check you have all the panels listed below Top panel Left side panel Right side panel Front rail Shelf x 2 Back panel Right drawer front Clapboard panel Bottom rail 11 Drawer left side x 2...
-
Page 4: Tools Required
Components - Fittings Please check you have all the fittings listed below Note:The quantities below are the correct amount to complete the assembly .In some cases more Wooden dowel x 8 Locking Nut x 24 Locking Pin x 24 50mm Bolt x 8 Nut x 8 Runner x 4 Knob x 2... - Page 5 Assembly Instructions Step 1 Screw Fix part Assembling runner NOTE: It would be useful to ask Front Slide part someone to help you at this stage. use 6 x screw to fix 2 x runner on clapboard panel Front Front Insert 2 x wooden dowel into clapboard panel .
- Page 6 Assembly Instructions Step 2 Assembling back panel NOTE: It would be useful to ask someone to help you at this stage. Screw 2 x locking pin into back panel and bottom rail Insert 2 x wooden dowel into bottom rail as shown . Attach back panel and bottom rail...
- Page 7 Assembly Instructions Step 3 Assembling side panel NOTE: It would be useful to ask someone to help you at this stage. Attach left side panel and right side panel onto the unit as shown. Insert 6 x locking nut into bottom rail ,back panel and tighten the locking nut to secure the unit.
- Page 8 Assembly Instructions Step 5 Assembling top panel NOTE: It would be useful to ask someone to help you at this stage. Screw 8 x locking pin into top panel Use 2 x screw to fix front rail to top panel. Carefully attach top panel the unit.
- Page 9 Assembly Instructions Step 7 Assembling drawer 3 12 3 13 Use 4 x screw to fix drawer side panel onto drawer back 11 12 panel 3 11 Carefully slide bottom panel into grooves. 3 14 Screw 4 x locking pin into left drawer front ,insert 4 x locking...
- Page 10 After above assembly, please double check and make sure all screws are firmly fixed before use. NOTE:If you have damaged or missing components, call the Customer Helpline:03456 400800 Argos LTD,489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW...
-
Page 11: A Guide To - Wall Mounting & Fixings
A Guide to - Wall Mounting & Fixings Important: When drilling into walls always Important note: check that there are no hidden wires or pipes etc. If plastic wall plugs Make sure that the screws and wall plugs being used are supplied with your are suitable for supporting your unit.
