Antique midsleeper chest+desk combi
Assembly Instructions
7587430
- Please keep for future reference
Dimensions
Length - 82,5/96cm
Depth - 37/60cm
Height - 72/74,6cm
Weight - 29,5kg
Important
– Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline:
0045 7668 8055 or e-mail: order@fl exa.dk
Issue 1 - 19/11/14
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Argos Antique 7587430
Summary of Contents for Argos Antique 7587430

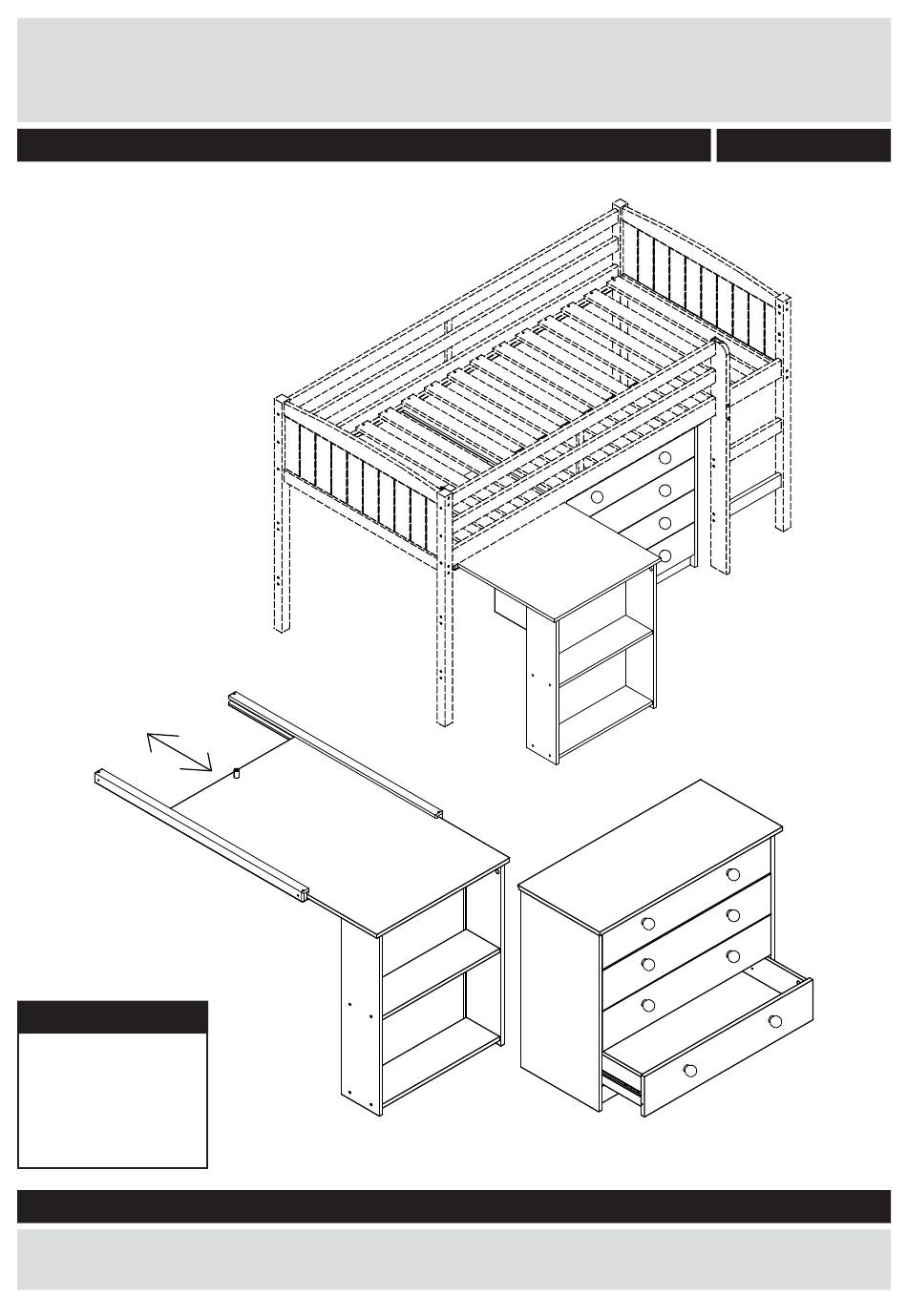

- Page 1 Antique midsleeper chest+desk combi Assembly Instructions 7587430 - Please keep for future reference Dimensions Length - 82,5/96cm Depth - 37/60cm Height - 72/74,6cm Weight - 29,5kg Important – Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 0045 7668 8055 or e-mail: order@fl...
- Page 2 Safety and Care Advice Important – Please read these instructions fully before starting assembly • We do not • Check you have all the • Do not stand or put weight on recommend the components and tools listed on the product, this could cause use of power pages 2 and 3.
-
Page 3: Components - Parts
If you have damaged or missing components, Components - Parts call the Customer Helpline: 0045 7668 8055 Please check you have all the parts listed below Side panel Left x1 Side panel Right x1 Drawer side left x4 (33x11.5x1.3cm) (70.6x35x1.5cm) (70.6x35x1.5cm) No. - Page 4 Components - Fittings Please check you have all the fi ttings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fi ttings may be supplied than are required. No. 4020-005 No. 3933-15010 No.
- Page 5 Assembly Instructions Step 1 Attach the dowels the plinth and the side panels It may be necessary to tap the dowels in very gently with a small hammer. Attach minifi x bolts side panels Left side Right side Step 2 Attach the drawer runners to the side...
- Page 6 Assembly Instructions Step 3 Attach the plinths the side panels with the minifi x cams Step 4 Attach minifi x bolts the top...
- Page 7 Assembly Instructions Step 5 Attach the top to the side panels with the minifi x cams Step 6 Attach the back panel with nails to the back side of the chest. Nail the back panel to the carcass, ensuring that there are NO GAPS between the left hand side and the back panel , NOR between the...
- Page 8 Assembly Instructions Step 7 Attach the knobs the drawer front with chipboard screws Attach the minifi x bolts to the drawer front Repeat for all four drawer fronts. Step 8 Attach the drawer sides to the drawer front with the minifi x cams Repeat for all four drawers.
- Page 9 Assembly Instructions Step 10 Attach the drawer to the drawer runners with the euro screws inside to the drawer sides Repeat for all four drawers. The height/distance between the drawer fronts, can be slightly adjusted by loosening 4 minifi x cams inside the drawer.
- Page 10 If you have damaged or missing components, Components - Parts call the Customer Helpline: 0045 7668 8055 Please check you have all the parts listed below Side panel right x1 Back panel x1 Side panel left x1 (69.0x54.6x0.3cm) (70.9x17.0x1.5cm) (70.9x17.0x1.5cm) No.
- Page 11 Components - Fittings Please check you have all the fi ttings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fi ttings may be supplied than are required. No. 4020-005 No. 3933-15010 No.
- Page 12 Assembly Instructions Step 11 Attach the support rails to the table top with screws Attach the minifi x bolts to the table top Step 12 Attach the dowels the side panels by tapping carefully. Step 13 Attach the bases the sidepanels with the screws...
- Page 13 Assembly Instructions Step 14 Attach the table top the shelf side panels with the minifi x cams Step 15 Attach the back panel to the base and to the support rail with nails Step 16 Attach the castors to the base with the screws...
- Page 14 Assembly Instructions Step 17 Attach the guide list under the bedside into the legs with the screws Step 18 Attach the table top the guide list Attach the other guide list to the bedsides with the screws Attach the spacer the table top with the screw...
