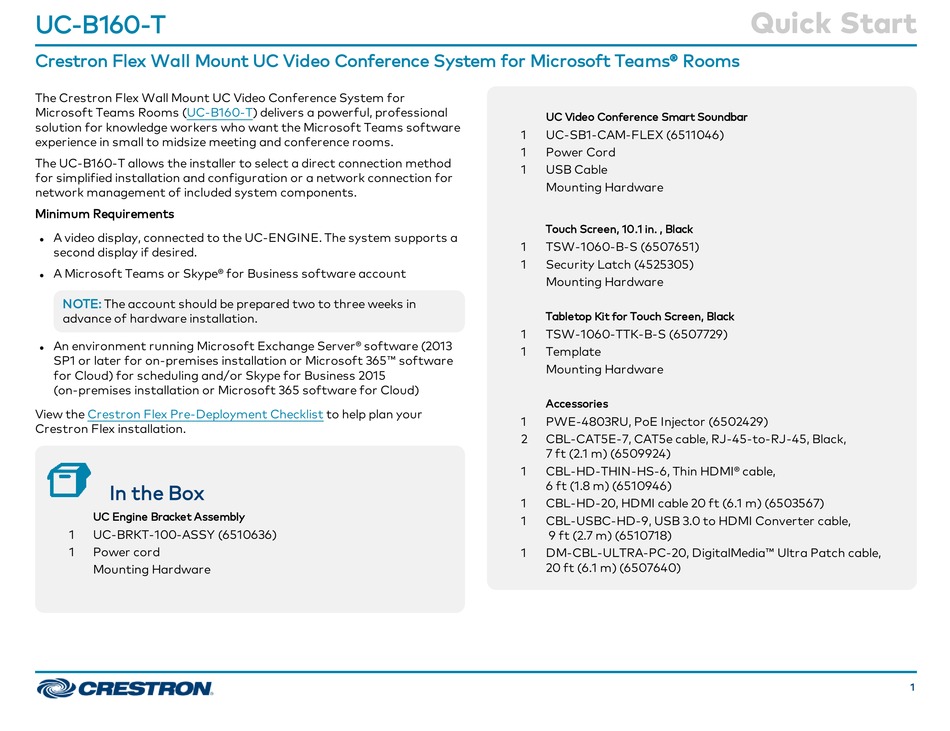

UC-B160-T
Crestron Flex Wall Mount UC Video Conference System for Microsoft Teams® Rooms
The Crestron Flex Wall Mount UC Video Conference System for
Microsoft Teams Rooms (UC-B160-T) delivers a powerful, professional
solution for knowledge workers who want the Microsoft Teams software
experience in small to midsize meeting and conference rooms.
The UC-B160-T allows the installer to select a direct connection method
for simplified installation and configuration or a network connection for
network management of included system components.
Minimum Requirements
A video display, connected to the UC-ENGINE. The system supports a
l
second display if desired.
A Microsoft Teams or Skype® for Business software account
l
NOTE:
The account should be prepared two to three weeks in
advance of hardware installation.
An environment running Microsoft Exchange Server® software (2013
l
SP1 or later for on-premises installation or Microsoft 365™ software
for Cloud) for scheduling and/or Skype for Business 2015
(on-premises installation or Microsoft 365 software for Cloud)
View the
Crestron Flex Pre-Deployment Checklist
Crestron Flex installation.
In the Box
UC Engine Bracket Assembly
1
UC-BRKT-100-ASSY (6510636)
1
Power cord
Mounting Hardware
to help plan your

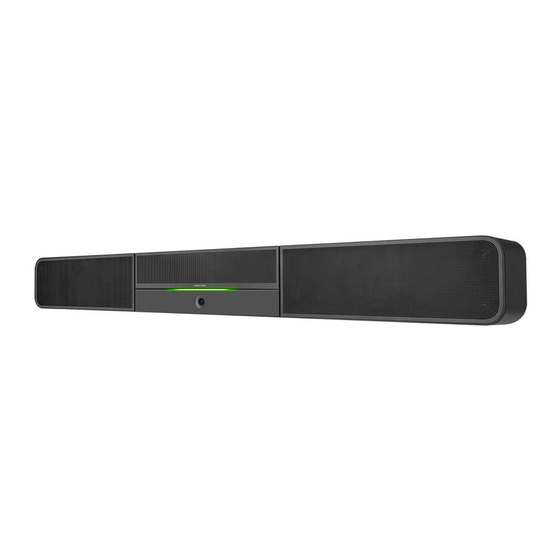

UC Video Conference Smart Soundbar
1
UC-SB1-CAM-FLEX (6511046)
1
Power Cord
1
USB Cable
Mounting Hardware
Touch Screen, 10.1 in. , Black
1
TSW-1060-B-S (6507651)
1
Security Latch (4525305)
Mounting Hardware
Tabletop Kit for Touch Screen, Black
1
TSW-1060-TTK-B-S (6507729)
1
Template
Mounting Hardware
Accessories
1
PWE-4803RU, PoE Injector (6502429)
2
CBL-CAT5E-7, CAT5e cable, RJ-45-to-RJ-45, Black,
7 ft (2.1 m) (6509924)
1
CBL-HD-THIN-HS-6, Thin HDMI® cable,
6 ft (1.8 m) (6510946)
1
CBL-HD-20, HDMI cable 20 ft (6.1 m) (6503567)
1
CBL-USBC-HD-9, USB 3.0 to HDMI Converter cable,
9 ft (2.7 m) (6510718)
1
DM-CBL-ULTRA-PC-20, DigitalMedia™ Ultra Patch cable,
20 ft (6.1 m) (6507640)
Quick Start
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UC-B160-T and is the answer not in the manual?

Questions and answers

Related Manuals for Crestron UC-B160-T

Summary of Contents for Crestron UC-B160-T

  • Page 1 Quick Start UC-B160-T Crestron Flex Wall Mount UC Video Conference System for Microsoft Teams® Rooms The Crestron Flex Wall Mount UC Video Conference System for Microsoft Teams Rooms (UC-B160-T) delivers a powerful, professional UC Video Conference Smart Soundbar solution for knowledge workers who want the Microsoft Teams software UC-SB1-CAM-FLEX (6511046) experience in small to midsize meeting and conference rooms.
  • Page 2 Quick Start UC-B160-T Crestron Flex Wall Mount UC Video Conference System for Microsoft Teams® Rooms Overview The following diagram illustrates standard system connections. Two optional connection methods are available — direct or network connection. Both the direct connection and network connection methods are shown below to help determine the appropriate method for your solution. The room display(s) and laptop are not included with this solution.
  • Page 3 Quick Start UC-B160-T Crestron Flex Wall Mount UC Video Conference System for Microsoft Teams® Rooms 2. Make connections to the TSW-1060-B-S touch screen and UC-BRKT-100-ASSY bracket assembly as shown in the following Connect illustrations. The TSW-1060-B-S touch screen can communicate with the 1.
  • Page 4 For simplified installation and configuration, use a direct Ethernet connection between the TSW-1060-B-S touch screen's PWE-4803-RU PoE injector and the USB-to-RJ-45 Ethernet Adapter on the bottom of the UC-ENGINE. NOTE: Direct Connection does not allow Crestron XiO Cloud management of the TSW-1060-B-S. A network connection must be made as shown on the following page.
  • Page 5 Crestron Flex Wall Mount UC Video Conference System for Microsoft Teams® Rooms Network Connection Use the network connection for full network control of the TSW-1060-B-S touch screen with the Crestron XiO Cloud service. The LAN port on the TSW-1060-B-S touch screen's PoE injector connects to the UC-ENGINE over the VLAN.
  • Page 6 Quick Start UC-B160-T Crestron Flex Wall Mount UC Video Conference System for Microsoft Teams® Rooms 3. Connect the display devices to the UC-ENGINE as shown below.

  • Page 7: Complete The Installation

    Quick Start UC-B160-T Crestron Flex Wall Mount UC Video Conference System for Microsoft Teams® Rooms 4. Bundle the cables with the integrated cable tie wraps. The cable tie wraps are reusable. Complete the Installation After completing UC-ENGINE connections, secure the connector covers using a #1 Phillips head screwdriver to replace the screws.

  • Page 8: Apply Power

    Quick Start UC-B160-T Crestron Flex Wall Mount UC Video Conference System for Microsoft Teams® Rooms 4. Enter the following information in the appropriate fields: Teams Video PC Address: Enter the IP address or hostname of Configure the UC-ENGINE. NOTE: The hostname is printed on a label affixed to the...

  • Page 9: Additional Information

    Service Providers (CSPs) under a limited nonexclusive, nontransferable Software Development Tools License Agreement. Crestron product operating system software is licensed to Crestron dealers, CSPs, and end-users under a separate End-User License Agreement. Both of these Agreements can be found on the Crestron website at www.crestron.com/legal/software_license_agreement. www.crestron.com/model/6510518 The product warranty can be found at www.crestron.com/warranty.
