1. Fasten spacers onto metal pems configuration (A) of backplane (Fig. 2, pg. 3).
2. Position SALTO modules over corresponding spacers and mount them utilizing pan head screws (provided) (Fig. 2a, pg. 3).
3. Mount backplane to enclosure with hardware.
Access Controller Position Chart for the Following Models:
SALTO Access Controller
CU42E0, CU4200 or CU4EB8

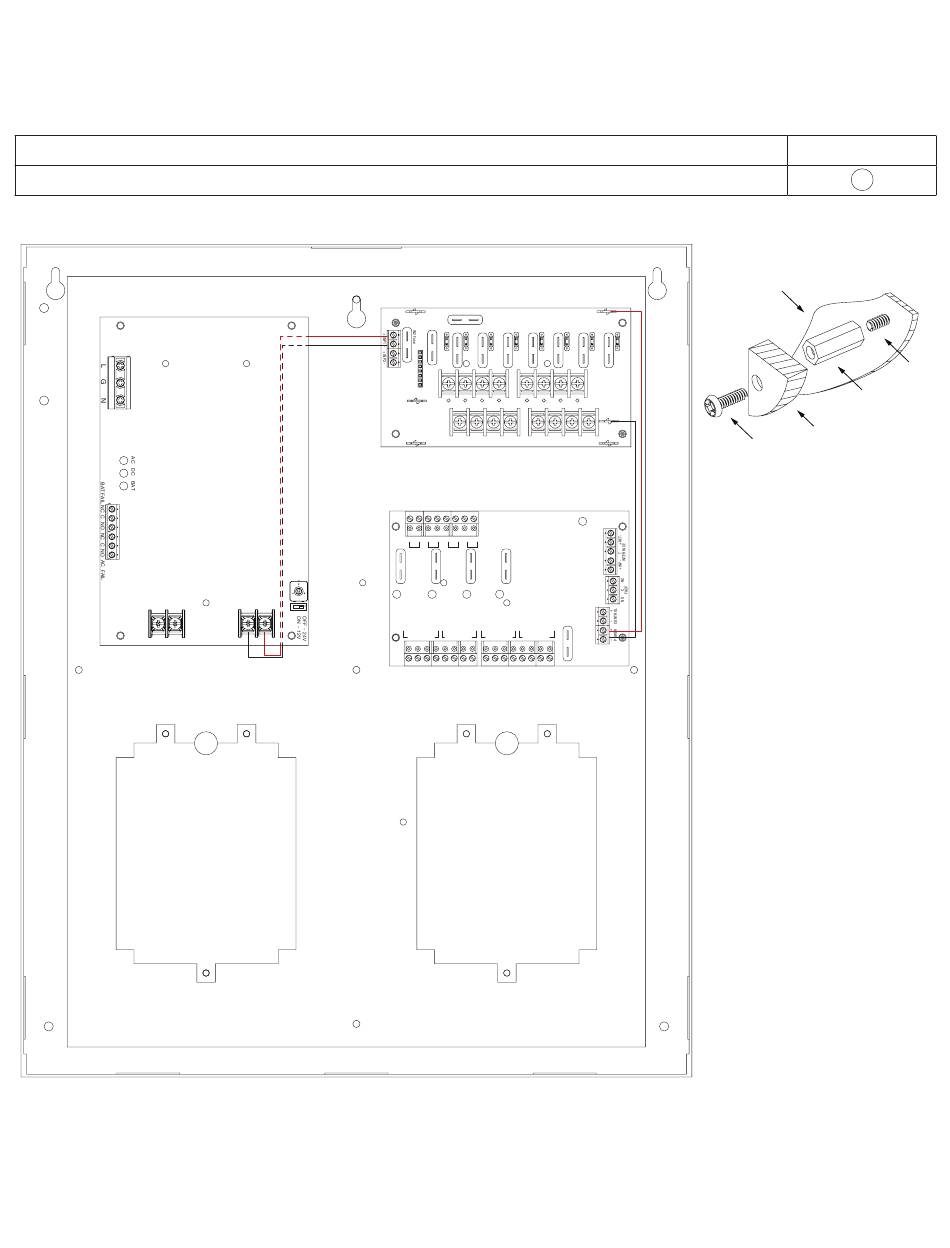

Fig. 2
Altronix
AL600ULXB
+BAT-
Trove SALTO ULXB Kits Installation Guide
T1SAK34: Configuration of SALTO Modules:
+ DC -
A
Altronix - PDS8
PWR1+ IN1 Fuse
Fuse1
Fuse2 Fuse3 Fuse4 Fuse5 Fuse6
P
OUT1 OUT2 OUT3 OUT4 OUT5 OUT6 OUT7
COM (-)
N
PWR2+
1 2 3 4 5 6
Common Power Outputs (NEG)
Altronix VR6 is mounted under PDS8
TRIGGER
INPUT
IN GND IN GND IN GND IN GND
1 2 3 4
LED1 LED2 LED3 LED4
Altronix - ACM4
MAIN
NC C NO COM NC C NO COM NC C NO COM NC C NO COM
OUTPUT 1 OUTPUT 2 OUTPUT 3 OUTPUT 4
A
Backplane
PWR1+
Fuse7 Fuse8
P
OUT8
N
COM (-)
PWR2+
7 8
TRG
Pem Mounting
A
Fig. 2a
Pem
Spacer
HS4 Module
Pan Head Screw
